- Hydrocarbon Oil Service
- Peak Pumping Speed: 25.9 cfm
- Ultimate Pressure: 1 x 10-3 Torr.
- Like New / 12-Months Warranty
Shopping Cart ( )

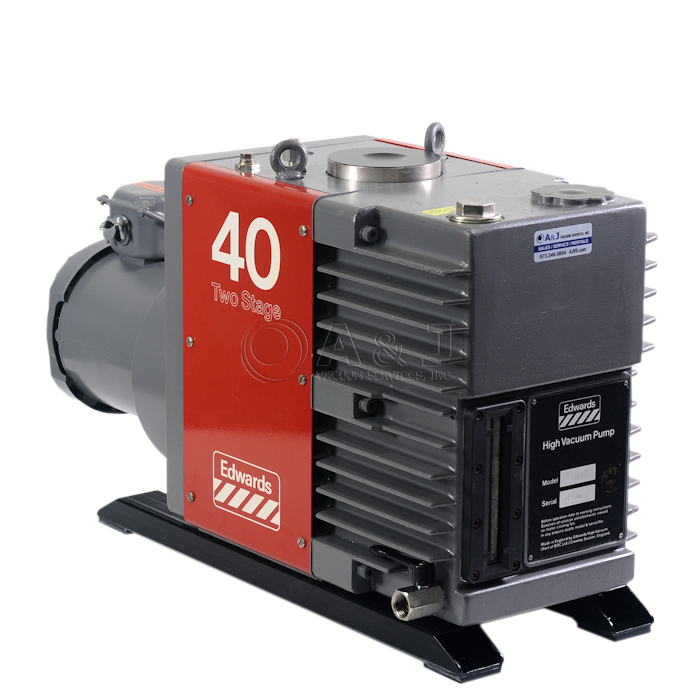

Edwards E2M40 Vacuum Pump, Dual Stage Rotary Vane, Hydrocarbon Oil, ISO40 Inlet Flange, NW25 Outlet Flange, 3 Phase 208-230 / 460 VAC, A36404940
Condition:
Remanufactured
Call us for Availability
Item#:PN18208
Mfr Part#:A36404940
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Fully Refurbished Edwards E2M40 Vacuum Pump Dual Stage Rotary Vane Pump coupled with a ISO 40 Inlet Flange and NW40 Outlet Flange.
Edwards E2M40 Overview:
This Edwards Rotary Vane Pump has a peak pumping velocity of 25.9 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Edwards E2M40 Pump comes with an entire 6-Month Warranty.
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.
Edwards E2M40 Features:
- Gas analyzers
- Leak detection
- Mass spectrometers
- Other spectrometers
- Electron microscopes
- Surface analyzers
- Centrifuges
- Sterilization
- Electron tubes
- Lamps
- TV tubes (CRT)
- Refrigeration
- Air conditioning
- Drying
- Distillation
- Metallurgy
- Free drying
- CVD.LPCVD
- Ion implantation
- Dry etching
- Load-lock
- Cryogenics
- Gas recovery
- Oxygen pumping

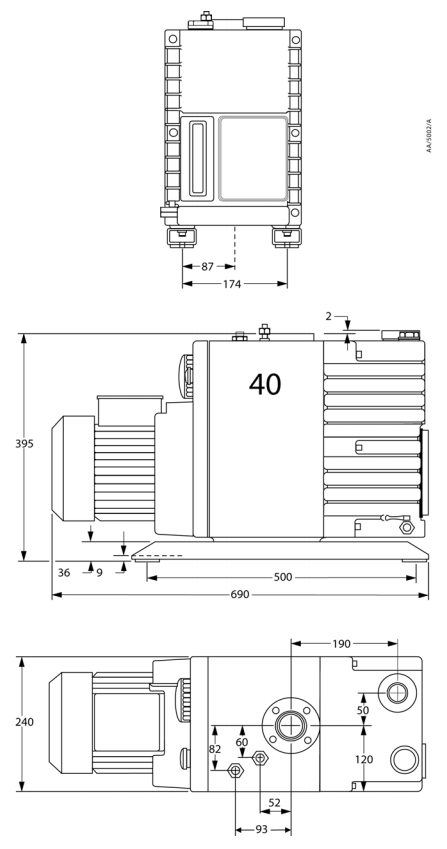

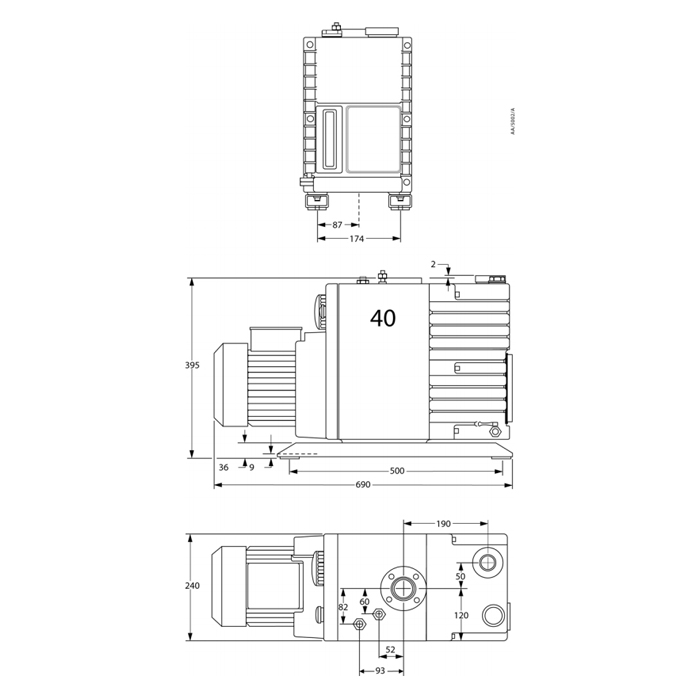

Edwards E2M40 Dimensions:
Click Here for Edwards E2M40 and E2M80 Manual
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Fully Refurbished Edwards E2M40 Vacuum Pump Dual Stage Rotary Vane Pump coupled with a ISO 40 Inlet Flange and NW40 Outlet Flange.

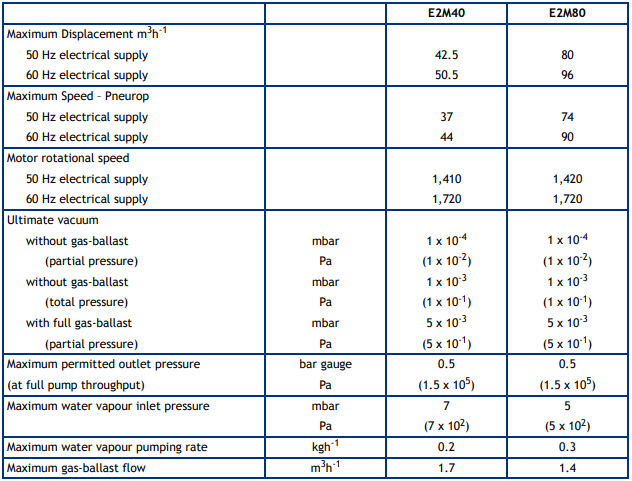

Edwards E2M40 Technical Data:
Click Here for Edwards E2M40 and E2M80 Manual
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
