- Rated flow 60m3 h-1
- Maximum back pressure 0.2 bar gauge
- Mass complete 500 g
- Flange size NW25
Shopping Cart ( )

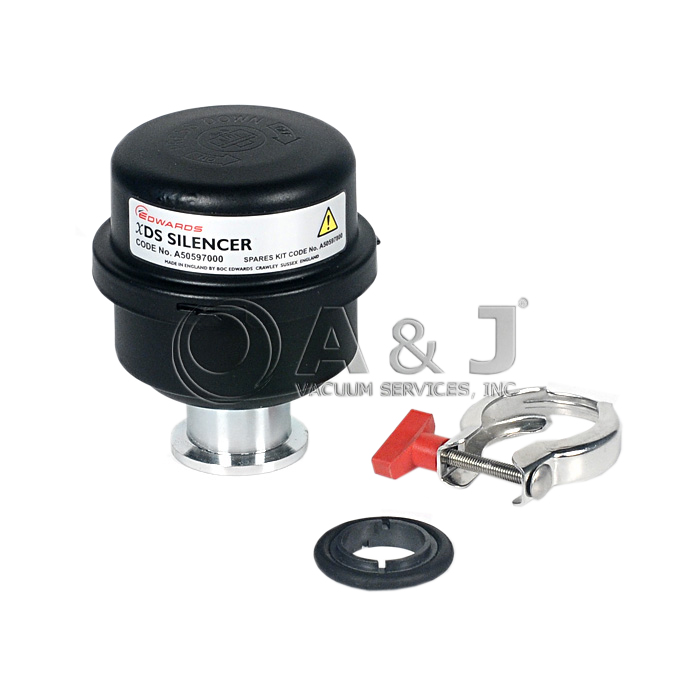

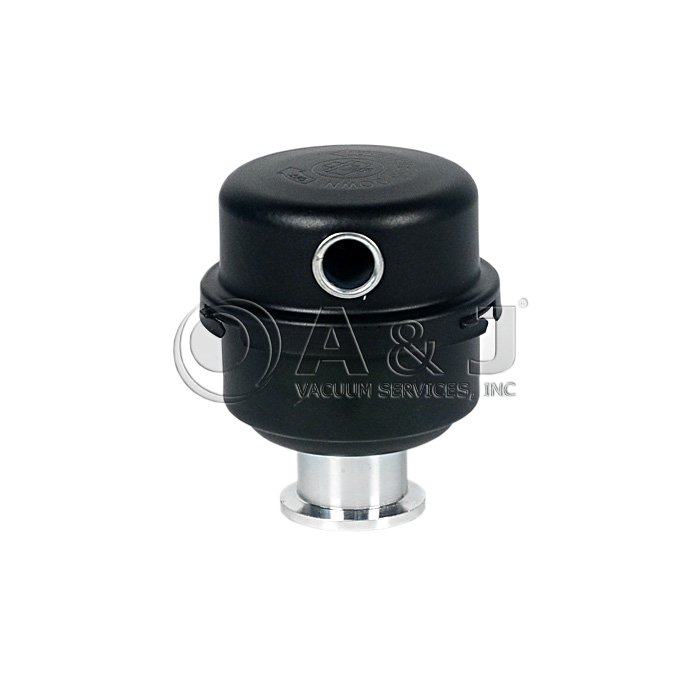

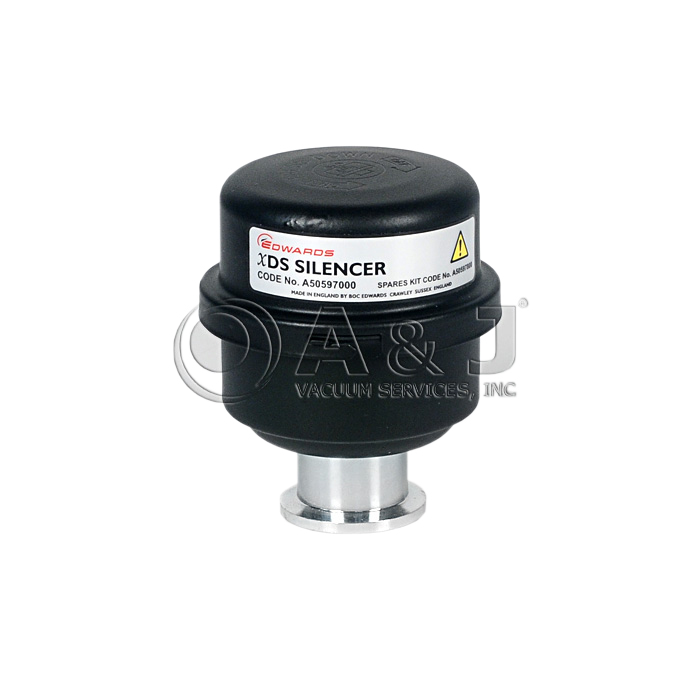

Edwards Exhaust Silencer for XDS35i Dry Scroll Pump, A50597001
Condition:
New
Item#:PN17681
Mfr Part#:A50597001
Manufacturer:Edwards Vacuum
Features:
Edwards Exhaust Silencer for XDS35i Dry Scroll Pump, A50597001
Edwards Silencer for XDS35i Overview:
The XDS silencer has two main functions.
- To reduce exhaust noise during pump down and gas ballast operation.
- To collect and retain tip seal dust as the pump is operated.
Exhaust gases exit the exhaust port when the pump is being used to evacuate a process chamber, or when the gas ballast control is being used, or both. The noise level when pumping down rises as the throughput increases and the silencer is used to reduce this noise level.
The outer can is made of pressed steel and is split to allow access to the filter elements. The filter element housing is made from Santoprene® thermoplastic elastomer. The element itself is polyester. The foam block is manufactured from filter foam.
Edwards Silencer for XDS35i Features:
- Compact design combines both filtration efficiency and noise reduction
- Integrated inlet diffuser optimizes sound attenuation
- Multi-stage noise reducing features including final stage sound absorbent insert
- Tubular silencing design - tube is positions to maximize attenuation and air flow while minimizing pressure drop
- Patented high grade element with built-in butterfly gasket seal which creates positive seal between housing hemispheres and a new seal with each element
- Seamless drawn housings - no welds to rust or vibrate apart
- Durable carbon steel construction with black powder coated finish
- Ability to mount vertically or horizontally
Edwards Silencer for XDS35i Applications:
- Dry Scroll, Piston, Vane and Venturi Vacuum Pumps
- Prevent tip seal dust and debris from contaminating the environment
- Silence irritating pump exhaust noise
Edwards Silencer for XDS35i Dimensions:
Click Here for Edwards XDS35i Manual
A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Edwards Exhaust Silencer for XDS35i Dry Scroll Pump, A50597001
Edwards Silencer for XDS35i Technical Data:
| Ambient temperature range (operation) | +10 ºC to +40 ºC |
| Ambient temperature range (storage) | -30 ºC to +70 ºC |
| Rated flow | 60m3 h-1 |
| Maximum back pressure | 0.2 bar gauge |
| Tip seal dust | Pump performance and silencer performance unaffected providing elements serviced in accordance with recommendations. |
| Mass complete | 500 g |
| Flange size | NW25 |
Click Here for Edwards XDS35i Manual
A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
