- Pumping Speed 20.6 CFM
- Ultimate Vacuum: 1 x 10-2 mbar / 8 x 10-3 Torr
- Inlet Flange: NW 40
- Exhaust Flange: NW 25
Shopping Cart ( )
Edwards XDS 35i Dry Vacuum Pump, 20.6 CFM with an IEC60320 Connector, 100-120 V / 200-230 V, Single Phase, 50/60 Hz, A73001983
Condition:
New
Item#:PN18729
Mfr Part#:A73001983
Manufacturer:Edwards Vacuum
Features:
Edwards XDS 35i Dry Vacuum Pump, 20.6 CFM with an IEC60320 Connector, 100-120 V / 200-230 V, Single Phase, 50/60 Hz, A73001983
Edwards XDS 35i Features:
- Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
- No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
- Simple single sided scroll design means routine maintenance is done in minutes for low cost of ownership and maximum up-time
- No oil changes required eliminating costs of contaminated oil disposal
- Inverter drive for consistent pumping speed at 50/60 Hz

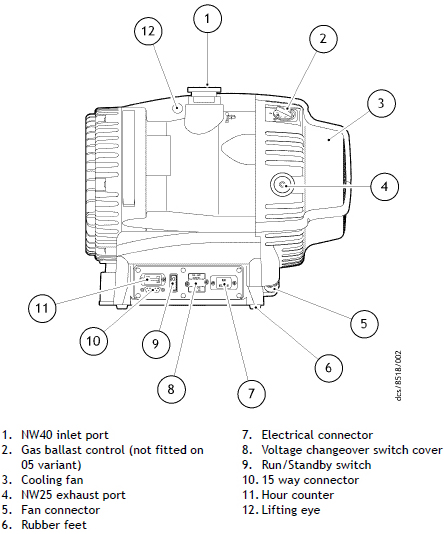

XDS 35i / A73001983 Overview:
The Edwards XDS35i pump has an innovative bearing shield design that isolates the vacuum environment from all forms of lubricant, not only making it totally dry but hermetically sealed.
The Edwards XDS-35i shield also protects the bearing from any process vapors. XDS 35i gas ballast allows vapor to be handled and opens up the range of applications to many that were previously unsuited to scroll pumps. The inverter drive controls the motor characteristics and ensures the pump always runs at optimum speed.
Edwards XDS35i pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS35i pumps are designed to be completely field serviceable.
Power cable sold separately.
A&J Vacuum also repair / rebuild and service all Edwards XDS5, XDS10, nXDS35i Scroll Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry 35i Pumps, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Edwards XDS 35i Dry Vacuum Pump, 20.6 CFM with an IEC60320 Connector, 100-120 V / 200-230 V, Single Phase, 50/60 Hz, A73001983
Edwards XDS 35i Technical Data:
| Connection Inlet Flange | DN 40 ISO-KF (NW40) |
| Weight | 48.00 kg | 106 lb |
| Connection Outlet Flange | DN 25 ISO-KF (NW25) |
| Leak Rate | 1.000 × 10⁻⁷ Pa·m³/s |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 100-120/200-230V 50/60Hz |

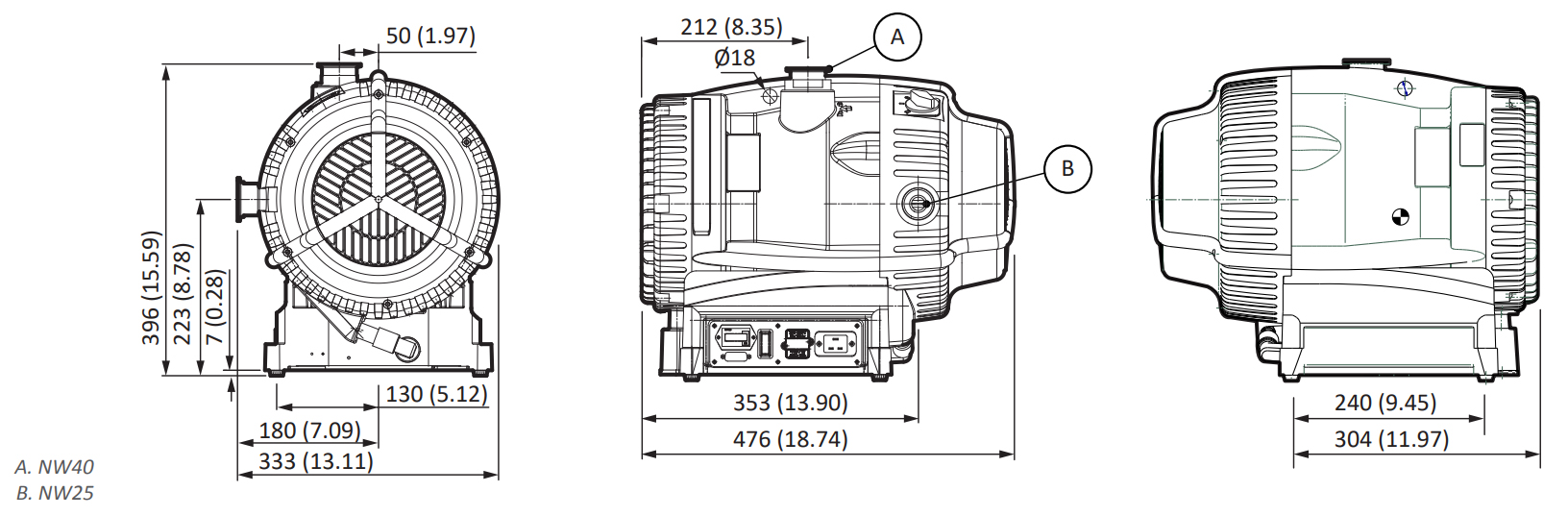

| Dimension Length | 476.00 mm | 18.74 in |
| IP Rating | IP44 |
| Power Supply Frequency | 50 Hz 60 Hz |
| Dimension Height | 396.00 mm | 15.59 in |
| Dimension Width | 333.00 mm | 13.11 in |
| Connector Electrical Power | IEC EN60320 C20 - Male (for C19 plug on mains cable) |
| Noise / Sound Level | 57.00 db(A) |
| Cooling Method | Air Cooling (forced - fan) |
| Vibration Level Velocity (rms) | 4.500 × 10⁻³ m/s |
| Certification of Product | CE UL (61010-1 3rd Edition) CSA (C22.2 No.61010-1-12) |
| Connection Inlet / Outlet Flange | DN 40 ISO-KF (NW40) / DN 25 ISO-KF (NW25) |
| Accessories / Scope of Supply | This product does not include the correct local mains power cable. Has to be additionally selected from the list of suitable accessories. |
| Certification Motor | CSA (C22.2 No.61010-1-12) |
| Power Total Rated | 520.00 W |

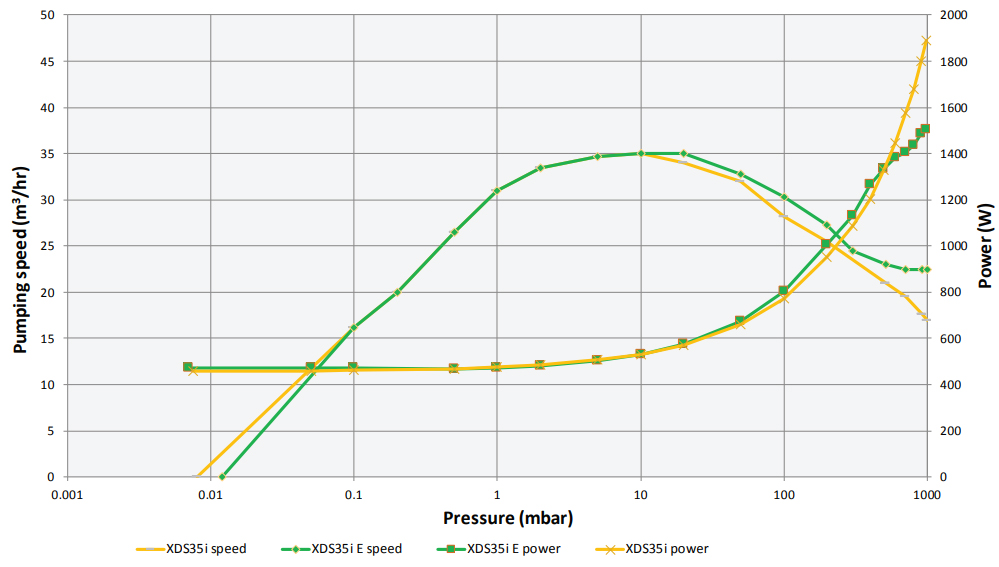

| Pumping Speed Air Nitrogen 60Hz | 9.722 × 10⁻³ m³/s |
| Pumping Speed Air Nitrogen 50Hz | 9.722 × 10⁻³ m³/s |
| Pressure Water Vapour Max | 3500.00 Pa |
| Capacity Water Vapour | 6.111 × 10⁻⁵ kg/s |
| Pressure Ultimate With Gas Ballast | 1000.00 Pa 1000.00 Pa |
| Pressure Ultimate | 1.00 Pa |
| Nominal rotational speed | 29.17 Hz |
| Power at Atmosphere Continous | 1800.00 W |
| Power at Ultimate | 440.00 W |
| Pumping Speed Air Nitrogen | 9.722 × 10⁻³ m³/s |
| Power at Ultimate With Gas Ballast | 47500.00 W |
| Power at Atmosphere Short Term Max | 1900.00 W |
| Pressure Absolute Inlet Continous Max | 4000.00 Pa |
| Altitude Max | 78740.16 in |
| Pressure Absolute Outlet Continous Max | 1.200 × 10⁵ Pa |
| Temperature Ambient Operation Max | 40.00 °C | 104.00 °F | 313.15 K |
| Temperature Ambient Operation Min | 10.00 °C | 50.00 °F | 283.15 K |
| Temperature Ambient Storage Min | -30.00 °C | -22.00 °F | 243.15 K |
| Temperature Ambient Storage Max | 70.00 °C | 158.00 °F | 343.15 K |
| Material of Construction | Fluorocarbon,nitrile,chemically resistant polymers,nickel,stainless steel and PTFE |
| Material Exposed to Vacuum | Anodised aluminium, cast aluminium, nickel, PTFE, Stainless Steel, fluorocarbon elastomer seals, chemically resistant polymers |
| Material Rotor | Aluminum Anodised |
| Material Stator | Aluminum Anodised |
| Classification Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| Classification High / Medium / Rough Vacuum pump | Medium Vacuum Pump |
| Classification Dry or Wet Pump | Dry |
| Classification Vacuum Pump Technology | Dry Scroll Pump |
| Communication Interfaces Customer | Parallel I/O Display local (hours counter) |
| Connection Electrical Comms Interface Connector | DSUB 15-PIN - Female |
| Variant Scroll Pump | Standard variant |
| Variant Atex Category | Ex II 3 G Ex h IIC T4 Gc X - internal atmospheres only |
