- Pumping Speed: 84 m3h-1 / 49 cfm
- Ultimate Vacuum: 3 x 10-2 mbar
- Motor Power: 2.2 kW
- Outlet Flange: NW 40
Shopping Cart ( )

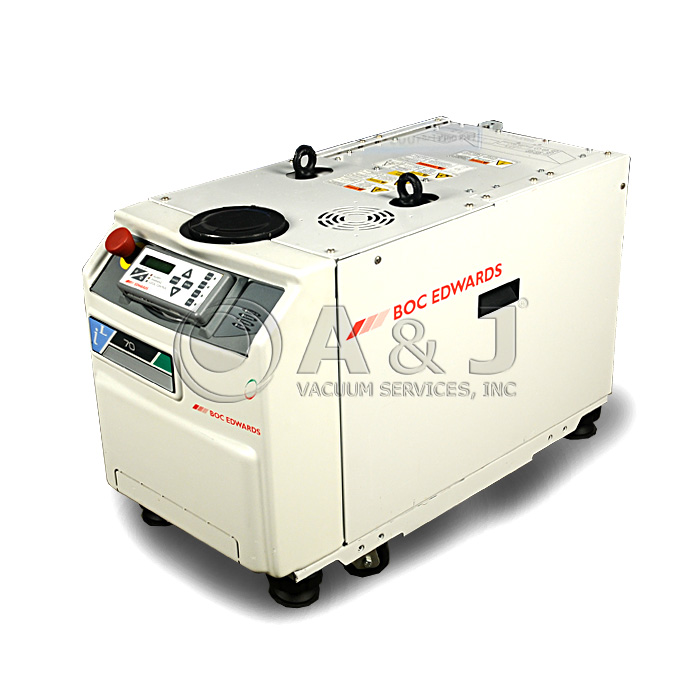

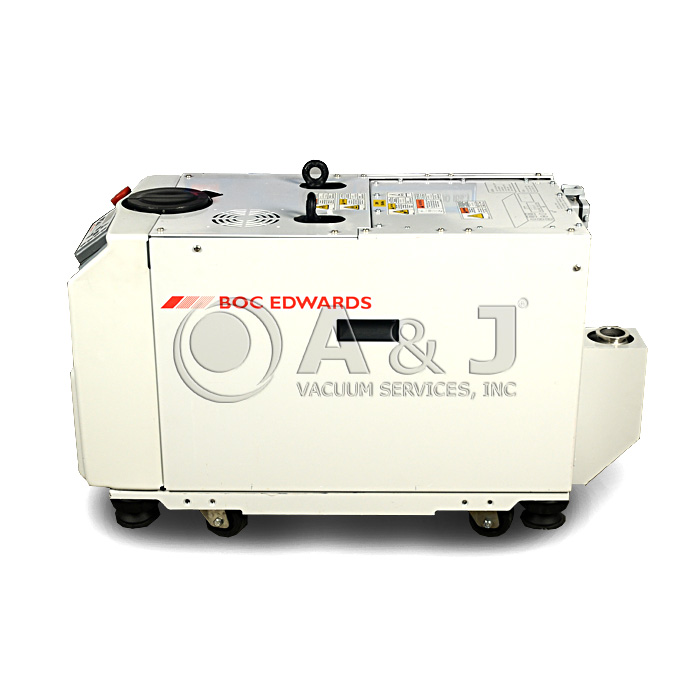

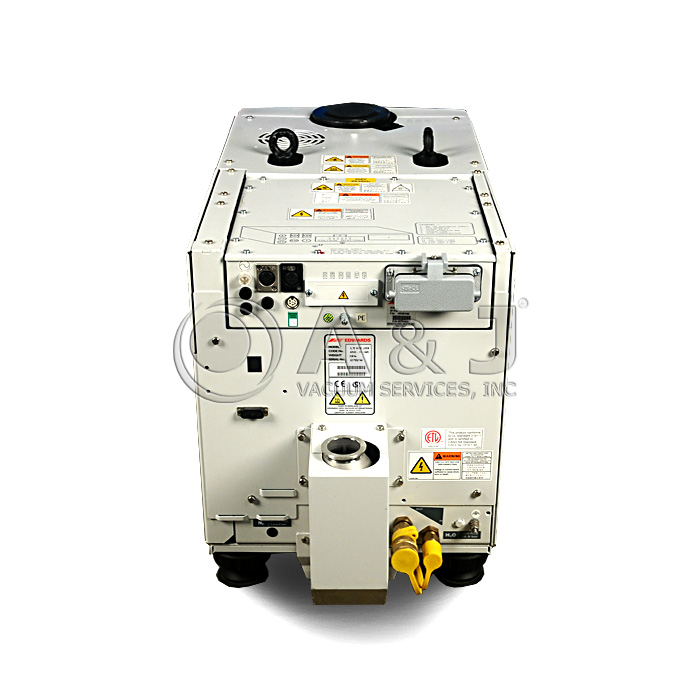

Edwards iL 70 Dry Vacuum Pumping System, 220 V, 50/60 Hz, A533-53-945
Condition:
Remanufactured
In Stock
Item#:PN00253
Mfr Part#:A533-53-945
Manufacturer:Edwards Vacuum
Features:
Edwards Vacuum iL 70 Dry Vacuum Pumping System, 220 V, 50/60 Hz, A53353945
Edwards iL 70 Overview:
The iL system operates at pressures between atmospheric and ultimate vacuum with no lubricating or sealing fluid in the pumping chambers. This ensures a clean pumping system without back-migration of oil into the system being evacuated.
The iL 70 system has an LCDP70 dry pump.
The LCDP70 has enclosed, water-cooled motors. The iL system is therefore suitable for applications in clean environments where fan cooling is unacceptable.
The iL system is designed to operate as a sealed unit, chemicals passing through the pump being contained within the internal volume and separated from the external environment by a mechanical barrier. This barrier is made up of a number of components of different materials, chosen to be resistant to attack by chemicals usually found in clean applications.

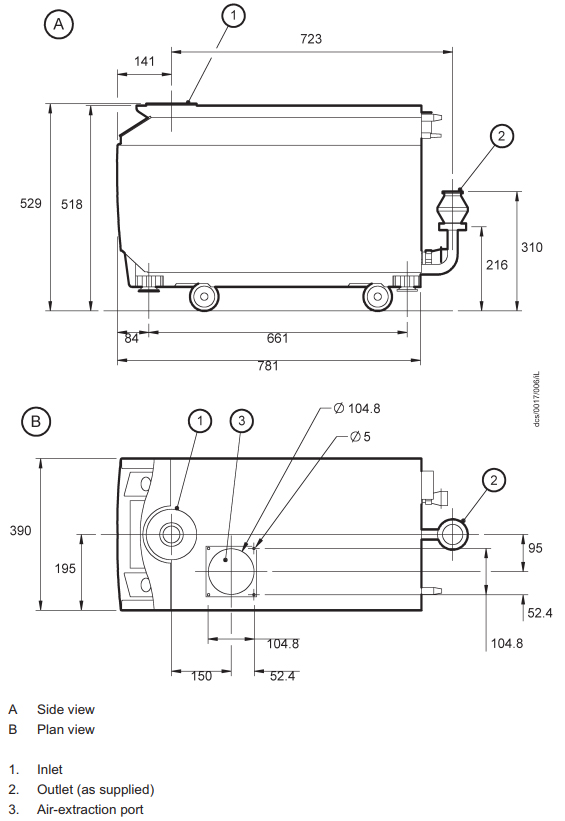

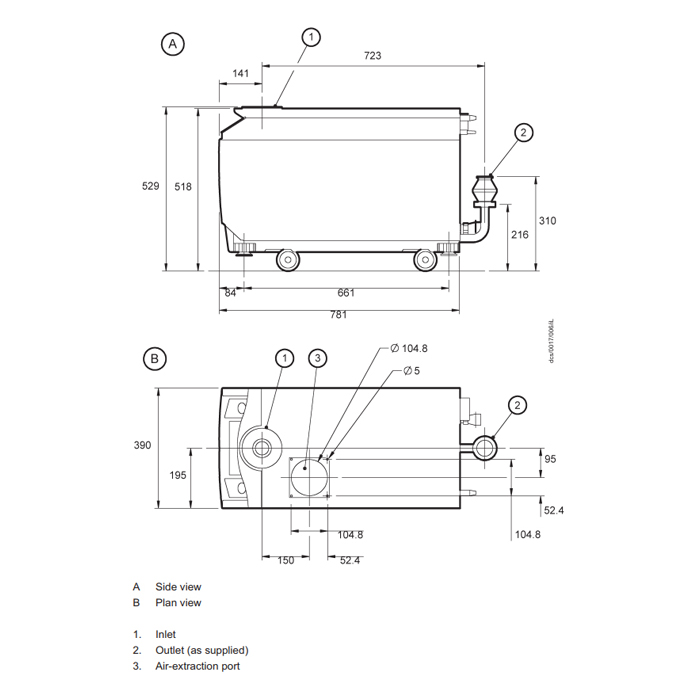

Edwards iL 70 Dimensions:
Click Here for Edwards iL 70 Manual
A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards Vacuum iL 70 Dry Vacuum Pumping System, 220 V, 50/60 Hz, A53353945
Edwards iL 70 Technical Data:
| Pumping Speed: | 84 m3h-1 / 49 cfm |
| Ultimate Vacuum: | 3 x 10-2 mbar |
| Motor Power: | 2.2 kW |
| Inlet Flange: | ISO 63 |
| Outlet Flange: | NW 40 |
| Weight: | 557 lbs |
Click Here for Edwards iL 70 Manual
A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
