- Inlet Flange: NW 16
- Exhaust Flange: 1/8 BSP
- Ultimate Vacuum: 0.001 mbar
- Pumping speed 2 CFM / 3.5 m3h
Shopping Cart ( )
Edwards mXDS3 Dry Scroll Vacuum Pump, 3.5m3h, 2 CFM 115 VAC +/- 10%, Single Phase, 50/60 Hz, A74401906, mXDS 3
Condition:
New
Item#:PN40957
Mfr Part#:A74401906
Manufacturer:Edwards Vacuum
Features:
Edwards mXDS3 Dry Scroll Vacuum Pump, 3.5m3h, 2 CFM 115 VAC +/- 10%, Single Phase, 50/60 Hz, A74401906, mXDS 3
Edwards mXDS 3 / A74401906 Overview:
The Edwards mXDS3 is the new generation small completely oil free, dry scroll pumps.
Edwards mXDS3 improves on legacy nXDS3 series scroll pumps by offering small footprint with great base pressure and pumping speed, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.
Edwards mXDS3 pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally.
Edwards mXDS3 pumps are designed to be integrated system and pumping system.
Edwards mXDS 3 Features:
- Lubricant-free means totally clean and dry vacuum to prevent cross contamination.
- Compact, at only 8 kg it is well suited for integration into OEM and analytical instruments, snall system builder and laboratories.
- Low maintenance, tip seal change when required(typically 2 years)
- Quiet Operation with low low noise level, it makes for better quality working enviroment.
- Classification - Medium Rough Vacuum Pump
- Vacuum Pump Technology - Dry Scroll Pump
Edwards mXDS3 and mXDS3s are clean oil free pumps with no oil to top up, replace or dispose of. They typically have a lower power requirement compared to similar capacity pumps making them great for energy savings, an ideal choice for helping to reduce your carbon footprint. The optimised fan cooling is beneficial in reducing noise for quieter operation and a pleasant working environment.
Mains Cable p/n A50507000, 115 VAC 2M Included
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards mXDS3 Dry Scroll Vacuum Pump, 3.5m3h, 2 CFM 115 VAC +/- 10%, Single Phase, 50/60 Hz, A74401906, mXDS 3
Mains Cable p/n A50507000, 115 VAC 2M Included
Edwards mXDS 3 / A74401906 Technical Data:
|
Inlet Flange: |
NW 16 |
|
Exhaust Flange: |
1/8 BSP |
|
Noise Level: |
54.00 db |
|
Input Voltage: |
115 VAC (60 hz) |
|
Voltage Frequency: |
50/60 Hz |
|

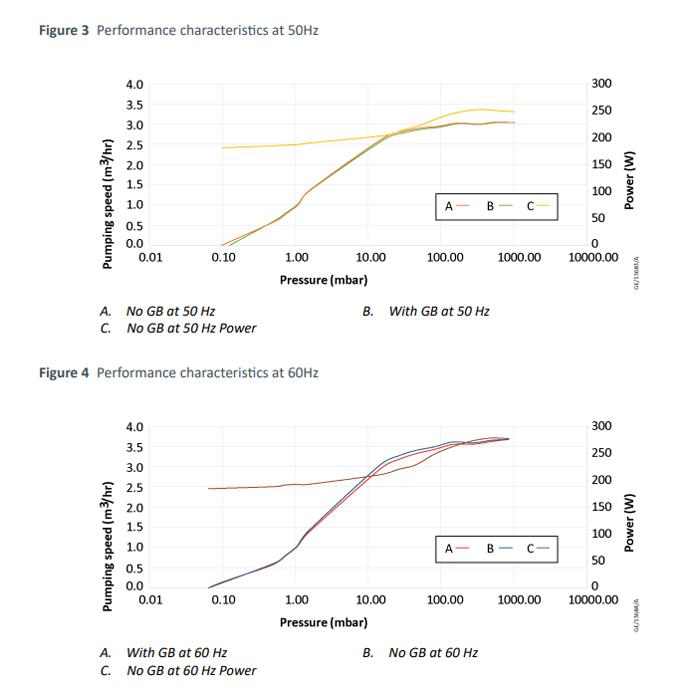

Pumping Speed: |
3.5 m3h-1 |
|
Total Pressure: |
0.001 mbar |
|
Weight: |
7.8 kg |
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS mXDS3, mXDS 3 SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or Click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards mXDS3 Scroll Pump Operating Instructions Manual mXDS 3 Scroll
Edwards mXDS3, MXDS 3 Scroll Pump Data Sheet
Edwards mXDS3 Scroll Pump Flexibility
Edwards mXDS3, mXDS 3 Scroll Pump Presentation
Edwards mXDS 3 Scroll Pump Performance Video
