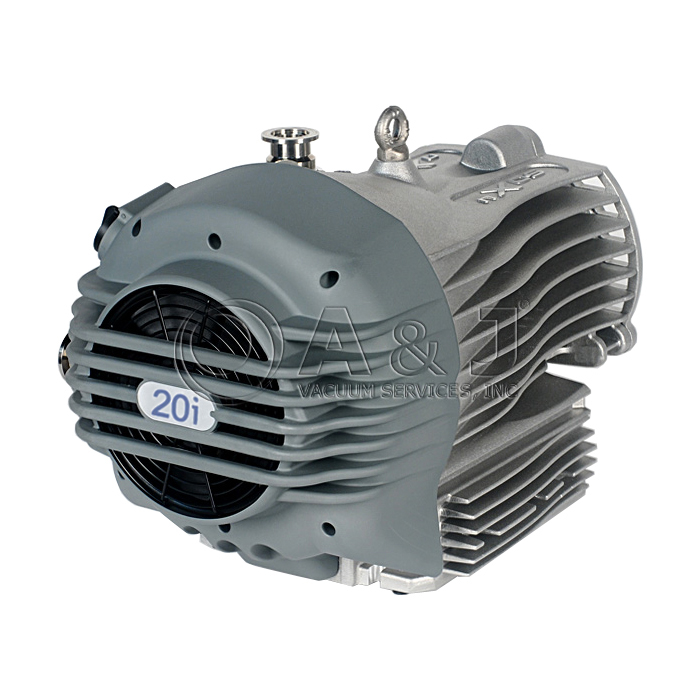

Edwards nXDS 20 - Scroll Dry Pumps

Edwards nXDS20i improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS20i pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS20i pumps are designed to be completely field serviceable.

Edwards nXDS 20i Characteristic:

Edwards nxds10i characteristic

Edwards nXDS 20i Features:

Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
Thermaly controlled fan for reduced noise
No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
Improved motor and drive efficiencies for reduced power and cost of ownership
Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

Edwards nXDS 20i Front Panel:

Edwards nxds10i front panel, A73601983

Edwards nXDS 20i Dimensions (mm):

Edwards nxds10i Dimensions, A73601983

Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:

Click here for Edwards nXDS20i Operation Manual A73701983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS20i Dry Scroll Vacuum Pump Brochure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf

A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition:

New

In Stock

Edwards nXDS20iC Dry Scroll Pump, 12.9 CFM Corrosive, 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73802983, NXDS 20iC

Item#: PN15786 Mfr Part#: A73802983 Manufacturer: Edwards Vacuum

PRICE: $14,472.00

WEB SAVINGS: $4,022.00

YOU PAY: $10,450.00

Edwards nXDS 20iC Dry Scroll Pump, 12.9 CFM Corrosive, 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, nxds20 A738-02-983 73802983, Edwards NXDS20ic

Edwards nXDS 20iC Overview:

The Edwards nXDS20iC is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS20iC.

Edwards nXDS20iC improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS20iC pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS20iC pumps are designed to be completely field serviceable.

Edwards nXDS 20iC Characteristic:

Edwards nxds10i characteristic

Edwards nXDS 20iC Features:

Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
Thermaly controlled fan for reduced noise
No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
Improved motor and drive efficiencies for reduced power and cost of ownership
Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

Edwards nXDS 20iC Front Panel:

Edwards nxds10i front panel, A73601983

Edwards nXDS 20iC Dimensions (mm):

Edwards nxds10i Dimensions, A73601983

Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:

Click here for Edwards nXDS20iC Operation Manual A73702983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS20iC Dry Scroll Vacuum Pump Brochure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf

Condition:

New

Edwards nXDS20iR Dry Scroll Vacuum Pump, No Gas Ballast, 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73803983, NXDS20iR

Item#: PN15790 Mfr Part#: A73803983 Manufacturer: Edwards Vacuum

PRICE: $11,000.00

WEB SAVINGS: $550.00

YOU PAY: $10,450.00

Edwards nXDS 20iR Dry Scroll Vacuum Pump, No Gas Ballast, 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A738-03-983 73803983, EDWARDS NXDS20iR

Edwards nXDS 20iR Overview:

The Edwards nXDS20iR is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS20iR.

Edwards nXDS20iR improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS20iR pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS20iR pumps are designed to be completely field serviceable.

Edwards nXDS 20iR Characteristic:

Edwards nxds10i characteristic

Edwards nXDS 20iR Features:

Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
Thermaly controlled fan for reduced noise
No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
Improved motor and drive efficiencies for reduced power and cost of ownership
Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

Edwards nXDS 20iR Front Panel:

Edwards nxds10i front panel, A73601983

Edwards nXDS 20iR Dimensions (mm):

Edwards nxds10i Dimensions, A73601983

Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:

Click here for Edwards nXDS20iR Operation Manual A73803983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS20iR Dry Scroll Vacuum Pump Brochure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf

Condition:

New
