Found 3 products
Item#: PN15717 Mfr Part#: A73601983 Manufacturer: Edwards Vacuum
PRICE: $9,759.00
WEB SAVINGS: $2,537.34
YOU PAY: $7,221.66

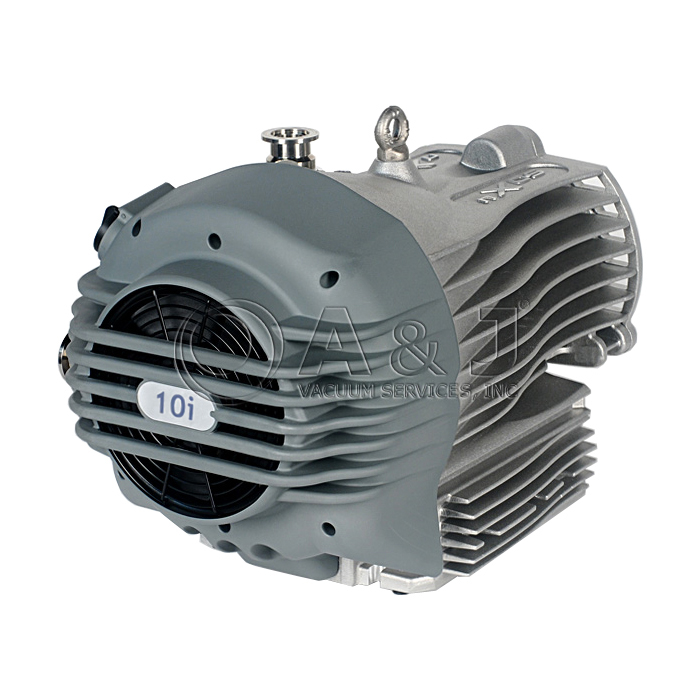

Edwards nXDS10i Scroll Dry Vacuum Pump, 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A736-01-983, 73601983, NXDS 10i



Edwards nXDS 10i Overview:


The Edwards nXDS10i is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS10

Edwards nXDS10i improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise.  Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS10i pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes.  Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally.  Edwards nXDS10i pumps are designed to be completely field serviceable.



Edwards nXDS 10i Characteristic:


Edwards nxds10i characteristic



Edwards nXDS 10i Features:


  • Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
  • Thermaly controlled fan for reduced noise
  • No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
  • Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
  • Improved motor and drive efficiencies for reduced power and cost of ownership
  • Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485



Edwards nXDS 10i Front Panel:


Edwards nxds10i front panel, A73601983





Edwards nXDS 10i Dimensions (mm):


Edwards nxds10i Dimensions, A73601983



Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:





Click here for Edwards nXDS10i Operation Manual A73601983  https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS10i Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf


A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS  SCROLL  PUMPS, XDS Pumps  and  all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps  repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN15784 Mfr Part#: A73602983 Manufacturer: Edwards Vacuum
PRICE: $10,445.00
WEB SAVINGS: $2,195.00
YOU PAY: $8,250.00

Edwards nXDS 10iC Dry Scroll Vacuum Pump, Corrosive, 6.7 CFM / 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A736-02-983 73602983, EDWARDS NXDS 10IC



Edwards nXDS 10iC Overview:


The Edwards nXDS10iC is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS10iC

Edwards nXDS10iC improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise.  Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS10iC pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes.  Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally.  Edwards nXDS10iC pumps are designed to be completely field serviceable.



Edwards nXDS 10iC Characteristic:


Edwards nxds10i characteristic



Edwards nXDS 10iC Features:


  • Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
  • Thermaly controlled fan for reduced noise
  • No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
  • Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
  • Improved motor and drive efficiencies for reduced power and cost of ownership
  • Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485



Edwards nXDS 10iC Front Panel:


Edwards nxds10i front panel, A73601983





Edwards nXDS 10iC Dimensions (mm):


Edwards nxds10i Dimensions, A73601983



Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:





Click here for Edwards nXDS10iC Operation Manual A73602983  https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS10iC Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf


A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS  SCROLL  PUMPS, XDS Pumps  and  all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps  repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN15788 Mfr Part#: A73603983 Manufacturer: Edwards Vacuum
PRICE: $9,759.00
WEB SAVINGS: $2,734.00
YOU PAY: $7,025.00

Edwards nXDS 10iR Dry Scroll Vacuum Pump, 6.7 CFM  No Gas Ballast, 100-127 V, 200-240 V, Single Phase, 50/60 Hz, A736-03-983, 73603983



Edwards nXDS 10iR Overview:


The Edwards nXDS10iR is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS10iR

Edwards nXDS10iR improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise.  Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.

Edwards nXDS10iR pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes.  Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally.  Edwards nXDS10iR pumps are designed to be completely field serviceable.



Edwards nXDS 10iR Characteristic:


Edwards nxds10i characteristic



Edwards nXDS 10iR Features:


  • Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
  • Thermaly controlled fan for reduced noise
  • No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
  • Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
  • Improved motor and drive efficiencies for reduced power and cost of ownership
  • Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485



Edwards nXDS 10iR Front Panel:


Edwards nxds10i front panel, A73601983





Edwards nXDS 10iR Dimensions (mm):


Edwards nxds10i Dimensions, A73601983



Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:





Click here for Edwards nXDS10iR Operation Manual A73503983  https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf

Click here for Edwards nXDS10iR Dry Scroll Vacuum Pump Brochure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf


A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS  SCROLL  PUMPS, XDS Pumps  and  all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps  repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New
