Edwards nEXT 240D Turbo Pump, ISO100, 110 W, B81200102 / B812-00-102
Condition:
Remanufactured
In Stock
Item#:PN31574
Mfr Part#:B81200102 / B812-00-102
Manufacturer:Edwards Vacuum
Features:
Edwards nEXT 240D Turbo Pump, ISO100, 110 W, B81200102 / B812-00-102
nEXT 240D / B81200102 Overview:
The nEXT 240D Turbo pumps consist of the turbomolecular pump with a permanently attached controller containing drive electronics.
The Edwards controller controls the electrical supply to the pump with the exception of standby speed control. It has no manual controls and can only be operated through the logic interface. To operate the nEXT pump you must connect it to your own control equipment and power supply or alternatively use the Edwards TIC Turbo Instrument Controller or TIC Turbo Controller.
Fully Remanufactured Edwards nEXT 240 Turbo pumps with an NW 25 interstage-port are supplied with an inlet-strainer that fits into the interstage-port. The inlet-screen and inlet-strainer protect the pump against damage that would be caused by debris entering the pump.
The nEXT 240 Turbo pump have a vent-port for venting the pump and vacuum system to atmospheric pressure. The pump is supplied with a manual vent-vavle fitted; this can be replaced with a TAV5 or TAV6 solenoid-operated vent-valve. The TAV valve can be directly controlled by the on-board controller.
Edwards nEXT 240 Pump have a purge-port: an inert purge gas can be introduced protect the bearing and motor from corrosion. An optional vent-port adapter and purge restrictor can be fitted to the purge-port to control the flow rate of the purge gas and to filter the gas supply.
A&J Vacuum also Repair / Rebuild and Rervice all Edwards EXT and nEXT Turbo Pumps Edwards Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards nEXT 240D Turbo Pump, ISO100, 110 W, B81200102 / B812-00-102

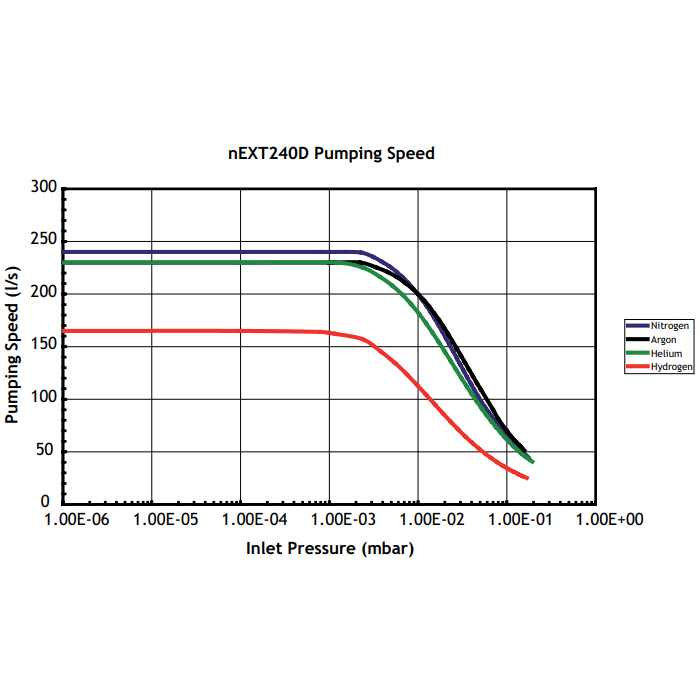

Edwards nEXT 240D Technical Data:
A&J Vacuum also Repair / Rebuild and Rervice all Edwards EXT and nEXT Turbo Pumps Edwards Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
