- Displacement: 18 cfm
- Pumping Speed: 30.8 m3/h
- Ultimate Pressure: < 2x10-3 mbar
- Inlet Flange: DN 25 KF
Shopping Cart ( )
Leybold D25B TRIVAC Vacuum Pump 1-Phase 230V 50/60 HZ 18 CFM, 11335, D25
Condition:
New
Item#:PN20303
Mfr Part#:11335
Manufacturer:Leybold
Features:
Leybold Vacuum D25B TRIVAC Vacuum Pump 18 CFM Pumping Speed, Single Phase 230V 50/60 HZ, 11335, D25

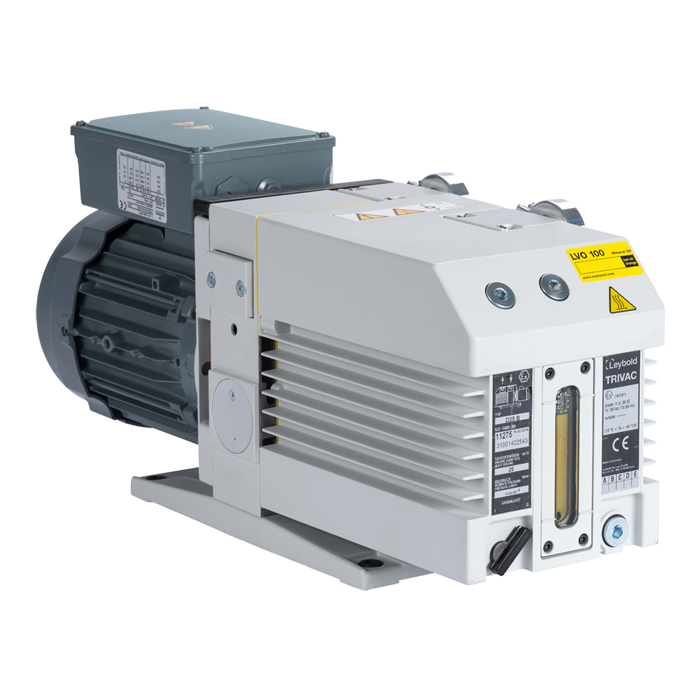

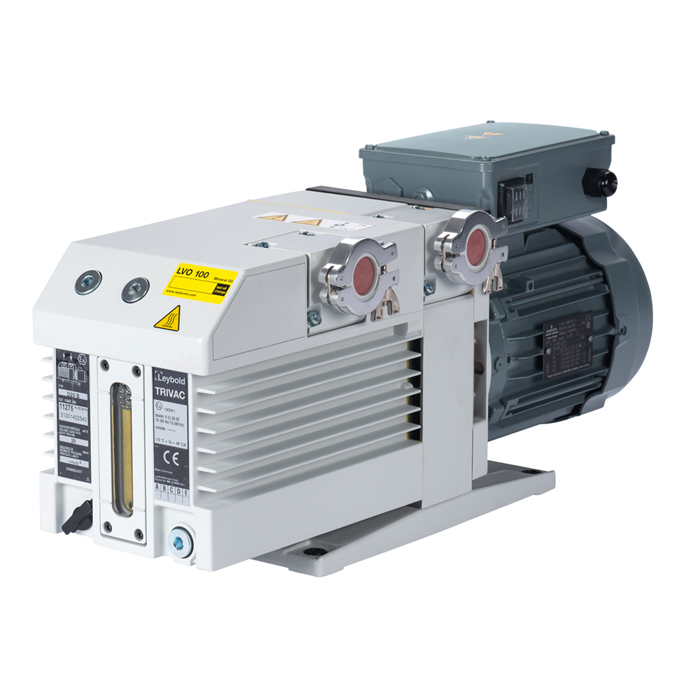

Leybold D25B TRIVAC Overview:
The LEYBOLD TRIVAC D25B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D25B pump 11335 is wire wired for low 230V 50/60 Hz Voltage. The Leybold D 25 B is a well know pump with excelent reputation for vapor handling capability. The Leybold D25B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D25B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 25 B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D8 oil requirement 0.5 L min, 1.0 L max. The TRIVAC D25 Pump has grate water vapor capacity of 476 g/h.
Leybold D 25 B pumps are also very quiet with nise level of 52 db(A) without gass ballast, and 56 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 25 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D16B vane vacuum pumps are available with different motors with other voltage options listed below. 11335.

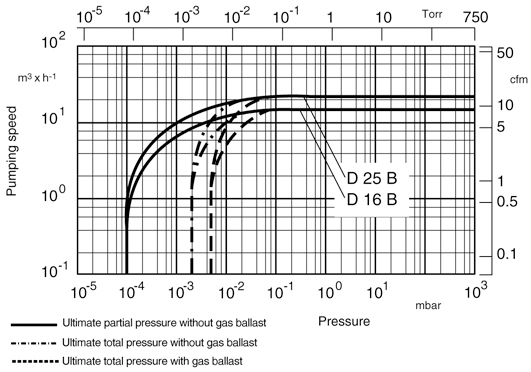

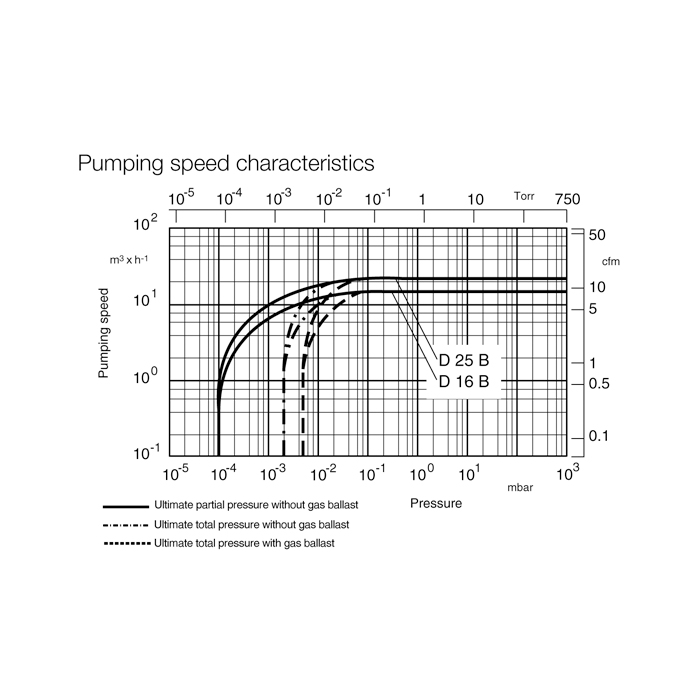

Leybold D25B TRIVAC Pumping speed:
Available D25B pump voltages configurations:
Leybold D 25 B Vacuum Pump with single phase motor 115VAC 50/60 hz, Leybold Part Number 91276V001
Leybold D25B Vacuum Pump with Three phase motor 230/400VAC 50/60 hz, Leybold Part Number 11276
Click Here to view D16B and D25B Operation Manual to view all pump configurations
New TRIVAC D25B Pump is supplied with the following accessories:
- 1 Centering Ring
- 1 Centering ring with dirt trap
- 2 clamps DN 25 KF
- Operating instructions
- Spare parts list
- For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.
Typical D 25 B Vacuum pump Applications:
- Vacuum Ovens
- Leak detectors and Leak detector systems
- Surface analysis instruments
- Scanning electron microscopes
- Load lock
- Spectroscopy
- University Research Labs
- As a backing pump for turbomolecular pump systems
- Beam welding

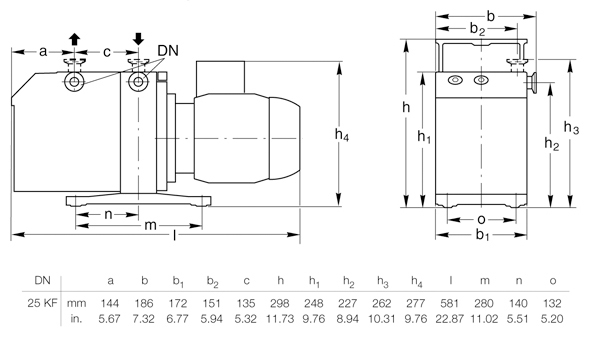

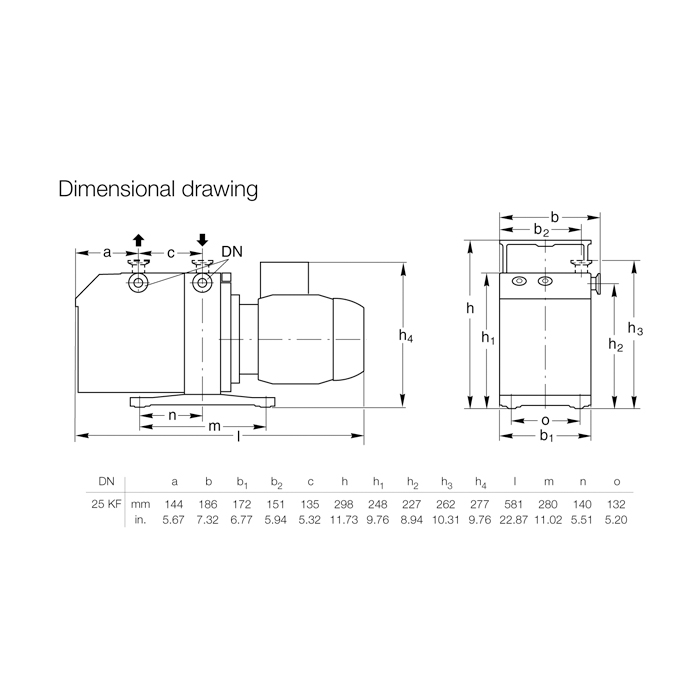

Leybold D25B Dimensions:
Click Here for Leybold D16B Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D25B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Leybold D25B TRIVAC Vacuum Pump 18 CFM Pumping Speed, Single Phase 230V 50/60 HZ, 11335, D25

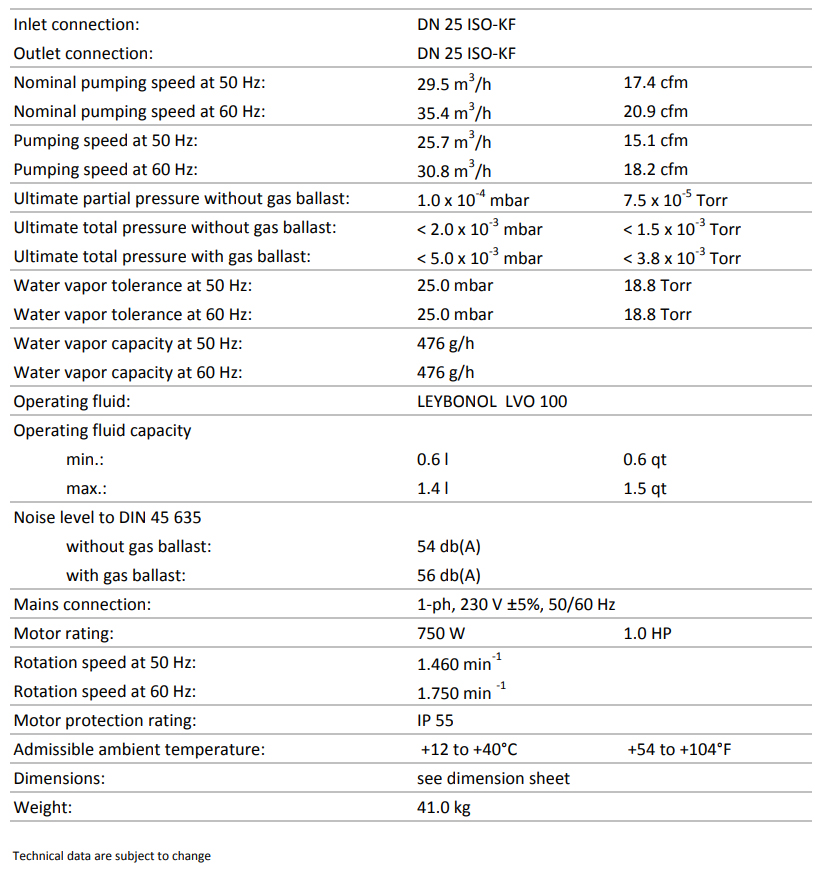

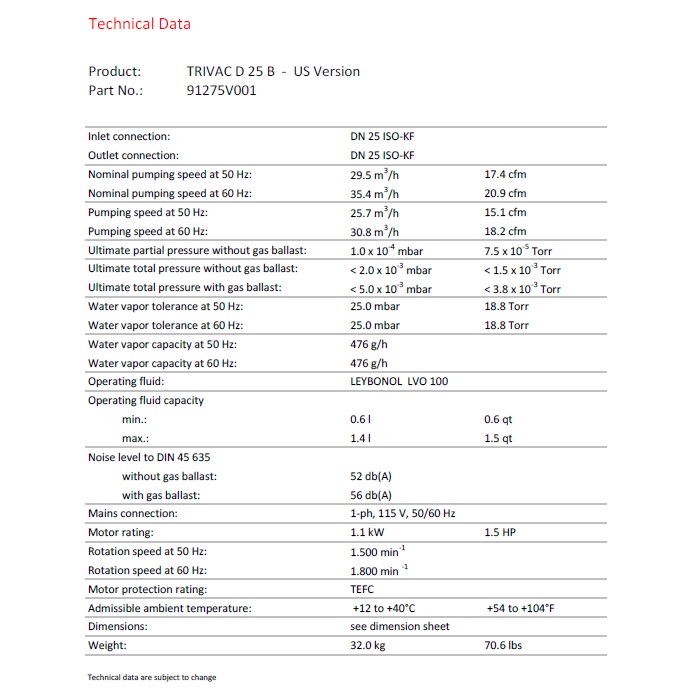

Leybold D25B TRIVAC Technical Data:
Click Here for Leybold D16B Manual
