Edwards Speedivalve SP16K Inline Valve, KF 16, FKM Diaphragm, Aluminum Base C33255000, SP 16K Valve
Condition:
New
In Stock
Item#:PN31580
Mfr Part#:C33255000
Manufacturer:Edwards Vacuum
Features:
Edwards Speedivalve SP16K Inline Valve, KF 16, FKM Diaphragm, Aluminum Base C33255000, SP 16K Valve

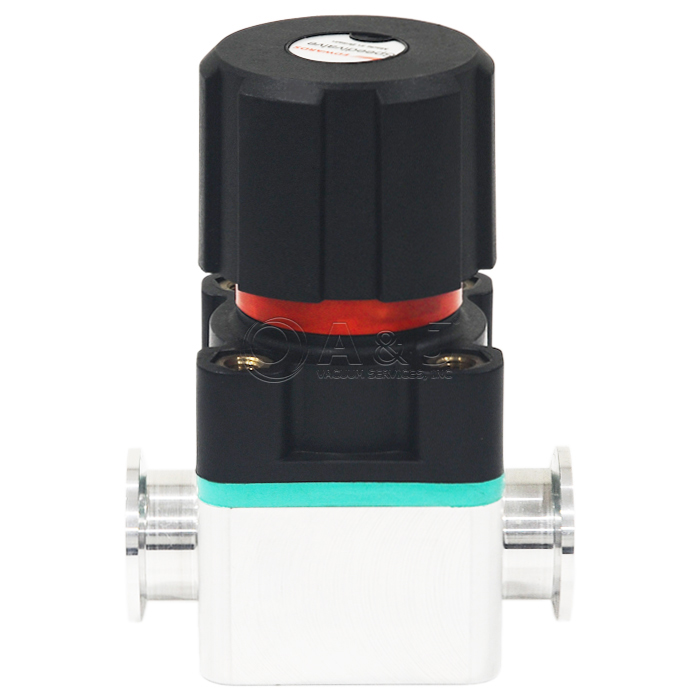

The Edwards Speedivalve SP16K is a diaphragm sealed in-line, isolation valve. The construction consists of a flexible elastomeric diaphragm which is sealed onto a polished seat by a screw mechanism. The Speedivalve's mechanism is isolated from the system by the diaphragm resulting in an extremely high-durability and ‘dirty’ system tolerant valve.
The SP10k, SP16k, SP25k, and SP40k valves are available with either fluoroelastomer or nitrile rubber diaphragms.
The valve body is made from aluminum and the complete valve is leak tight to better than 1 x 10^-6 mbar.ls^-1 and 1 bar differential.
These valves have NW flanges and are suitable for pipeline or panel mounting.
These valves are built to withstand an ambient operating temperature range of 0-40 Degrees celsius.
Edwards Speedivalve SP16K Inline Valve, KF 16, FKM Diaphragm, Aluminum Base C33255000, SP 16K Valve
| Construction materials | |
| Body | Aluminium alloy to BS1490 |
| Hand wheel and bonnet | Glass reinforced plastics |
| Diaphragms | Nitrile or Fluoroelastomer |
| Leak rate (1 bar / 14.5 psi differential) | |
| Valve (overall and across seat) | 10^-6 mbar ls^-1 |
| 8 x 10^-7 Torr ls^-1 | |
| Coupling | 10^-7 mbar ls^-1 |
| 8 x 10^-8 Torr ls^-1 | |
| Molecular conductance | |
| SP10K, SP16K | 1.7 ls^-1 |
| SP25K | 9.0 ls^-1 |
| SP40K | 23.3 ls^-1 |
| Pressure rating using Co-Seal | 9 bar / 131 psi |
| Ambient operating range | 0 to 40 °C |
| Ambient storage range | -10 to 40 °C |
| Panel thickness | 3 mm / 0.117 in maximum |
| Weight | |
| SP10K | 230 g / 8.1 oz |
| SP16K | 240 g / 8.4 oz |
| SP25K | 760 g / 26.6 oz |
| SP40K | 2300 g / 80.5 oz |
| Baking temperature | 60 °C |
Item#:PN31584
Mfr Part#:C33155800 / C331-55-800
Condition: In Stock
New
In Stock
$110.00
