- Inlet flange: DN 63 CF
- Pumping speed (N2): 61 l/s
- Ultimate pressure: < 1 x 10-7 mbar
- 1.2 m3/h XDD1 Dry Diaphragm Backing Pump
Full Service / Repair of T-75 Turbo Stations is available at AJVS Service Center. Contact Us to request service estimate.

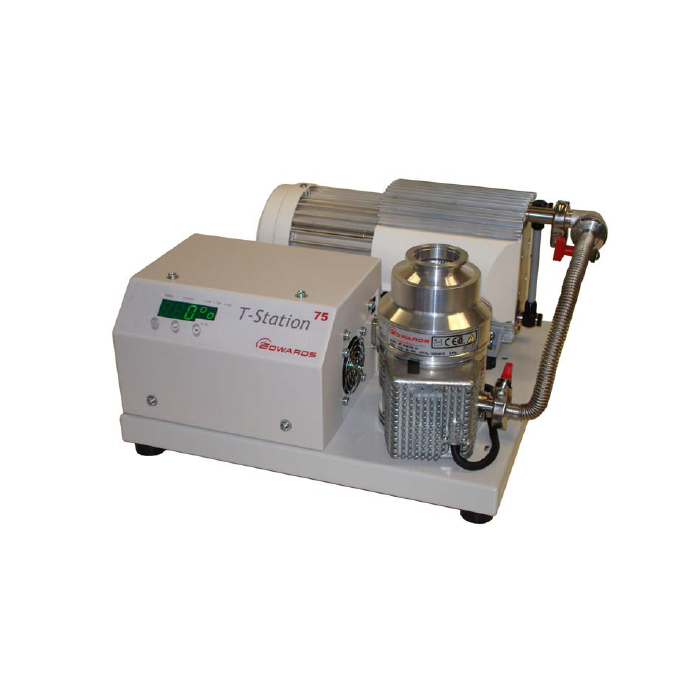

Edwards T-Station Turbo Pumping T Station, Includes EXT75DX Turbo Pump (DN 63 CF), XDD1 Dry Diaphragm Vacuum Pump and Turbo Active Gauge, 115V T75 Station TS75D3002
Edwards T-Station 75 is Edward's new entry line Turbo pumping system. Package includes EXT75DX with a XDD1 Dry Diaphragm Backing Pump
Edwards T-Station 75 Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with EXT75DX Turbo Pump
- DN 63 CF

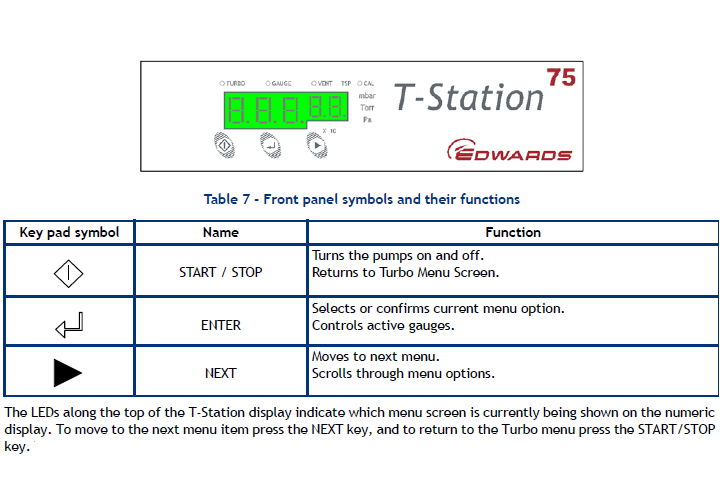

- Integrated Control Unit
- 115 V AC, 50/60 Hz
Edwards T-Station 75 Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
PLEASE NOTE: THIS ITEM HAS BEEN OBSOLETE, REPLACED WITH NEW LINE OF EDWARDS T85, T-STATION 85 TURBO SYSTEM. CLICK HERE TO VIEW IT
Full Service / Repair of T-75 Turbo Stations available at AJVS Service Center. Contact Us to request service estimate.
Edwards T-Station Turbo Pumping T Station, Includes EXT75DX Turbo Pump (DN 63 CF), XDD1 Dry Diaphragm Vacuum Pump and Turbo Active Gauge, 115V T75 Station TS75D3002
Backing Pump: XDD1 Dry Diaphragm Backing Pump
Inlet Flange: DN 63 CF
Mains Requirement: 110 V, 50/60 Hz
Pumping Speed Backing Pump at 50 Hz: 1.2 m3/h
Pumping Speed for N2: 61 l/s

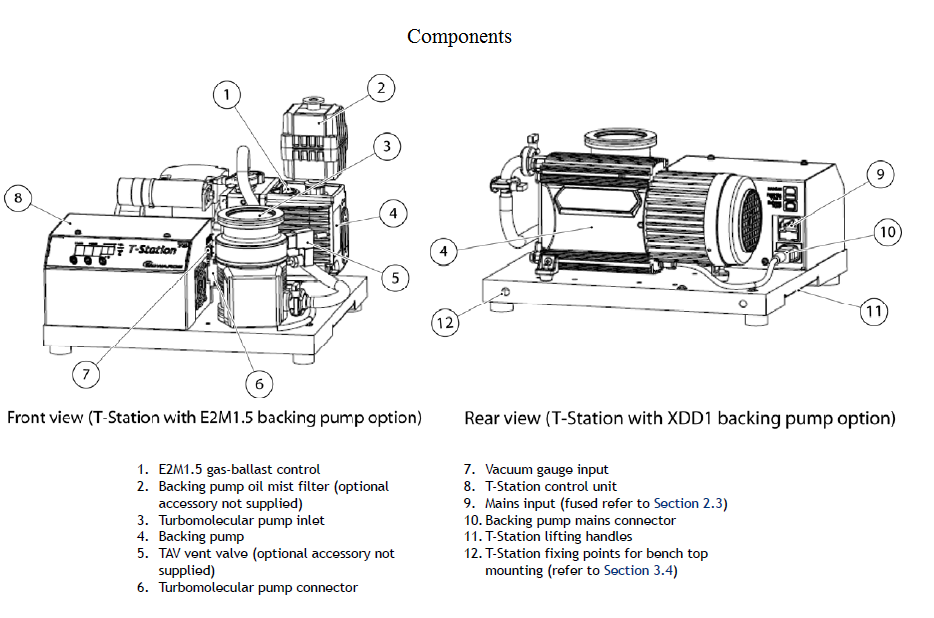

Pumping Station Components: EXT75DX, XDD1, TAG (Turbo and Active Guage)
Ultimate Pressure: < 5 x 10-8 mbar
Weight: 21 kg / 48 lbs
Noise Level: 56dB(A)
Edwards XDD1 A74602983_A74602991 Operating Instructions Dry Diaphragm Pump
Edwards T Station D39593880 TS75W1001_TS75W2002_TS75W3002_TS75D1002_TSD75D2002_TS75D3002 - Instruction Manual (4).pdf
Edwards E2m0.7 E2M1.2 Operation Instructions A37141902 A37141919
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Full Service / Repair of T-75 Turbo Stations is available at AJVS Service Center. Contact Us to request service estimate.
Edwards T-Station Turbo Pumping T Station, Includes EXT75DX Turbo Pump (DN 63 CF), XDD1 Dry Diaphragm Vacuum Pump and Turbo Active Gauge, 115V T75 Station TS75D3002
Edwards T-Station 75 is Edward's new entry line Turbo pumping system. Package includes EXT75DX with a XDD1 Dry Diaphragm Backing Pump
Edwards T-Station 75 Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with EXT75DX Turbo Pump
- DN 63 CF
- Integrated Control Unit
- 115 V AC, 50/60 Hz
Edwards T-Station 75 Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
Specifications
PLEASE NOTE: THIS ITEM HAS BEEN OBSOLETE, REPLACED WITH NEW LINE OF EDWARDS T85, T-STATION 85 TURBO SYSTEM. CLICK HERE TO VIEW IT
Full Service / Repair of T-75 Turbo Stations available at AJVS Service Center. Contact Us to request service estimate.
Edwards T-Station Turbo Pumping T Station, Includes EXT75DX Turbo Pump (DN 63 CF), XDD1 Dry Diaphragm Vacuum Pump and Turbo Active Gauge, 115V T75 Station TS75D3002
Backing Pump: XDD1 Dry Diaphragm Backing Pump
Inlet Flange: DN 63 CF
Mains Requirement: 110 V, 50/60 Hz
Pumping Speed Backing Pump at 50 Hz: 1.2 m3/h
Pumping Speed for N2: 61 l/s
Pumping Station Components: EXT75DX, XDD1, TAG (Turbo and Active Guage)
Ultimate Pressure: < 5 x 10-8 mbar
Weight: 21 kg / 48 lbs
Noise Level: 56dB(A)
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
