Edwards XDD1 Dry Diaphragm Vacuum Pump 100-115V/200-230V 50/60Hz, XDD 1, A74602983
Item#: PN18716 Mfr Part#: A74602983 Manufacturer: Edwards Vacuum
Condition:
New
New Edwards XDD1 Dry Diaphragm Vacuum Pump 100-115V/200-230V 50/60Hz, XDD 1, A74602983

Features:
  • Final Pressure: < 2 mbar
  • Exhaust Pressure Max.: 1100 mbar
  • Nominal Pumping Speed (50 Hz): 1.2 m3/h
  • Rotation Speed (50 Hz): 1500 rpm

PRICE: $2,950.00
WEB SAVINGS: $330.00
YOU PAY: $2,620.00
Tariff charges are calculated during checkout
Item#: PN18716 Mfr Part#: A74602983
Edwards XDD1 Dry Diaphragm Vacuum Pump 100-115V/200-230V 50/60Hz, XDD 1, A74602983
Item#: PN18716 Mfr Part#: A74602983 Manufacturer: Edwards Vacuum 12 months warranty

Edwards XDD1 Dry Diaphragm Vacuum Pump 100-115V/200-230V 50/60Hz, XDD 1, A74602983




Edwards XDD1 Features:


  • Dry pumping, lubricant free technology
  • Lightweight and compact
  • Ideal backing pump
  • Complies with EN61010, EN1012, CSA/UL standards



XDD1 / A74602983 Overview:


The diaphragm vacuum pumps of the series XDD1 are used for backing small compaund turbomolecular pumps in clean high acuum applications, and also design for free standing units. A typical ultimate pressure of better than 5 x 10-8 mbar can be achieved when using an XDD-1 as backing pump for 70 l/sec turbos.

The Edwards XDD1 pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.

The pump is a compact and efficient. Under normal conditions the Edwards XDD 1 is virtually maintenence free, the lifetime of the diaphragms and valves is typicaly > 10,000 operating hours, depending on the application.



A&J Vacuum Repairs / Rebuilds and Services Edwards Vacuum Pumps, including Scroll Dry Vacuum Pumps, Turbomolecular Pumps, and Diaphragm Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

This item is non-returnable/non-refundable

Edwards XDD1 Dry Diaphragm Vacuum Pump 100-115V/200-230V 50/60Hz, XDD 1, A74602983



Edwards XDD1 Technical Data:

  • Connection Inlet Flange: DN 16 ISO-KF (NW16)
  • Weight: 7.30 kg | 16.1 lb
  • Connection vacuum outlet flange: Fitted silencer | 1/8" BSPP (or G 1/8") Female
  • Power Supply Phase: 1-Ph
  • Power Supply Voltage: 1Ph 100-120/200-230V 50/60Hz

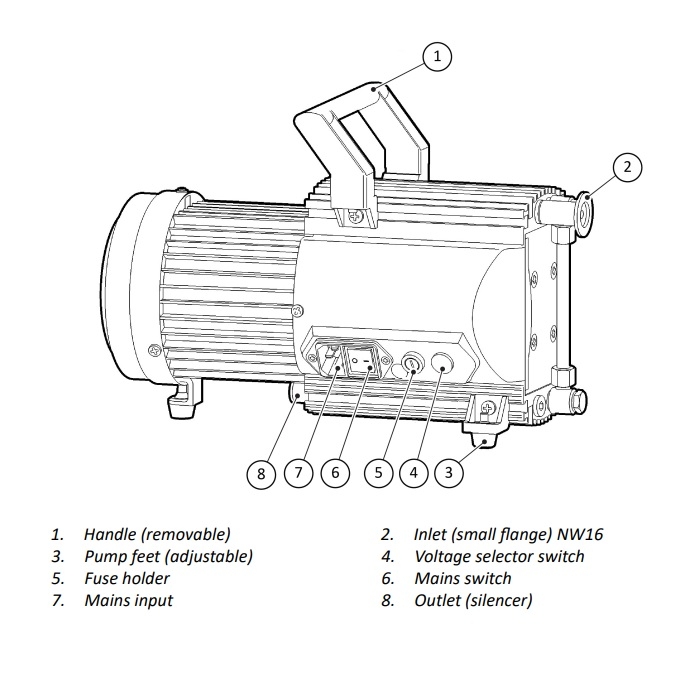

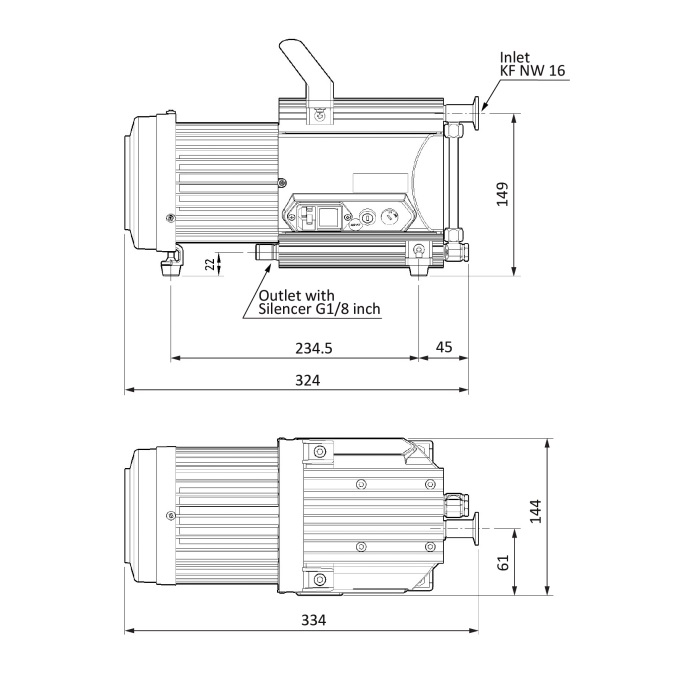

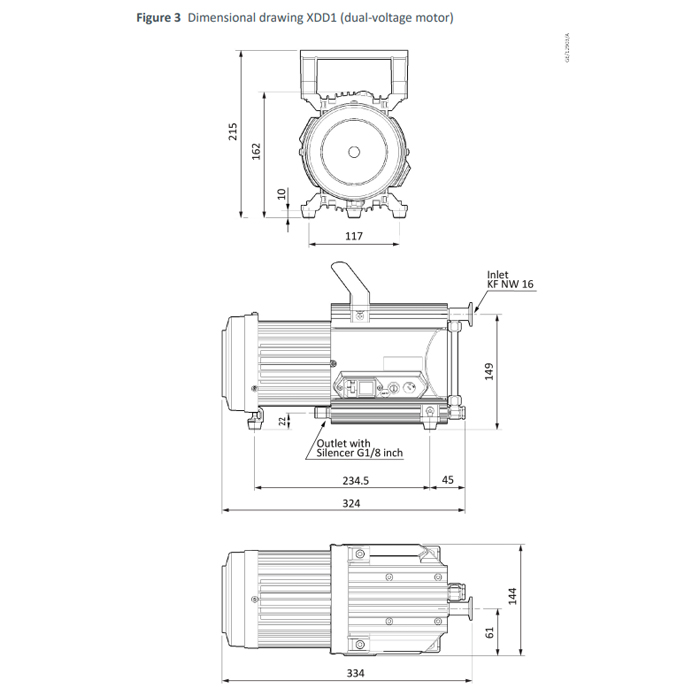

  • Dimension Length: 0.334 m | 13.15 in
  • IP Rating: I40
  • Power Supply Frequency: 50 Hz | 60 Hz
  • Dimension Height: 0.215 m | 8.46 in
  • Dimension Width: 0.117 m | 4.61 in
  • Connector Electrical Power: DSUB 15-PIN - Male
  • Noise / Sound Level: 45.00 db(A)
  • Cooling Method: Air Cooling (forced - fan)
  • Connection Inlet / Outlet Flange: DN 16 ISO-KF (NW16) / Fitted silencer
  • Certification Motor: UL | CSA
  • Power Total Rated: 80 W
  • Power Total Rated @60Hz: 80 W
  • Power Total Rated @50Hz: 80 W
  • Pumping Speed Air Nitrogen 60Hz: 1.40 m/³h
  • Pumping Speed Air Nitrogen 50Hz: 1.20 m/³h
  • Pressure Ultimate: 2 mbar
  • Power at Ultimate: 80 W
  • Pumping Speed Air Nitrogen (@50Hz or max @default setting): 1.20 m/³h
  • Temperature Ambient Operation Max: 40.00 °C | 104.00 °F | 313.15 K
  • Temperature Ambient Operation Min: 10.00 °C | 50.00 °F | 283.15 K
  • Temperature Ambient Storage Min: -10.00 °C | 14.00 °F | 263.15 K
  • Temperature Ambient Storage Max: 60.00 °C | 140.00 °F | 333.15 K
  • Pressure Absolute Inlet Continuous Max: 1000 mbar
  • Altitude Max: 6561.68 ft
  • Pressure Absolute Outlet Continous Max: 1100 mbar
  • Classification Product Pressure Range: Rough Vacuum: 1000 mbar - 1 mbar
  • Classification Dry or Wet Pump: Dry
  • Classification Vacuum Pump Technology: Diaphragm Pump
  • Material of Construction: Aluminium,FPM,PTFE,Stainless steel,Aluminium/silicone rubber,PE,Aluminium anodized
  • Material Exposed to Vacuum: Aluminium,FPM,PTFE,Stainless steel,Aluminium/silicone rubber,PE,Aluminium anodized



A&J Vacuum Repairs / Rebuilds and Services Edwards Vacuum Pumps, including Scroll Dry Vacuum Pumps, Turbomolecular Pumps, and Diaphragm Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
