Edwards ADC Active Digital Standard Vacuum Gauge Controller, 1 Gauge, D39590000

Edwards ADC Active Digital Standard Vacuum Gauge Controller, 1 Gauge Display , D39590000

Edwards ADC Active 1 Gauge Digital Display D39590000 Overview:

The Edwards Active Digital Controller (ADC) is a compact single gauge controller and display in one. It features a LED display and simple push-button operation controls. The Edwards ADC controller automatically recognizes compatible Edwards gauges, loads the appropriate look-up table and displays the pressure in commonly used vacuum units.

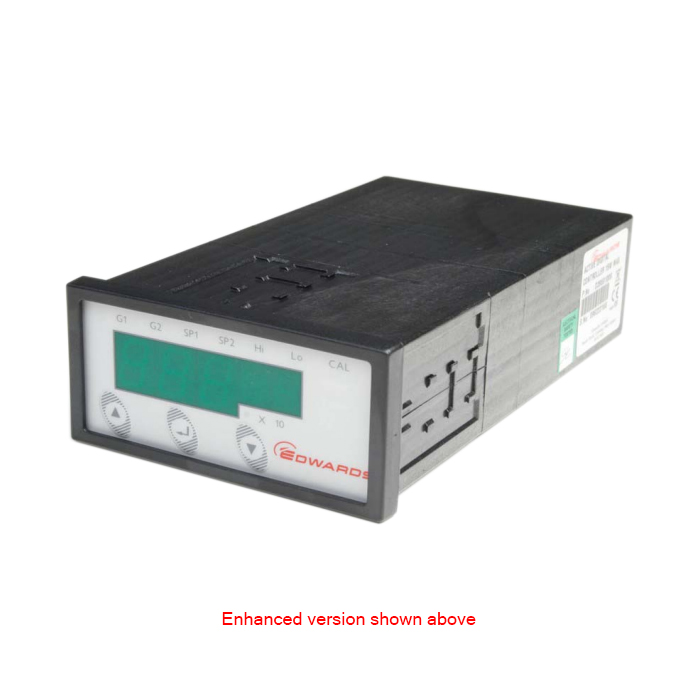

There are two versions of Edwards ADC Gauge Controller available; the standard ADC Controller simply displays the pressure in choice of units, and the enhanced ADC includes a second gauge connection, two set-point relays, two analogue outputs and an RS232 interface.
The ADC mk2 enhanced controller can now support 2 different gauges e.g. APG100 and AIM.

Edwards Tic Instrument, 3 Gauge Features:

• Plug and measure operation means you simply plug in the mains supply, connect the gauge and ADC displays the measured pressure

• The ADC supports Edwards gauges with a total measuring range of 2000 to 1 x 10-9 mbar (1500 to 7.5 x 10-10 Torr)

• Bright LED display gives clear, long distance readability

• The Edwards ADC Gauge displays units in mbar, Torr, Pascal or Volts

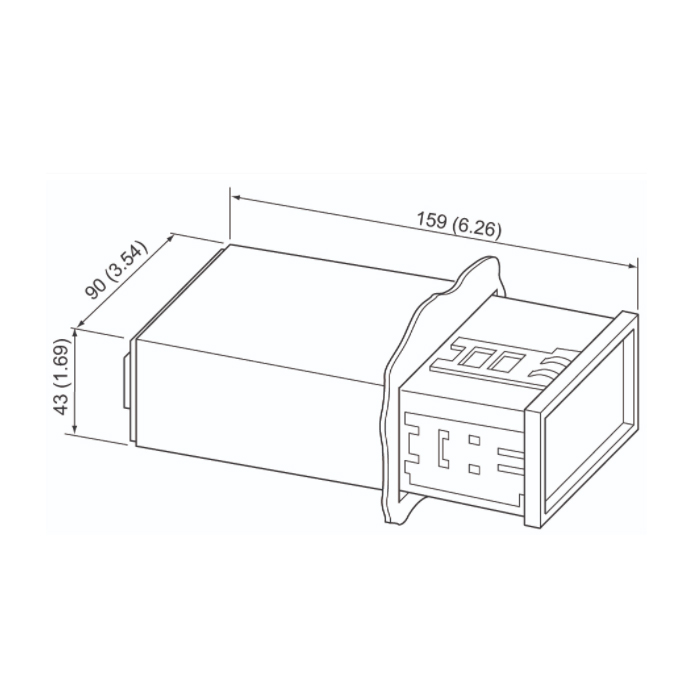

• Small 1/8 DIN enclosure, may be panel or bench mounted

• Simple push-button control makes operation highly intuitive

A&J Vacuum services and repairs All Edwards Turbo Pump0s, Vacuum Pump, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
