- Pressure Range Atmosphere to 10-9 mbar/torr
- Maximum Overpressure; 6 Bar Absolute (145 psi)
- Operating Temperature; +5 to +60 *C
- Interchangeable Body
Shopping Cart ( )

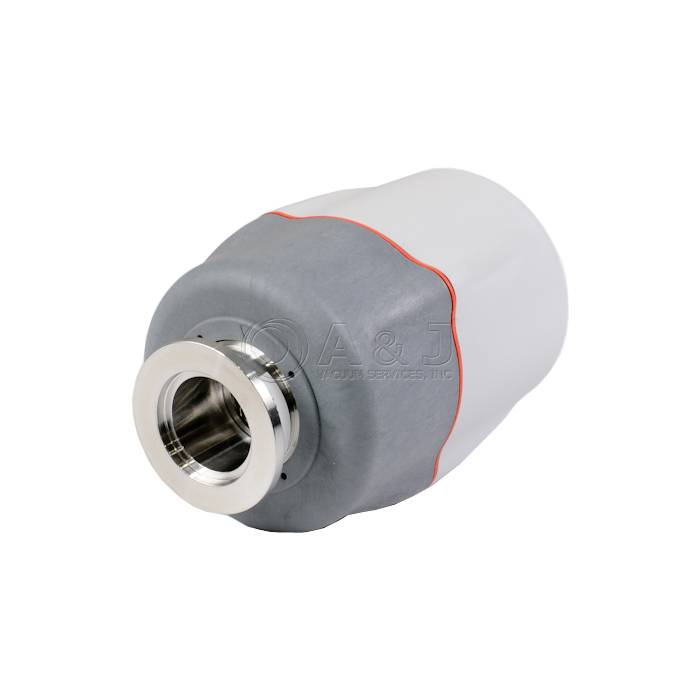

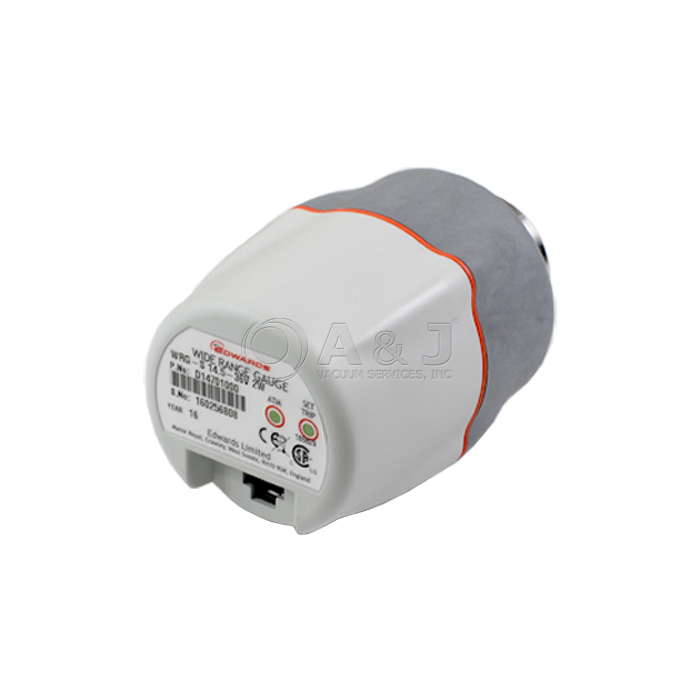

Edwards WRG-D NW25 Wide Range Gauge, S/S, D14702000 / D147-02-000
Condition:
New
In Stock
Item#:PN23540
Mfr Part#:D14702000 / D147-02-000
Manufacturer:Edwards Vacuum
Features:
Edwards WRG-D NW25 Wide Range Gauge, S/S, D14702000 / D147-02-000
Edwards WRG-D NW25 Features:
- Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
- D-type version including cable strain relief and enhanced ingress protection - IP44
- Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
- Easily programmed set point covering entire measuring range
- Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
- Automatic vacuum setting of Pirani gauge element
- Single push button atmosphere setting
- Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
- Ultra compact, featuring recessed electrical connector

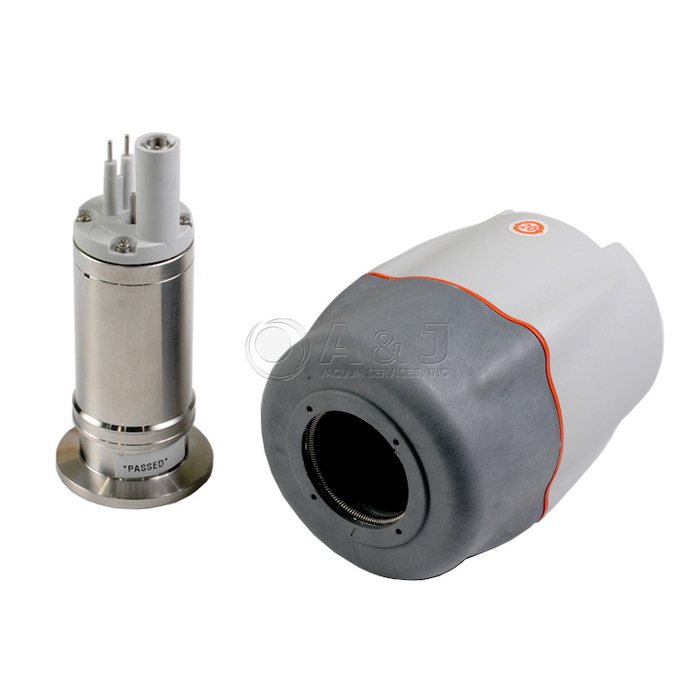

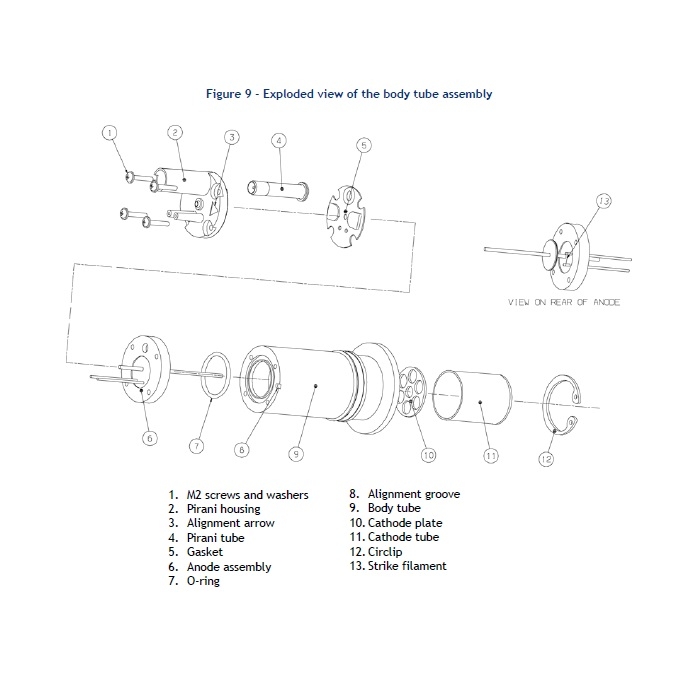

- Easy service; both Pirani and magnetron elements are individually replaceable
- Comprehensive failure mode diagnostics facility
WRG-D NW25 Wide Range Gauge / D14702000 Overview:
The Edwards WRG-D-NW 25 / D147-02-000 Wide Range Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D14702000 Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.
The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.
The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.
A&J Vacuum services and repairs Edwards Vacuum Measurement Transmitters, along with all other Edwards Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Edwards WRG-D NW25 Wide Range Gauge, S/S, D14702000 / D147-02-000
Edwards WRG-D NW25 Technical Data:
| Pressure range | Atmosphere to 10-9 mbar/Torr |
| Accuracy * | Typically ±15% <100 mbar and ±30%<10-3mbar |
| Maximum over pressure | 6 bar absolute (87 psia) |
| Power supply | +14.5 to +36 V d.c. |
| Power consumption | 2 W maximum |
| Output signal | 1.8 to 10.2 V d.c. |
| Adjustments | Atmosphere and setpoint |
| Set point | Open collector transistor |
| Maximum voltage | 40 V d.c. |
| Current | 100 mA maximum |
| Temperature range | |
| Operating | +5 to +60 oC |
| Storage | 0 to +70 oC |
| Materials exposed to vacuum (Both NW and CF versions) | Stainless steel (AISI 304, 316, 321, 347), Fluoroelastomer, soda lime glass, Tungsten, trace of Nickel and Nickel Iron |
| Internal volume | 26 cm3 |
| Weight | 0.8 kg |
| External interface connector | 9 way D-type male |
| Interface cables | Use range of active gauge cables |
| Standards | |
| Electromagnetic compatibility | EN 61326 Industrial Location, Class B emissions |
| Enclosure rating | IP40 |
| Pin allocation ** | |
| 1. Power supply positive | 5. Signal common |
| 2. Power supply common | 6. Set-point output |
| 3. Gauge output | 7. Atmosphere calibration |
| 4. Gauge identification | 8. Not connected |
Click here for Edwards WRG Series Broshure
A&J Vacuum services and repairs Edwards Vacuum Measurement Transmitters, along with all other Edwards Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
