- Pressure range Atmosphere to 10-9 mbar/torr
- Maximum overpressure; 6 bar absolute (145 psi)
- Operating Temperature; +5 to +60 *C
- Interchangeable body
Shopping Cart ( )
Body Tube Assembly Replacement for Edwards WRG-S-25NW Wide Range Gauge, D14701801 Edwards WRG Gauge
Condition:
New
In Stock
Item#:PN20201
Mfr Part#:D14701801
Manufacturer:Edwards Vacuum
Features:
Body Tube Assembly Replacement for Edwards WRG-S-25NW Wide Range Gauge, D14701801 Edwards WRG Gauge
Overview
The Edwards WRG-S-25NW Wide Range Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D1470300C Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.
The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.
The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.
Edwards WRG Technology
The Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an inverted magnetron for the lower range.
For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG-S-DN40CF has an easy to program set-point which operates over the entire measurement range.
The Edwards WRG magnetron Gauge uses an advanced technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions. To optimize the lifetime of the gauge, the magnetron HT voltage is reduced after ignition and the magnetron operates with a low discharge current.
The Edwards WRG-S-DN40CF meets EMC requirements for both light industrial emissions and heavy industrial immunity.
Main WRG Gauge Features

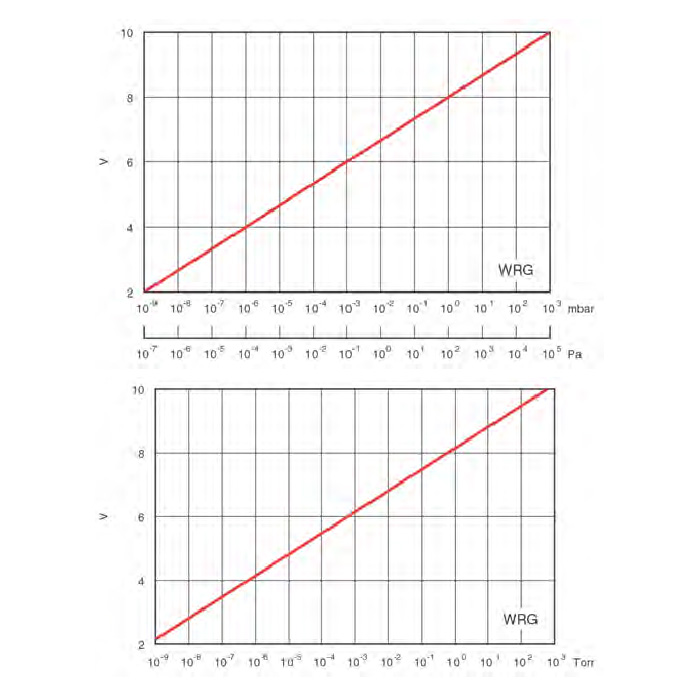

- Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
- D-type version including cable strain relief and enhanced ingress protection - IP44
- Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
- Easily programmed set point covering entire measuring range
- Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
- Automatic vacuum setting of Pirani gauge element
- Single push button atmosphere setting
- Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
- Ultra compact, featuring recessed electrical connector
- Easy service; both Pirani and magnetron elements are individually replaceable
- Comprehensive failure mode diagnostics facility
Click here for Edwards WRG-S-25NW Operation Manual D14703801https://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf
Click here for Edwards WRG Series Broshurehttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf
A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
Body Tube Assembly Replacement for Edwards WRG-S-25NW Wide Range Gauge, D14701801 Edwards WRG Gauge
Technical Data;
- Pressure range Atmosphere to 10-9 mbar/torr.
- Maximum overpressure; 6 bar absolute (145 psi)
- Power Supply; +14.5 to +36V d.c. (max 1V ripple)
- Set Point; Open collector transistor
- Maximum Voltage; 40V d.c.
- Operating Temperature; +5 to +60 *C
- Storage Temperature; 0 to +70*C
- Internal volume - 26cm3
- External interface connector - 8-way FCC68/RJ45 socket
Materials exposed to vacuum
-
NW25 versions - Stainless steel 304 & 316, 321 & 347, Fluoroelastomer, soda lime glass, Tungsten, trace of Nickel and Nickel Iron
-
DN40CF - Stainless steel (AISI 304 and 306), copper, ceramic, very small amount of copper braze
Standards:
-
Electromagnetic compatibility - EN 61326 (Class B Emissions)
-
Enclosure rating - IP40
Weight:
-
AIM-X NW25 - 810 g
-
AIM-XL NW25 - 860 g
-
AIM-X DN40CF - 1090 g
-
AIM-XL DN40CF - 1140 g
Click here for Edwards WRG-S-25NW Operation Manual D14703801https://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf
Click here for Edwards WRG Series Broshurehttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf
A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
