- Pumping Speed 95 m3/h
- Inlet Flange: NW 40
- Exhaust Flange: NW 40
- Continous Inlet Pressure:20 mbar
Shopping Cart ( )
Edwards XDS 100B Scroll Booster Pump, 100-120 V / 200-230 V, Single Phase, 50/60 Hz, A73201983
Condition:
Remanufactured
In Stock
Item#:PN20074
Mfr Part#:A73201983
Manufacturer:Edwards Vacuum
Features:
Fully Remanufactured Edwards XDS100B Scroll Booster Pump, 100-120 V / 200-230 V, Single Phase, 50/60 Hz, A73201983, XDS-100B
Edwards XDS100B Overview:
The Edwards XDS 100B Scroll Booster pump pump has an innovative bearing shield design that isolates the vacuum environment from all forms of lubricant, not only making it totally dry but hermetically sealed.
The Edwards XDS100 Scroll Booster pump is a compact and reliable booster pump which is suitable for use on vapour handling processes.
The XDS100B Booster with pumping mechanism sedign specifically for high pumping speeds. XDS-100B cannot exhaust directly to atmosphere, and must be backed by primery pump. XDS100B is intended for use in conjuction with Edwards XDS35i or Edwards XDS46i scroll pumps.
The body of XDS 100B booster pump includes a fixed scroll and orbital scroll. The XDS100B is a truly dry vacuum pump, as all the bearings with hydrocarbon lubricant are isolated from the vacuum space.
The Booster motor is controlled by an inverter, which manages the supply of current to the motor in accordance with operating conditions.
Edwards XDS 100B Scroll Booster pump does not have gas ballast option, condensation is not likely to occur in the pump as the normal operating pressure is too low.
- Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
- No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
- Simple single sided scroll design means routine maintenance is done in minutes for low cost of ownership and maximum up-time
- No oil changes required eliminating costs of contaminated oil disposal
- Inverter drive for consistent pumping speed at 50/60 Hz

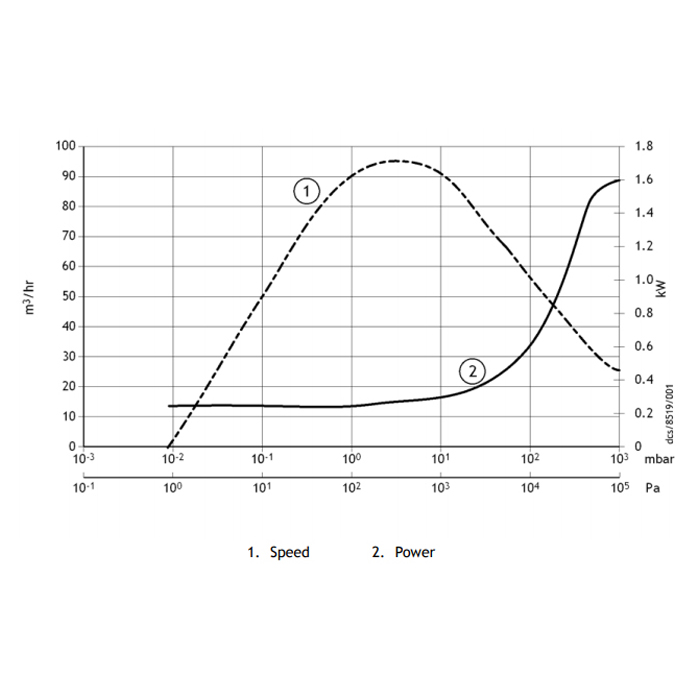

Edwards XDS 100B CHaracteristic:

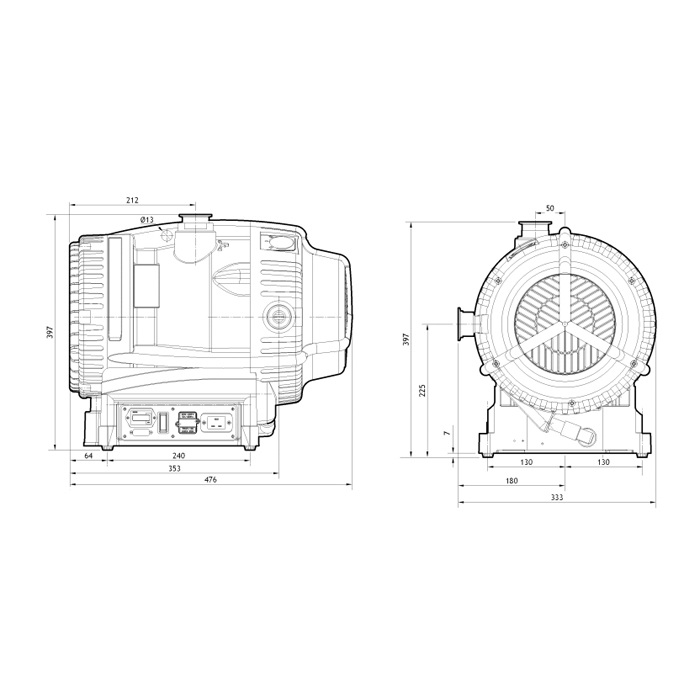

Edwards XDS 100B Dimensions:
A&J Vacuum also repair / rebuild and service all Edwards XDS5, XDS10, XDS35i and XDS 100B Scroll Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry 100B Pumps, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Remanufactured Edwards XDS100B Scroll Booster Pump, 100-120 V / 200-230 V, Single Phase, 50/60 Hz, A73201983, XDS-100B
Edwards XDS100B Technical Data:
| Continous Inlet Pressure: | 20 mbar |
| Pumping Speed | 95 m3/h |
| Inlet Flange: | NW 40 |
| Exhaust Flange: | NW 40 |
| Weight: | 48 kg / 105 lbs |
A&J Vacuum also repair / rebuild and service all Edwards XDS5, XDS10, XDS35i and XDS 100B Scroll Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry 100B Pumps, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
