Varian V70 Turbo Pump Controller V 70 Turbo Vacuum Pump Controller, 120/220 VAC, 9699505 969-9505
Condition:
Remanufactured
Call us for Availability
Item#:PN00318
Mfr Part#:9699505, 969-9505
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:
Varian V70 Turbo Pump Controller V 70 Turbo Vacuum Pump Controller, 120/220 VAC, 9699505
Overview:

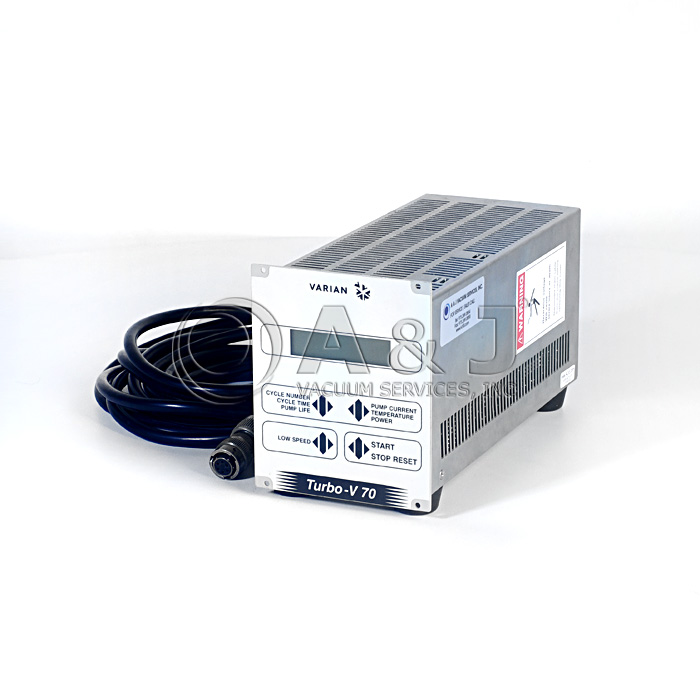

The Varian Turbo V 70 Controller is available in two versions:
- Model 969-9405 (220 Vac, 50-60 Hz)
- Model 969-9505 (120 Vac, 50-60 Hz)
The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer

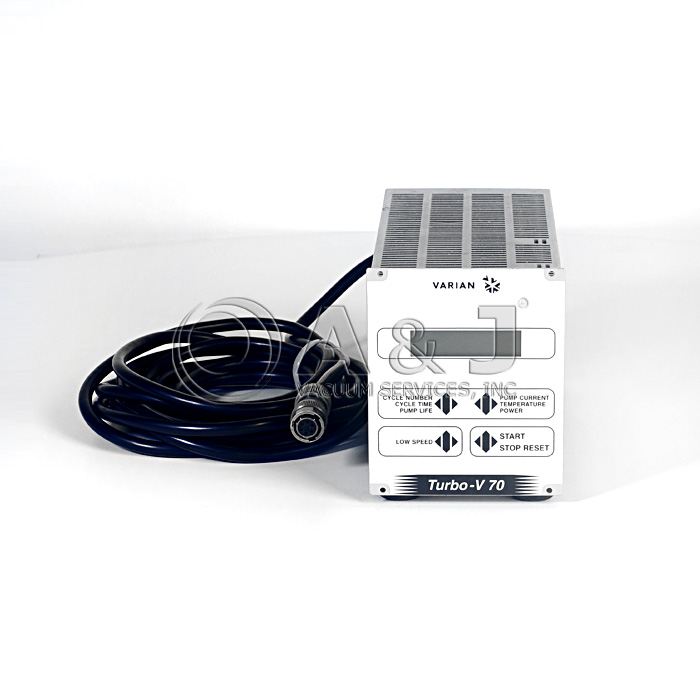

- Front panel display and keyboard

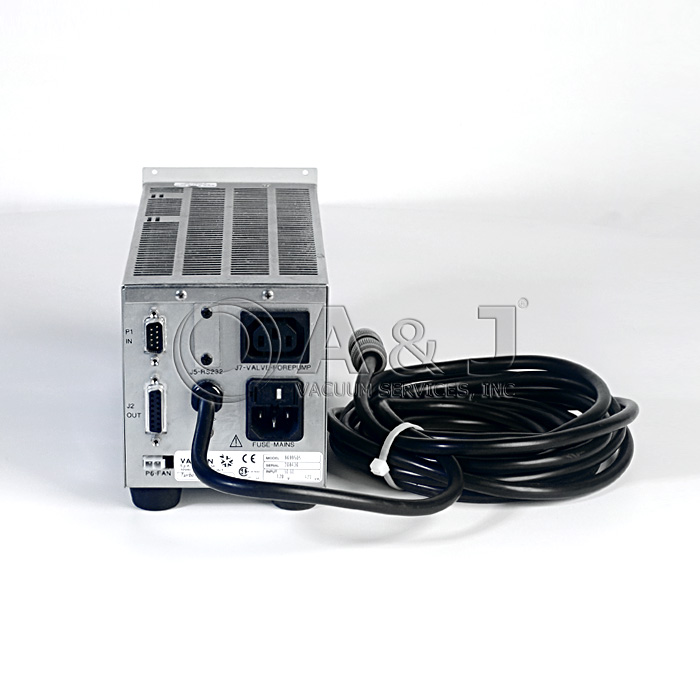

- Rear panel with input/output connectors
- PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits
The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump.
The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation.
A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
This item is non-returnable/non-refundable
Varian V70 Turbo Pump Controller V 70 Turbo Vacuum Pump Controller, 120/220 VAC, 9699505
Technical Data:
Input:
- Voltage: 100, 120, 220, 240 VAC
- Frequency: 47/63 Hz
- Power: 350 VA maximum
Output:
- Voltage: 54 VAC
- Frequency: 1250 Hz
- Power: 150 W maximum
Unit is fully rebuilt and comes with a FULL 3-MONTH WARRANTY!
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
