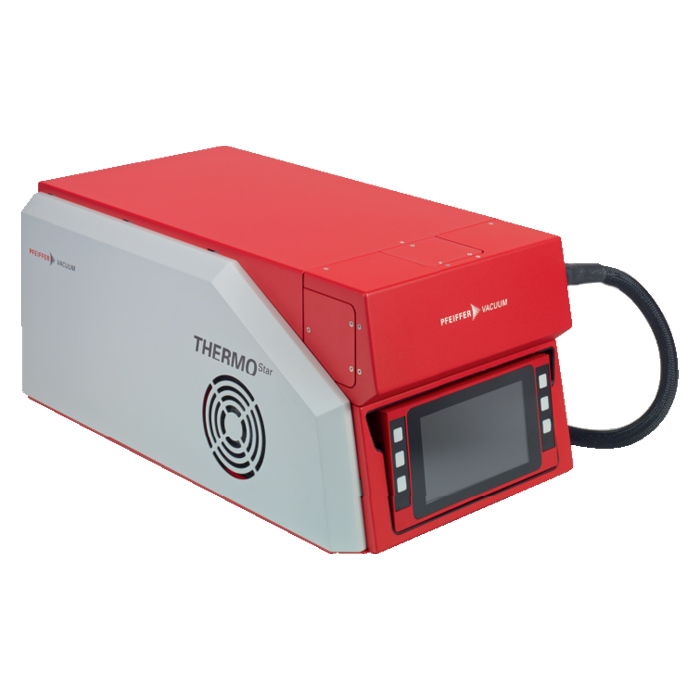

Pfeiffer Vacuum ThermoStar Mass Spectrometers

The Pfeiffer GSD 350 is capable of simultaneously analyzing multiple gas components. Before entering the PrismaPro, the sample gas passes through a pressure-reduction stage to ensure proper operating conditions in the vacuum environment. Within the PrismaPro, a portion of the gas is ionized, and the resulting ions are separated and detected according to their respective mass-to-charge ratios.

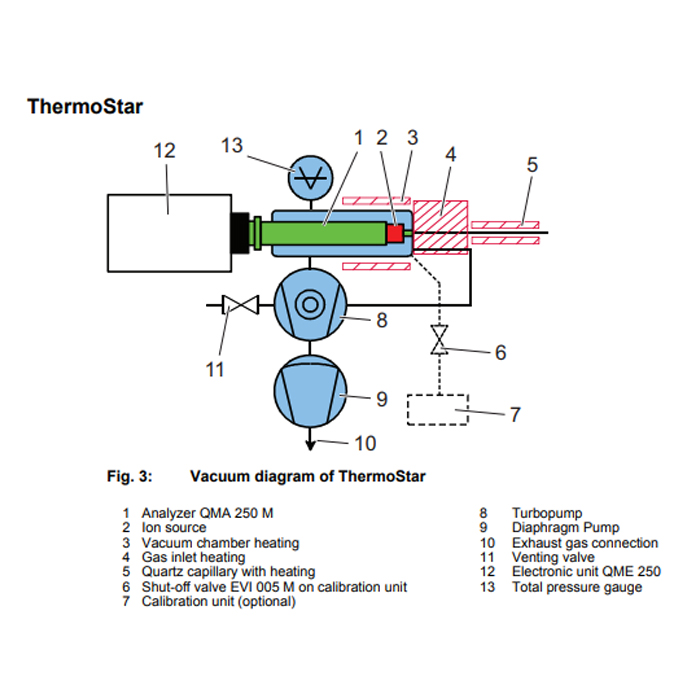

Two GSD350 configurations are available, each featuring a different gas inlet system (OmniStar or ThermoStar). The inlet system reduces the sample gas pressure from 1000 hPa to the working pressure required by the PrismaPro. Both versions share the same gas analysis unit as well as the high-vacuum and gas-handling system.

ThermoStarGSD350T1 Scope of Delivery:

GSD 350 OmniStar/ThermoStar
Installation hardware and small parts
- Allen key, WAF 2, WAF 2.5 AND WAF 3
- Metric open-end wrench, WAF 8, WAF 10 (2x) and WAF 14
- Imperial open-end wrench, WAF 5/16", WAF 3/8" and WAF 9/16"
- Two-sided socket key for the ion source
- Special tool for the orifice of the gas inlet system
- 2 O-rings made of FKM, 9.25 × 1.78 mm and 18.77 × 1.78 mm
- 2 slow fuses, 10 A
- For OmniStar with stainless steel capillary only
  - Hexagon socket wrench, TX20
  - Clamp collar set for 1/16" tube (5 pieces)
- For ThermoStar or GSD 350 with quartz capillary only
  - Sealing set for capillary 250 µm (ferrule) (5 pieces)
Transport protection for analyzer QMA 250 M
Assembly aid for analyzer QMA 250
Ethernet cable, 3 m length, red
Mains Cable
Operating instructions
- GSD 350 OmniStar/ThermoStar
- Components

ThermoStarGSD350T1 Applications:

Battery
- Degassing
- Recycling
Carbon Capture
- Amine Scrubbing
- Membrane Capture
- Moving Bed Process
- Pressure Swing Adsorption
- Direct Air Capture
Pharmaceutical Industry
- Laboratory Vacuum
R&D
- Laboratory Vacuum
Scientific Instruments
- Surface Analysis

A&J Vacuum repair / rebuild and service Leak Detectors & Mass Spectrometers and all other Pfeiffer equipment available on our site. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Condition:

New

Pfeiffer ThermoStar GSD 350 T2, 1 - 200 u, Yttrium Iridium Cathode, Heated Capillary 200 °C, 2 m, PT Q90 211 220 / PTQ90211220

Item#: PN57907 Mfr Part#: PT Q90 211 220 / PTQ90211220 Manufacturer: Pfeiffer Vacuum

Price upon request

Pfeiffer ThermoStar GSD 350 T2, 1 - 200 u, Yttrium Iridium Cathode, Heated Capillary 200 °C, 2 m, PT Q90 211 220 / PTQ90211220

Pfeiffer ThermoStar GSD 350 T2 Features:

Analyzes multiple gas components simultaneously
Ethernet interface type
Gas connection length of 2 m | 79 in

ThermoStar GSD 350 T2 / PTQ90211220 Overview:

ThermoStarGSD350T2 Scope of Delivery:

GSD 350 OmniStar/ThermoStar
Installation hardware and small parts
- Allen key, WAF 2, WAF 2.5 AND WAF 3
- Metric open-end wrench, WAF 8, WAF 10 (2x) and WAF 14
- Imperial open-end wrench, WAF 5/16", WAF 3/8" and WAF 9/16"
- Two-sided socket key for the ion source
- Special tool for the orifice of the gas inlet system
- 2 O-rings made of FKM, 9.25 × 1.78 mm and 18.77 × 1.78 mm
- 2 slow fuses, 10 A
- For OmniStar with stainless steel capillary only
  - Hexagon socket wrench, TX20
  - Clamp collar set for 1/16" tube (5 pieces)
- For ThermoStar or GSD 350 with quartz capillary only
  - Sealing set for capillary 250 µm (ferrule) (5 pieces)
Transport protection for analyzer QMA 250 M
Assembly aid for analyzer QMA 250
Ethernet cable, 3 m length, red
Mains Cable
Operating instructions
- GSD 350 OmniStar/ThermoStar
- Components

ThermoStarGSD350T2 Applications:

Battery
- Degassing
- Recycling
Carbon Capture
- Amine Scrubbing
- Membrane Capture
- Moving Bed Process
- Pressure Swing Adsorption
- Direct Air Capture
Pharmaceutical Industry
- Laboratory Vacuum
R&D
- Laboratory Vacuum
Scientific Instruments
- Surface Analysis

Condition:

New

Pfeiffer ThermoStar GSD 350 T3, 1 - 300 u, Yttrium Iridium Cathode, Heated Capillary 200 °C, 1A, PT Q90 211 230 / PTQ90211230

Item#: PN57908 Mfr Part#: PT Q90 211 230 / PTQ90211230 Manufacturer: Pfeiffer Vacuum

Price upon request

Pfeiffer ThermoStar GSD 350 T3, 1 - 300 u, Yttrium Iridium Cathode, Heated Capillary 200 °C, 1A, PT Q90 211 230 / PTQ90211230

Pfeiffer ThermoStar GSD 350 T3 Features:

Analyzes multiple gas components simultaneously
Ethernet interface type
Gas connection length of 2 m | 79 in

ThermoStar GSD 350 T3 / PTQ90211230 Overview:

ThermoStarGSD350T3 Scope of Delivery:

GSD 350 OmniStar/ThermoStar
Installation hardware and small parts
- Allen key, WAF 2, WAF 2.5 AND WAF 3
- Metric open-end wrench, WAF 8, WAF 10 (2x) and WAF 14
- Imperial open-end wrench, WAF 5/16", WAF 3/8" and WAF 9/16"
- Two-sided socket key for the ion source
- Special tool for the orifice of the gas inlet system
- 2 O-rings made of FKM, 9.25 × 1.78 mm and 18.77 × 1.78 mm
- 2 slow fuses, 10 A
- For OmniStar with stainless steel capillary only
  - Hexagon socket wrench, TX20
  - Clamp collar set for 1/16" tube (5 pieces)
- For ThermoStar or GSD 350 with quartz capillary only
  - Sealing set for capillary 250 µm (ferrule) (5 pieces)
Transport protection for analyzer QMA 250 M
Assembly aid for analyzer QMA 250
Ethernet cable, 3 m length, red
Mains Cable
Operating instructions
- GSD 350 OmniStar/ThermoStar
- Components

ThermoStarGSD350T3 Applications:

Battery
- Degassing
- Recycling
Carbon Capture
- Amine Scrubbing
- Membrane Capture
- Moving Bed Process
- Pressure Swing Adsorption
- Direct Air Capture
Pharmaceutical Industry
- Laboratory Vacuum
R&D
- Laboratory Vacuum
Scientific Instruments
- Surface Analysis

Condition:

New
