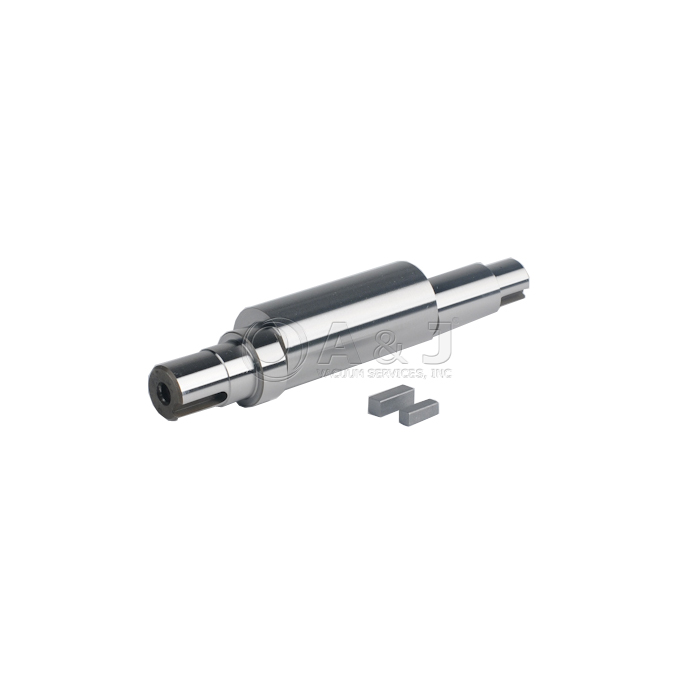

Leybold SC 15D Crank Shaft for Scroll Dry Pump SC15, SC-15, EK870000505, E870000505. OEM Original Leybold Spare Parts.
Also known as EK870000505 in some versions of the user manual.
This LEYBOLD SC 15D OEM Crank Shaft is the original Leybold Service Replacement Kit. Please refer to Operating Instructions for more detiles.
The Leybold SC15D scroll pump is also know as SCROLLVAC series pumps.
Each Leybold SC 15D Scroll pump 133 101 consists of two Archimedes spirals offset within each other by 180 degrees. Thus several crescent-shaped pockets of different sizes are created.
With the aid of an eccentric drive, the second spiral orbits about the fixed spiral thereby reducing, respectively increasing the volume of the pockets whereby the gases are conveyed from outside to inside thereby being compressed.
Click Here to view Leybold SC5D, SC15D, SC30D and SC60C Operation Manual
Typical Leybold SC Applications:
- Electron beam welding
- Lasers
- Leak detection systems
- Accelerators / synchrontrons
- Surface analysis instruments
- Scanning electron microscopes
- Load lock
- Spectroscopy
- Lamp manufacturing
- As a backing pump for turbomolecular pump systems
- LEYBOLD SC 15D OEM Crank Shaft Kit EK870000505
Inlet Pump Filters are also avaialble Click Here
Exhaust Pump Silencers Click Here
A&J Vacuum repair / rebuild and service all Leybold SC15 PN133101, SD5D, SC30D and SC60S Scroll Pump along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
