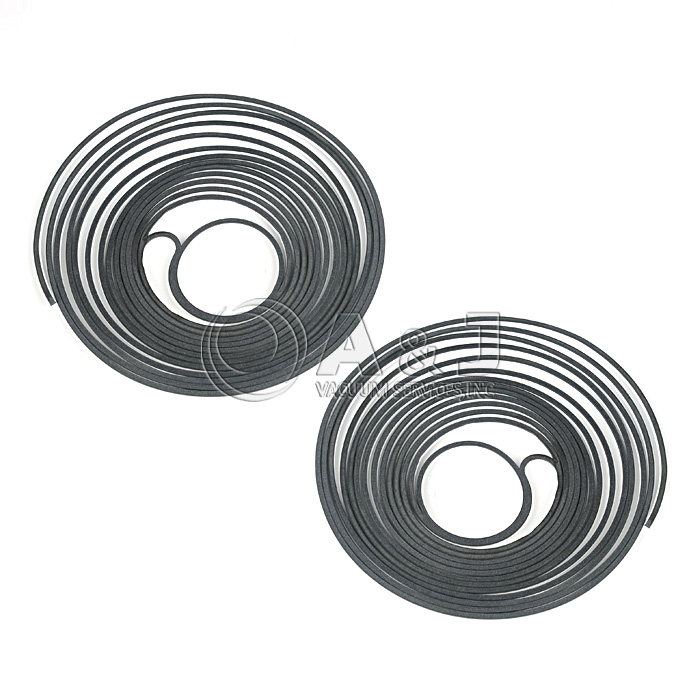

Leybold SC 60D Tip Seal Kit for SCROLLVAC SC60D Scroll Pump, E870000522, SC-60
Condition:
New
Item#:PN20277
Mfr Part#:E870000522
Manufacturer:Leybold
Features:
Tip Seal Kit for Leybold SC 60D Scroll Dry Pump SC60, SC-60, E870000522, EK870000522. OEM Original Leybold Spare Parts.
This LEYBOLD SC 60D OEM Tip Seal Kit is the original Leybold Tip Seal Replacement Kit. Please refer to Operating Instructions for more detiles.
The Leybold SC60D scroll pump is also know as SCROLLVAC series pumps.
Each Leybold SC 60D Scroll pump 133008 consists of two Archimedes spirals offset within each other by 180 degrees. Thus several crescent-shaped pockets of different sizes are created.
With the aid of an eccentric drive, the second spiral orbits about the fixed spiral thereby reducing, respectively increasing the volume of the pockets whereby the gases are conveyed from outside to inside thereby being compressed.
Click Here to view Leybold SC5D, SC15D, SC30D and SC60C Operation Manual
Typical Leybold SC Applications:
- Electron beam welding
- Lasers
- Leak detection systems
- Accelerators / synchrontrons
- Surface analysis instruments
- Scanning electron microscopes
- Load lock
- Spectroscopy
- Lamp manufacturing
- As a backing pump for turbomolecular pump systems
Inlet Pump Filters are also avaialble Click Here
Exhaust Pump Silencers Click Here
A&J Vacuum repair / rebuild and service all Leybold SC60 PN133008, SD15D, SC30D and SC5D Scroll Pump along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Tip Seal Kit for Leybold SC 60D Scroll Dry Pump SC60, SC-60, E870000522, EK870000522 OEM Leybold Parts
Click Here to view Leybold SC5D, SC15D, SC30D and SC60C Operation Manual
A&J Vacuum repair / rebuild and service all Leybold SC5, SD15D, SC30D and SC60S Scroll Pump along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
