- Pumping Speed (50/60 Hz): 51.5 / 61.8 cfm
- Ultimate Pressure: < 1.0 Torr
- Mains Connection: 3-ph, 230/460 V, 60 Hz | 3-ph, 400 V, 50 Hz
- Inlet Connection: NPT 1 1/4" Inside Thread
Shopping Cart ( )

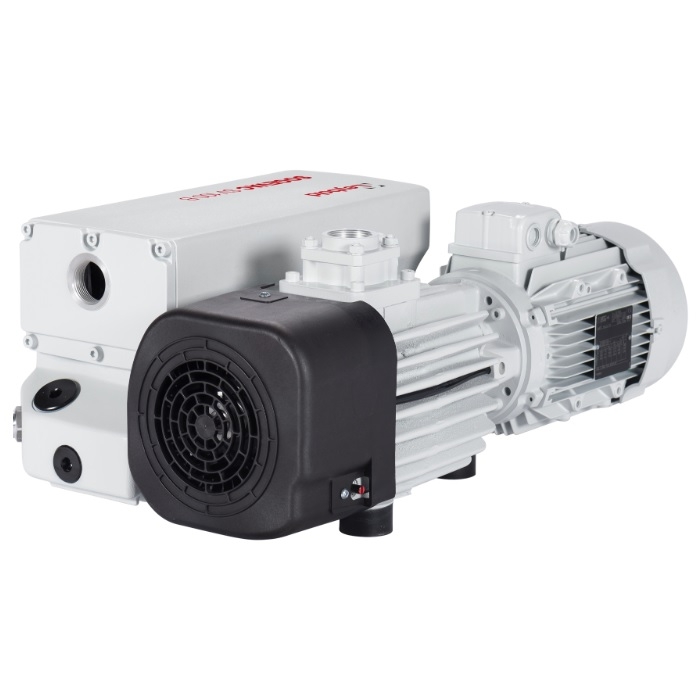

Leybold SOGEVAC SV 100 B Rotary Vane Pump with Gas Ballast Valve, Three Phase, 400 V, 230/460 V, 50/60 Hz, 960514
Condition:
New
Item#:PN18183
Mfr Part#:960514
Manufacturer:Leybold
Features:
Leybold SOGEVAC SV 100 B Rotary Vane Pump with Gas Ballast Valve, Three Phase, 400 V, 230/460 V, 50/60 Hz, 960514
Leybold SOGEVAC SV 100 B Features:
- Compact design and small footprint
- Very low and constant noise level in any working condition
- Integrated functions, no external pipe
- Simplified maintenance
SOGEVAC SV 100 B / 960514 Overview:
The new Oerlikon / Leybold SOGEVAC range of Rotary Vane Vacuum Pumps is setting new standards in the vacuum industry. The pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations.
Improved lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system.
All lubrication circuits as well as the gas ballast system have been integrated into the pumps’ major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals.
The new SOGEVAC B pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement.
SOGEVAC SV100B Applications:
- Vacuum packaging
- Vacuum processing
- Central vacuum systems
- Degassing
- Drying / Filling
- Freeze Drying
- Impregnation
- Leak testing
- Laser
- Handling / Lifting
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC SV 100B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold SOGEVAC SV 100 B Rotary Vane Pump with Gas Ballast Valve, Three Phase, 400 V, 230/460 V, 50/60 Hz, 960514

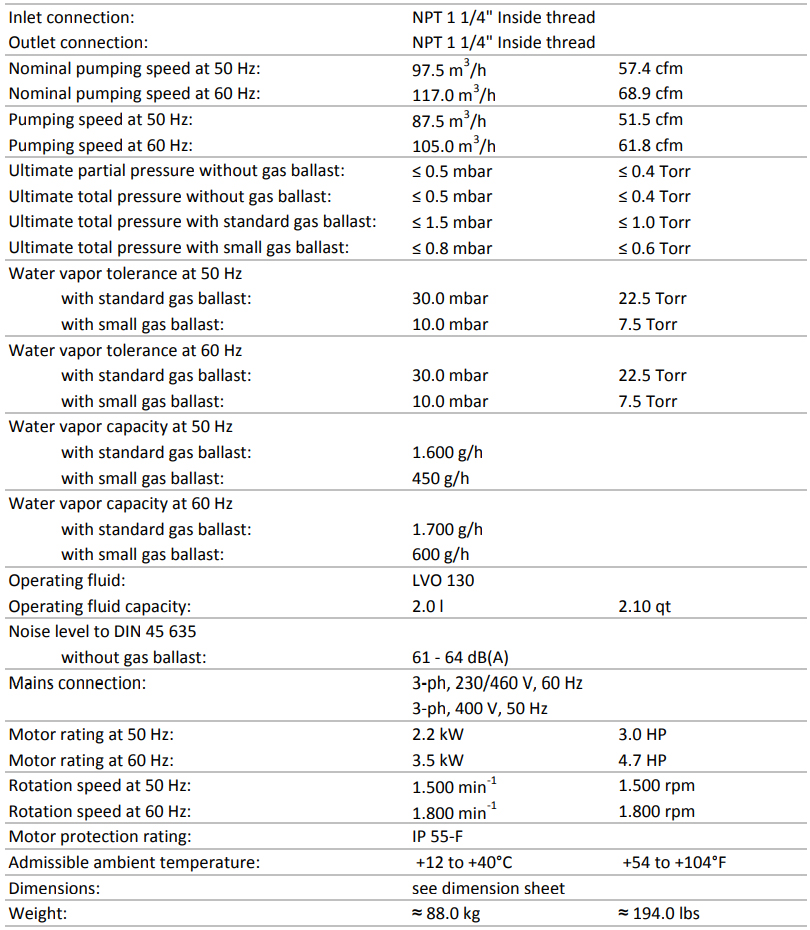

Leybold SOGEVAC SV 100 B Technical Data:
- Inlet connection: NPT 1 1/4" Inside thread
- Outlet connection: NPT 1 1/4" Inside thread
- Nominal pumping speed at 50 Hz: 97.5 m3/h | 57.4 cfm
- Nominal pumping speed at 60 Hz: 117.0 m3/h | 68.9 cfm

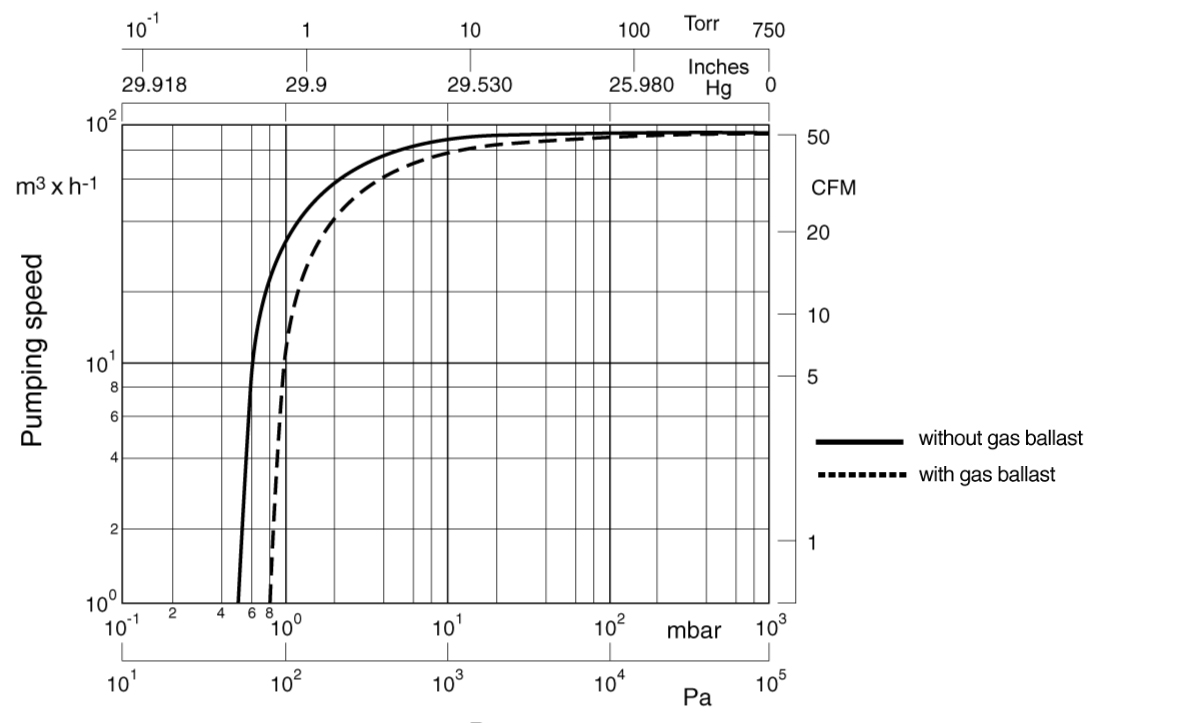

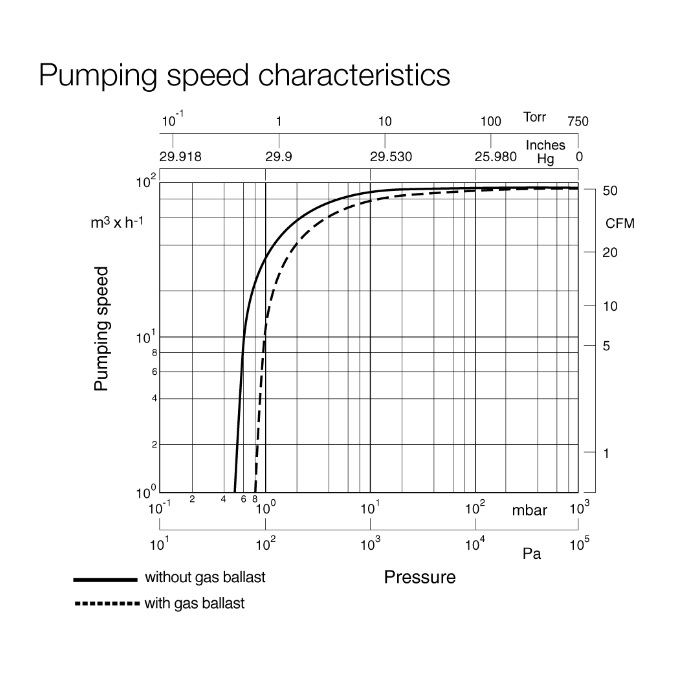

- Pumping speed at 50 Hz: 87.5 m3/h | 51.5 cfm
- Pumping speed at 60 Hz: 105.0 m3/h | 61.8 cfm
- Ultimate partial pressure without gas ballast: ≤ 0.5 mbar | ≤ 0.4 Torr
- Ultimate total pressure without gas ballast: ≤ 0.5 mbar | ≤ 0.4 Torr
- Ultimate total pressure with standard gas ballast: ≤ 1.5 mbar | ≤ 1.0 Torr
- Ultimate total pressure with small gas ballast: ≤ 0.8 mbar | ≤ 0.6 Torr
- Water vapor tolerance at 50 Hz -
- With standard gas ballast: 30.0 mbar | 22.5 Torr
- With small gas ballast: 10.0 mbar | 7.5 Torr
- Water vapor tolerance at 60 Hz -
- With standard gas ballast: 30.0 mbar | 22.5 Torr
- With small gas ballast: 10.0 mbar | 7.5 Torr
- Water vapor capacity at 50 Hz -
- With standard gas ballast: 1.600 g/h
- With small gas ballast: 450 g/h
- Water vapor capacity at 60 Hz -
- With standard gas ballast: 1.700 g/h
- With small gas ballast: 600 g/h
- Operating fluid: LVO 130
- Operating fluid capacity: 2.0 l | 2.10 qt
- Noise level to DIN 45 635 -
- Without gas ballast: 61 - 64 dB(A)
- Mains connection: 3-ph, 230/460 V, 60 Hz | 3-ph, 400 V, 50 Hz
- Motor rating at 50 Hz: 2.2 kW | 3.0 HP
- Motor rating at 60 Hz: 3.5 kW | 4.7 HP
- Rotation speed at 50 Hz: 1.500 min-1 | 1.500 rpm
- Rotation speed at 60 Hz: 1.800 min-1 | 1.800 rpm
- Motor protection rating: IP 55-F
- Admissible ambient temperature: +12 to +40 °C | +54 to +104 °F
- Weight: 88 kg | 194 lb
