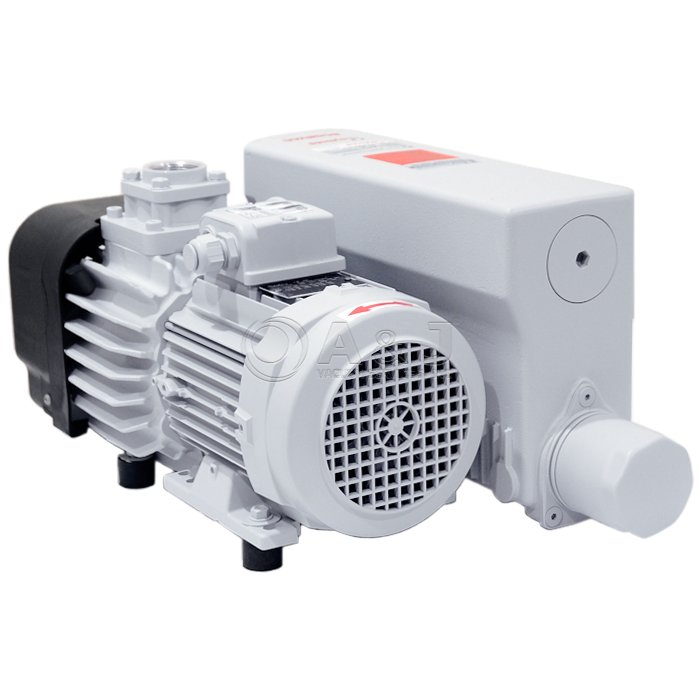

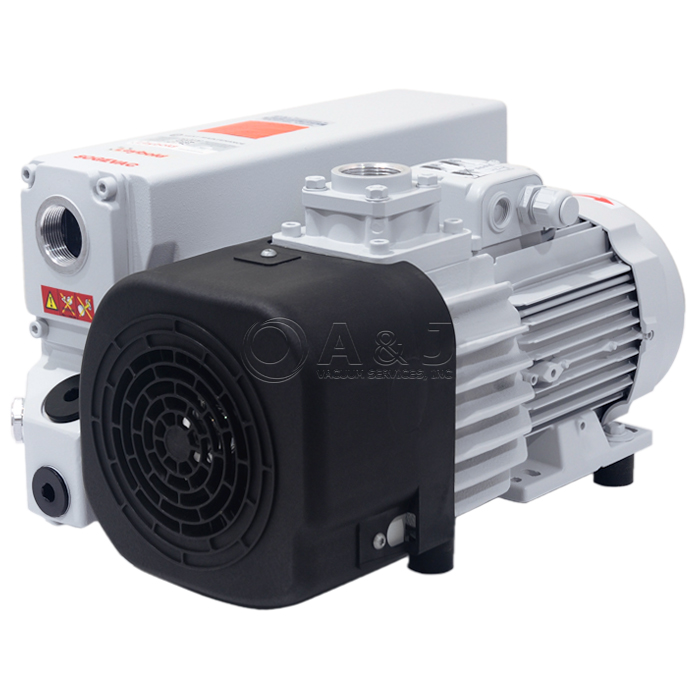

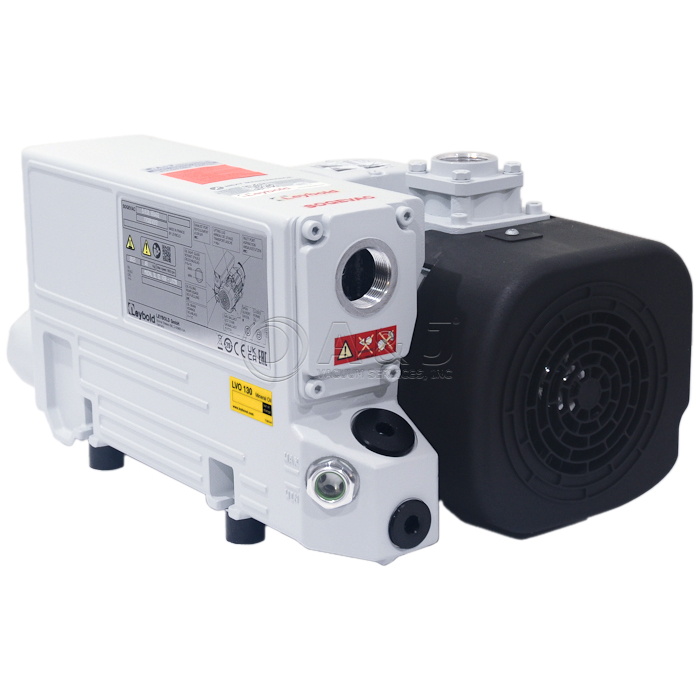

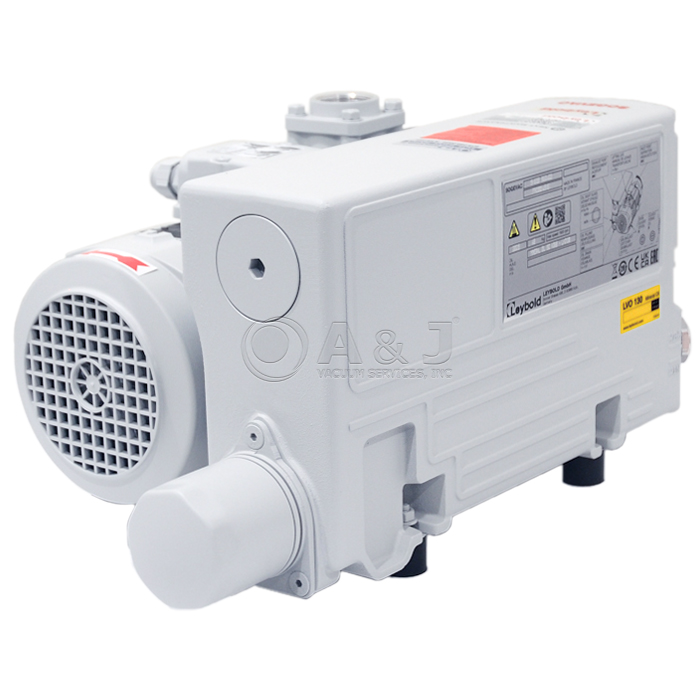

Leybold Sogevac SV 65 B Euro W/O Gas Ballast Rotary Vane Vacuum Pump, 960402

Leybold Sogevac SV 65 B Features:

• Small footprint, compact design
• Low noise level
• No external pipe
• No motor coupling up to SV65 B
• ATEX versions for categories 2 and 3, from SV40 B to SV100 B

Sogevac SV 65 B / 960402 Overview:

Oil-sealed rotary vane vacuum pumps are utilized across all fields of vacuum technology. They are well-suited for both industrial manufacturing and research applications. SOGEVAC pumps are used to produce rough and medium vacuum levels or serve as backing pumps in combination with Roots pumps or high vacuum pumps. These pumps are distinguished by their quiet operation and smooth performance.

The new SOGEVAC B pumps offer a compact design that minimizes spatial and design constraints for system integration. They are also compatible with most existing pump installations, requiring no special modifications for replacement.

Building on the reliable and user-friendly maintenance concept of the previous generation, the new SOGEVAC B pumps feature all service points accessible from the front. Improvements include a clearly positioned, angled oil sight glass visible from two directions, as well as a uniquely designed system for easier replacement of the exhaust demister. These enhancements make the new SOGEVAC B pumps exceptionally well-suited for a wide range of rough vacuum applications.

Sogevac SV65B Applications:

• Vacuum packaging (chamber machines, table top machines, modified atmosphere, rollstock…)
• Vacuum processing (cutting, blending, marinating, tumbling, stuffing…)
• Central vacuum systems
• Degassing
• Drying / Filling
• Freeze Drying
• Impregnation
• Leak testing
• Laser
• Handling / Lifting

A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair, Leybold Rotary Vane Pumps along with all other Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

Leybold SOGEVAC SV 65 BIFC Vacuum Pump, LVO702, 1-ph, 200-240 V, 50/60 Hz, 960465V013002

Leybold SOGEVAC SV 65 BIFC Features:

• Upgraded electronic drive
• Compact design and small footprint
• Very low and constant noise level in any working condition
• Integrated functions, no external pipe
• Simplified maintenance

SOGEVAC SV 65 BIFC / 960465V013002 Overview:

The Leybold SOGEVAC SV65 BIFC range of Oil Sealed Vacuum Pumps is setting new standards in the vacuum industry. Offers new upgraded electronic drive.

The new SOGEVAC pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations.

Improved lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system. All lubrication circuits as well as the gas ballast system have been integrated into the pumps’ major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals.

The pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement. Oil capacity 2 liters.

SOGEVAC SV65BIFC Applications:

• Vacuum packaging
• Vacuum processing
• Central vacuum systems
• Degassing
• Drying / Filling
• Freeze Drying
• Impregnation
• Leak testing
• Laser
• Handling / Lifting

A&J Vacuum Repair / Rebuild and Service Oerikon Leybold SOGEVAC SV 65 BI FC / 960465V0130002 Vacuum  Pumps, Oerlikon Leybold  Turbo Pumps along with all other Leybold  Vacuum Rotary Vane Pumps, Leybold Dry Scroll Pump repair, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

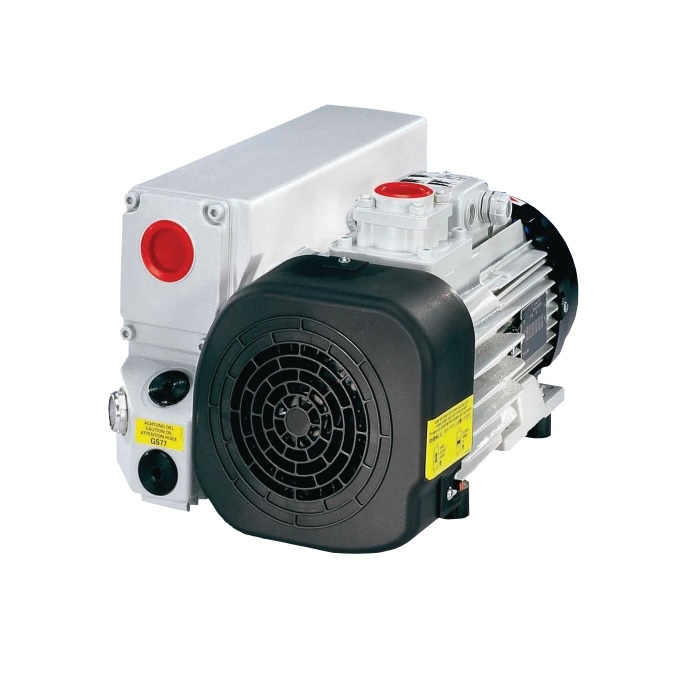

Leybold SOGEVAC SV 65 B Rotary Vane Pump with Gas Ballast Valve, Three Phase, 400 V, 230/460 V, 50/60 Hz, 960414

Leybold SOGEVAC SV 65 B Features:

• Compact design and small footprint
• Very low and constant noise level in any working condition
• Integrated functions, no external pipe
• Simplified maintenance

SOGEVAC SV 65 B / 960414 Overview:

The new Oerlikon / Leybold SOGEVAC range of Rotary Vane Vacuum Pumps is setting new standards in the vacuum industry. The pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations.

Improved lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system.

All lubrication circuits as well as the gas ballast system have been integrated into the pumps’ major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals.

The new SOGEVAC B pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement.

SOGEVAC SV65B Applications:

• Vacuum packaging
• Vacuum processing
• Central vacuum systems
• Degassing
• Drying / Filling
• Freeze Drying
• Impregnation
• Leak testing
• Laser
• Handling / Lifting

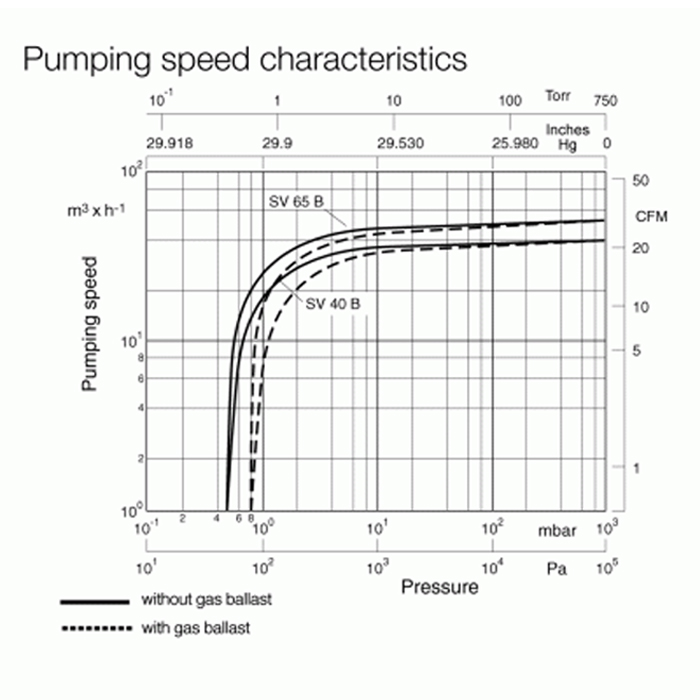

Leybold SOGEVAC SV65B Pumping speed:

Leybold SOGEVAC SV65B Dimensions:

A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC SV 65B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
