- Pumping Speed (50/60 Hz): 412 / 494 cfm
- Ultimate Pressure: < 8.0 x 10-2 mbar
- Mains Connection: 3-ph, 380/400/415/690 V, 50 Hz | 3-ph, 440/460 V, 60 Hz
- Inlet Connection: DN100 PN10 / 100 ISO-K

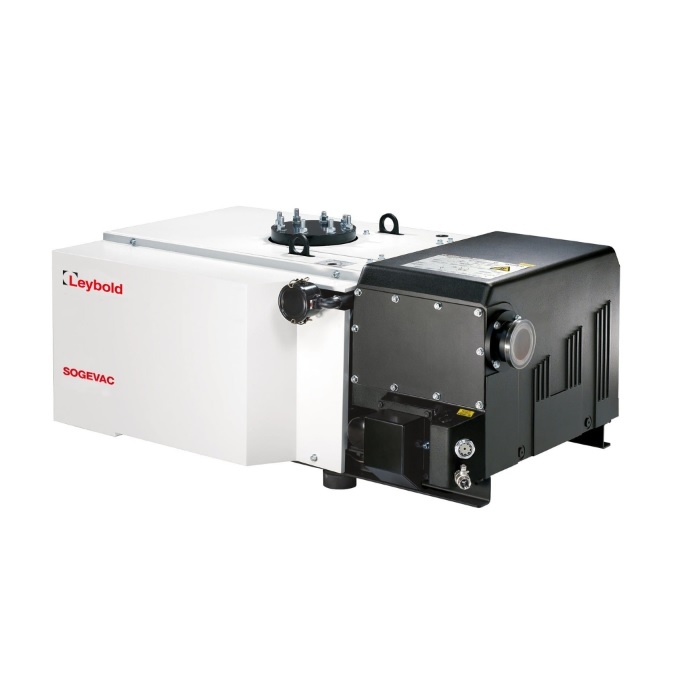

Leybold SOGEVAC SV 630 B EURO, Air Cooled Pump with Gas Ballast Valve, Three Phase, 400/690 V 50 Hz, 460 V 60 Hz, 960863
Leybold SOGEVAC SV 630 B Features:
- Compact design and small footprint
- Very low and constant noise level in any working condition
- Integrated functions, no external pipe
- Simplified maintenance
SOGEVAC SV 630 B / 960863 Overview:
The new Oerlikon / Leybold SOGEVAC SV 630 B Rotary Vane Vacuum Pump is setting new standards in the vacuum industry. The pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations.
Leybold SV630B Improved lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system.
All lubrication circuits as well as the gas ballast system have been integrated into the pumps’ major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals.
The new SOGEVAC SV 630B pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement.
SOGEVAC SV630B Applications:
- Vacuum packaging
- Vacuum processing
- Central vacuum systems
- Degassing
- Drying / Filling
- Freeze Drying
- Impregnation
- Leak testing
- Laser
- Handling / Lifting
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC SV 630/B SV 730Bvacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold SOGEVAC SV 630 B EURO, Air Cooled Pump with Gas Ballast Valve, Three Phase, 400/690 V 50 Hz, 460 V 60 Hz, 960863

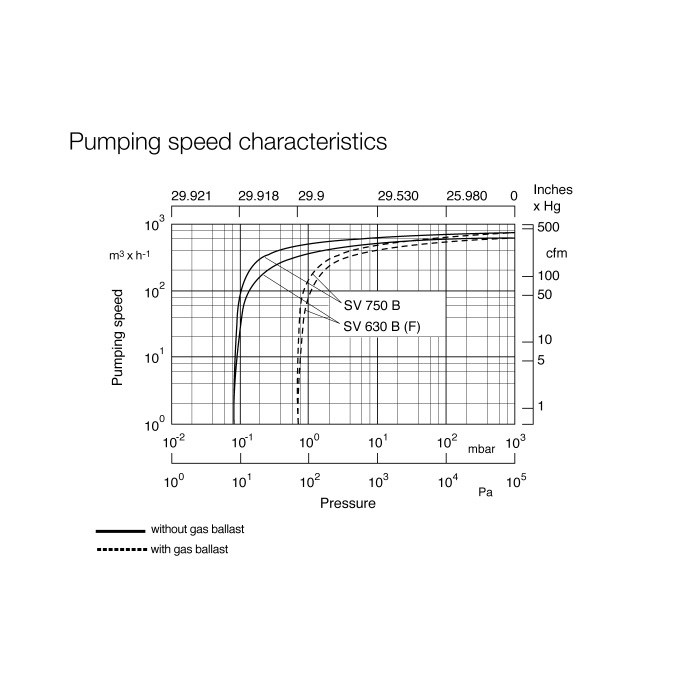

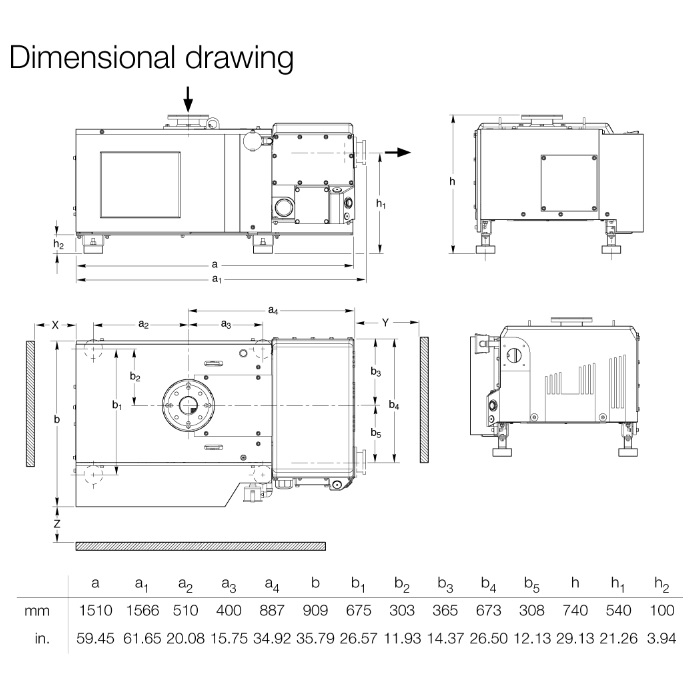

Leybold SOGEVAC SV 630 B Technical Data:
- Inlet connection: DN100 PN10 / 100 ISO-K
- Outlet connection: Optional
- Nominal pumping speed at 50 Hz: 700 m3/h | 412 cfm
- Nominal pumping speed at 60 Hz: 840 m3/h | 494 cfm
- Pumping speed at 50 Hz: 640 m3/h | 377 cfm
- Pumping speed at 60 Hz: 755 m3/h | 444 cfm
- Ultimate partial pressure without gas ballast: ≤ 8.0 x 10-2 mbar | ≤ 6.0 x 10-2 Torr
- Ultimate total pressure without gas ballast: ≤ 8.0 x 10-2 mbar | ≤ 6.0 x 10-2 Torr
- Ultimate total pressure:
- With one gas ballast valve: ≤ 0.7 mbar | ≤ 0.5 Torr
- With two gas ballst valves: ≤ 2.0 mbar | ≤ 1.5 Torr
- Water vapor tolerance at 50 Hz -
- With one gas ballast valve: 40.0 mbar | 30.0 Torr
- With two gas ballast valves: 60.0 mbar | 45.0 Torr
- Water vapor tolerance at 60 Hz -
- With one gas ballast valve: 50.0 mbar | 37.5 Torr
- With two gas ballast valves: 70.0 mbar | 52.5 Torr
- Water vapor capacity at 50 Hz -
- With one gas ballast valve: 17.0 kg/h
- With two gas ballast valves: 26 kg/h
- Water vapor capacity at 60 Hz -
- With one gas ballast valve: 24.0 kg/h
- With two gas ballast valves: 34.0 kg/h
- Operating fluid: LVO 130
- Operating fluid capacity -
- Min.: 20.0 l | 21.0 qt
- Max.: 23.0 l | 24.0 qt
- Noise level to DIN 45 635 -
- Without gas ballast: 72 - 75 dB(A)
- Mains connection: 3-ph, 380/400/415/690 V, 50 Hz | 3-ph, 440/460 V, 60 Hz
- Motor rating at 50 Hz: 15.0 kW | 25.0 HP
- Motor rating at 60 Hz: 18.5 kW | 25.0 HP
- Rotation speed at 50 Hz: 820 min-1 | 820 rpm
- Rotation speed at 60 Hz: 1.000 min-1 | 1.000 rpm
- Motor protection rating: IP 54-F / TEFC
- Admissible ambient temperature: +12 to +40 °C | +54 to +104 °F
- Weight: 650 kg | 1433 lb
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC SV 630/B SV 730Bvacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold SV630B and SV730V Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Leybold SOGEVAC SV 630 B EURO, Air Cooled Pump with Gas Ballast Valve, Three Phase, 400/690 V 50 Hz, 460 V 60 Hz, 960863
Leybold SOGEVAC SV 630 B Features:
- Compact design and small footprint
- Very low and constant noise level in any working condition
- Integrated functions, no external pipe
- Simplified maintenance
SOGEVAC SV 630 B / 960863 Overview:
The new Oerlikon / Leybold SOGEVAC SV 630 B Rotary Vane Vacuum Pump is setting new standards in the vacuum industry. The pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations.
Leybold SV630B Improved lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system.
All lubrication circuits as well as the gas ballast system have been integrated into the pumps’ major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals.
The new SOGEVAC SV 630B pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement.
SOGEVAC SV630B Applications:
- Vacuum packaging
- Vacuum processing
- Central vacuum systems
- Degassing
- Drying / Filling
- Freeze Drying
- Impregnation
- Leak testing
- Laser
- Handling / Lifting
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC SV 630/B SV 730Bvacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Specifications
Leybold SOGEVAC SV 630 B EURO, Air Cooled Pump with Gas Ballast Valve, Three Phase, 400/690 V 50 Hz, 460 V 60 Hz, 960863
Leybold SOGEVAC SV 630 B Technical Data:
- Inlet connection: DN100 PN10 / 100 ISO-K
- Outlet connection: Optional
- Nominal pumping speed at 50 Hz: 700 m3/h | 412 cfm
- Nominal pumping speed at 60 Hz: 840 m3/h | 494 cfm
- Pumping speed at 50 Hz: 640 m3/h | 377 cfm
- Pumping speed at 60 Hz: 755 m3/h | 444 cfm
- Ultimate partial pressure without gas ballast: ≤ 8.0 x 10-2 mbar | ≤ 6.0 x 10-2 Torr
- Ultimate total pressure without gas ballast: ≤ 8.0 x 10-2 mbar | ≤ 6.0 x 10-2 Torr
- Ultimate total pressure:
- With one gas ballast valve: ≤ 0.7 mbar | ≤ 0.5 Torr
- With two gas ballst valves: ≤ 2.0 mbar | ≤ 1.5 Torr
- Water vapor tolerance at 50 Hz -
- With one gas ballast valve: 40.0 mbar | 30.0 Torr
- With two gas ballast valves: 60.0 mbar | 45.0 Torr
- Water vapor tolerance at 60 Hz -
- With one gas ballast valve: 50.0 mbar | 37.5 Torr
- With two gas ballast valves: 70.0 mbar | 52.5 Torr
- Water vapor capacity at 50 Hz -
- With one gas ballast valve: 17.0 kg/h
- With two gas ballast valves: 26 kg/h
- Water vapor capacity at 60 Hz -
- With one gas ballast valve: 24.0 kg/h
- With two gas ballast valves: 34.0 kg/h
- Operating fluid: LVO 130
- Operating fluid capacity -
- Min.: 20.0 l | 21.0 qt
- Max.: 23.0 l | 24.0 qt
- Noise level to DIN 45 635 -
- Without gas ballast: 72 - 75 dB(A)
- Mains connection: 3-ph, 380/400/415/690 V, 50 Hz | 3-ph, 440/460 V, 60 Hz
- Motor rating at 50 Hz: 15.0 kW | 25.0 HP
- Motor rating at 60 Hz: 18.5 kW | 25.0 HP
- Rotation speed at 50 Hz: 820 min-1 | 820 rpm
- Rotation speed at 60 Hz: 1.000 min-1 | 1.000 rpm
- Motor protection rating: IP 54-F / TEFC
- Admissible ambient temperature: +12 to +40 °C | +54 to +104 °F
- Weight: 650 kg | 1433 lb
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC SV 630/B SV 730Bvacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
