- Fully Remanufactured
- High Pumping Speeds for Four Distinct Gases: Hydrogen, Helium, Nitrogen, Argon
- Excellent Resistance to Vibration Resulting From Sturdy Mechanical Bearings
- Incorporates a DN 160 ISO-K Inlet Flange; DN 25 ISO-KF Outlet Flange
Shopping Cart ( )
Leybold Turbovac 450 iX, RS 485, High-Vacuum Turbo Pump, DN 160 ISO-K, 830071V3300
Condition:
Remanufactured
Call us for Availability
Item#:PN24210
Mfr Part#:830071V3300
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Fully Remanufactured Leybold Turbovac 450 iX, RS 485, High-Vacuum Turbo Pump, DN 160 ISO-K, 830071V3300
Leybold Turbovac 450 iX (w/ DN160 ISO-K Inlet Flange) - Product Overview:
With the Leybold Turbovac 450 iX, high functionality meets outstanding performance. Our Model 450 iX turbomolecular pump range with an integrated vacuum system controller provides many features that have, until now, been available only within costly external control units. With the new Leybold Turbovac 450 iX, valuable accessories including forevacuum pumps, gauges, coolers, valves, and many other varieties of accessories can now be easily controlled via the turbo pump.
Specifically designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 size range, the Leybold Turbovac 450 iX features a cutting-edge rotor and drag stage design, contributing to high performance and an unparalleled pumping speed, especially for light gas varieties.
A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will boost your productivity and reduce cost of ownership.

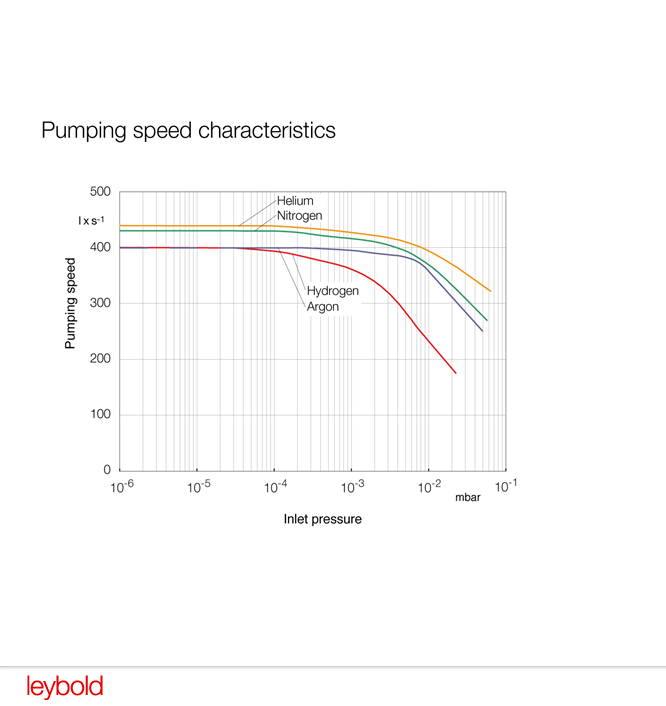

Leybold Turbovac 450 iX Pumping Speed:
Leybold Turbovac 450 iX - Typical Applications:
- Helium Leak Detectors
- Mass Spectrometers (Gas Chromatography GC-MS), Liquid Chromatography (LC-MS), Residual Gas Analysis, Mobile Analytical Systems, etc.)
- Electron Beam Microscopy
- XHV-/UHV Systems
- Transfer Chambers
Leybold Turbovac 450 iX - Technical Features
- Oil-Free Pump
- High Pressure Foreline Tolerance
- Excellent Resistance to Vibration Due to Proven Mechanical Bearings
- Efficient Convection Cooling Due to a Large Number of Cooling Fans
- Purge Gas/Venting Connection
- Installation in Any Orientation
- Flexible Attachment of the Frequency Converter to the Pump
- Small Exhaust Footprint
Leybold Turbovac 450 iX - User Advantages:
- Easy to Integrate Into Complex Vacuum Systems
- Space-Saving; Maneuverability
- Prepared for Pumping of Slightly-Corrosive Gases, Owing to Seal Gas Connection
- High Reliability Due to Self-Monitoring
Leybold Turbovac 450 iX Dimensions:
A&J Vacuum Services offers full repair/service of Leybold Turbovac 450 iX Turbo Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We likewise offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Fully Remanufactured Leybold Turbovac 450 iX, RS 485, High-Vacuum Turbo Pump, DN160 ISO-K, 830071V3300
Leybold 450 iX Technical Data:
A&J Vacuum Services offers full repair/service of Leybold Turbovac 450iX Turbo Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We likewise offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Item#:PN07681
Mfr Part#:ISO63-250DCC316
Condition: In Stock
New
In Stock
$21.00
Item#:PN15143
Mfr Part#:DY-ISO160OCRVSA
Condition: In Stock
New
In Stock
Price upon request
Item#:PN18229
Mfr Part#:800102V1002
Condition: Out of Stock
New
$105.00
Item#:PN23245
Mfr Part#:800135V0006
Condition: Out of Stock
New
$366.00
Item#:PN23246
Mfr Part#:800135V0005
Condition: In Stock
New
In Stock
$517.00
Item#:PN23247
Mfr Part#:800110V0021
Condition: In Stock
New
In Stock
$135.00
Item#:PN23248
Mfr Part#:800092V0300
Condition: Out of Stock
New
$568.00
Item#:PN23249
Mfr Part#:800092V0100
Condition: Out of Stock
New
$525.00
Item#:PN23250
Mfr Part#:800100V0003
Condition: In Stock
New
In Stock
$1,555.99
Item#:PN23251
Mfr Part#:800100V0001
Condition: Out of Stock
Discontinued
$1,727.00
Item#:PN23254
Mfr Part#:800136V0005
Condition: Out of Stock
New
$681.00
Item#:PN23255
Mfr Part#:800136V0006
Condition: Out of Stock
New
$414.00
Item#:PN23257
Mfr Part#:800110V0022
Condition: Out of Stock
New
$67.00
Item#:PN23258
Mfr Part#:800120V0014
Condition: Out of Stock
New
$261.00
Item#:PN23264
Mfr Part#:800100V0004
Condition: In Stock
New
In Stock
$2,200.00
Item#:PN23267
Mfr Part#:800133V0032
Condition: Out of Stock
New
$246.00
Item#:PN23271
Mfr Part#:800096V0300
Condition: Out of Stock
New
$524.99
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
