- Includes a Cutting-Edge Rotor and High-Performance Drag Stage Design
- High Pumping Speed for Four Distinct Gases: Nitrogen, Argon, Helium, and Hydrogen
- Utilizes Convection Standard Cooling Method; Advanced Temperature Stability
- Incorporates DN 100 CF Inlet Flange; DN 25 ISO-KF Outlet Flange

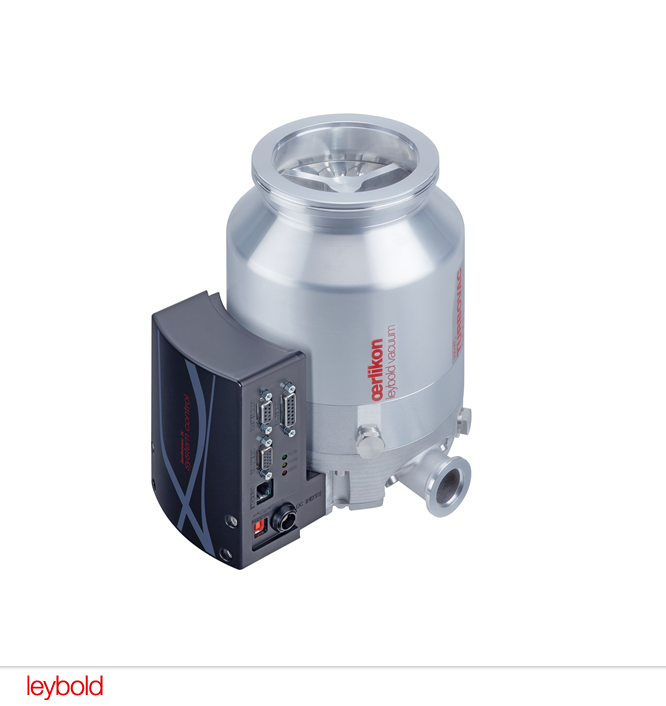

Leybold Turbovac 350 iX High-Vacuum Turbo Pump, RS 485, DN 100 CF, 830061V3300
Leybold Turbovac 350 iX Features:
- Ultimate pressure: < 5.0 x 10-10 mbar
- Pumping speed (Ar): 260 l/s
- Pumping speed (He): 360 l/s
- Pumping speed (H₂): 350 l/s
- Pumping speed (N₂): 290 l/s
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fans
Turbovac 350 iX / 830061V3300 Overview:
With the Leybold Turbovac 350 iX, high functionality meets outstanding performance. Our Model 350 iX turbomolecular pump range with an integrated vacuum system controller provides many features that have, until now, been available only within costly external control units. With the new Turbovac 350 iX, valuable accessories including forevacuum pumps, gauges, coolers, valves, and many other varieties of accessories can now be easily controlled via the turbo pump.
Specifically designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 size range, the Leybold Turbovac 350 iX features a cutting-edge rotor and drag stage design, contributing to high performance and an unparalleled pumping speed, especially for light gas varieties.
A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will boost your productivity and reduce cost of ownership.
Turbovac350iX Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 350iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 350 iX High-Vacuum Turbo Pump, RS 485, DN 100 CF, 830061V3300

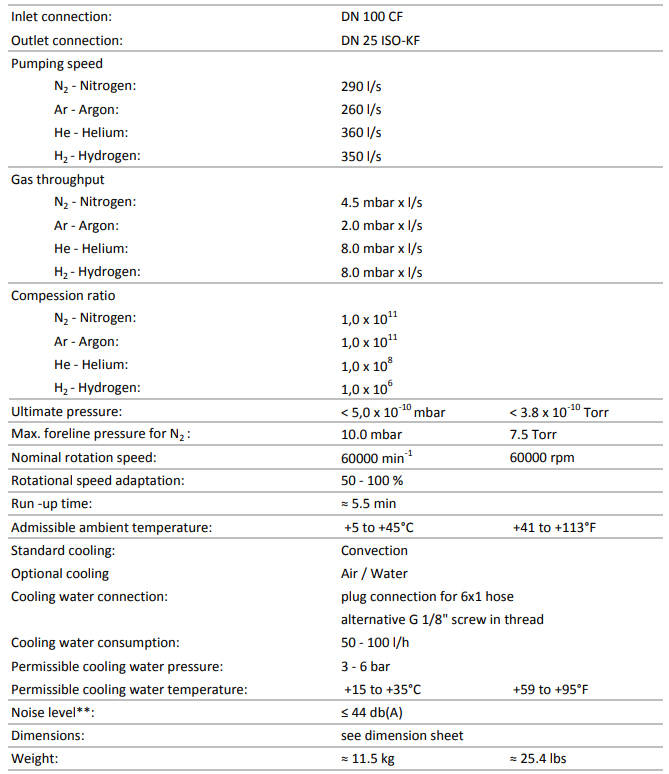

Leybold Turbovac 350 iX Technical Data:
| Connection Cooling | 6x1 mm flexible hose quick connection 1/8" BSPP (G) Female |
| Connection Vacuum Outlet Flange | DN 25 ISO-KF (NW25) |
| Connection Vacuum Inlet Flange | DN 100 CF (6") |
| Cooling Method | Air Cooling (convection) Air Cooling (forced - fan) Water Cooling |

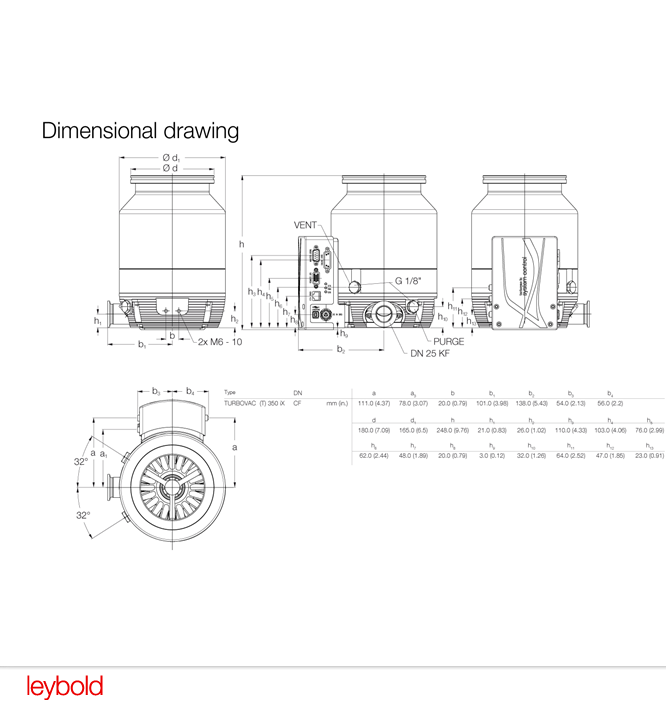

| Dimension Height | 0.222 m |
| Dimension Length | 0.165 m |
| Dimension Width | 0.165 m |
| IP Rating | IP40 |
| Noise / Sound Level | 44.00 db(A) 44.00 db(A) 44.00 db(A) |
| Supply Frequency | DC Voltage |
| Supply Voltage | DC 24V DC 48V |
| Weight | 12 kg | 26 lb |
| Connection Inlet / Outlet Flange | DN 100 CF (6") | DN 25 ISO-KF (NW25) |
| Product Certification | CE UL (61010-1 3rd Edition) CSA (C22.2 No.61010-1-12) |
| Compression Ratio Air Nitrogen | 1.000 × 10¹¹ |
| Compression Ratio Helium | 1.000 × 10⁸ |
| Compression Ratio Hydrogen | 1.000 × 10⁶ |
| Power at Ultimate | 15 W |
| Power Consumption Max | 240 W |
| Power Total Rated | 240 W |
| Pressure Ultimate | 5.000 × 10⁻¹⁰ mbar |

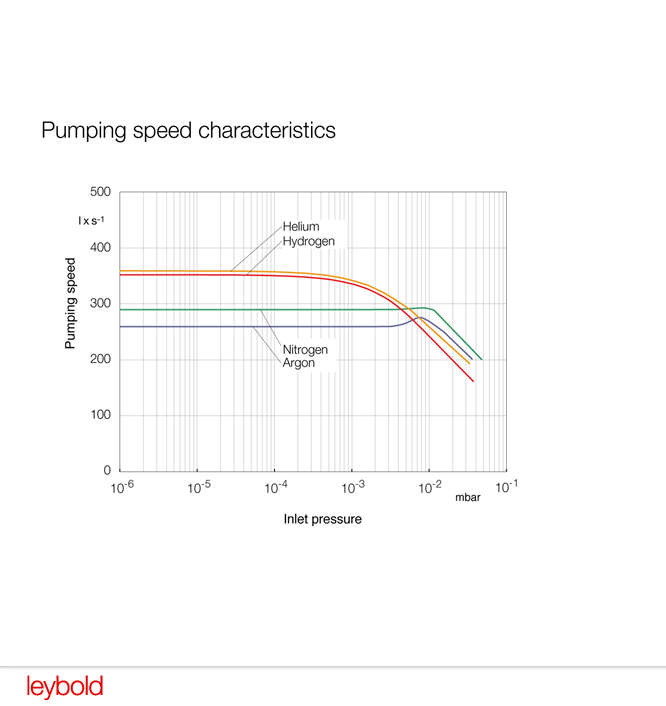

| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 290 l/s |
| Pumping Speed Argon | 260 l/s |
| Pumping Speed Helium | 360 l/s |
| Pumping Speed Hydrogen | 350 l/s |
| Ramp Up Time | 330 s |
| Nominal rotational speed | 1000 Hz |
| Pressure Backing Max | 10 mbar |
| Compression Ratio Argon | 1.000 × 10¹¹ |
| Temperature Ambient Operation Max | 40.00 °C |
| Temperature Ambient Storage Max | 70.00 °C |
| Temperature Ambient Operation Min | 5.00 °C |
| Temperature Ambient Storage Min | -15.00 °C |
| Magnetic Field Resistance Max (covering worst direction - come and consult us for more details) | 3.000 × 10⁻³ T |
| Altitude Max | 4000.00 m |
| Flow Cooling Water Min | 0.014 l/s |
| Temperature Cooling Water Max | 35.00 °C |
| Temperature Cooling Water Min | 15.00 °C |
| Flow Cooling Water Max | 0.028 l/s |
| Pressure Permissible Supply Cooling Water - Min and Max | 4000.00 mbar 4000.00 mbar |
| Dry or Wet Pump | Dry |
| Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar Ultra High Vacuum: 1·10⁻⁷ - 1·10⁻¹¹ mbar |
| High / Medium / Rough Vacuum Classification | High Vacuum Pump |
| Vacuum Pump Technology | Turbomolecular Pump - hybrid bearing oil free |
| Communication Interface Protocol | USS Universal Serial Interface Protocol |
| Communication Interfaces Customer | RS485 (serial) REMOTE X1 (Parallel I/O) USB |
| Connection electrical comms interface connector | DSUB 9-PIN - Female DSUB HD 15-PIN - Female (high density) USB type B - Female ANYBUS socket IP20 for all modules |
| Installation | Any orientation |
| variantTmpPerformanceModel | TURBOVAC iX - Xtention box controller |
A&J Vacuum Services offers full repair and service of Leybold Turbovac 350iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold_TURBOVAC_90_250_350_450_IX
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
