Leybold Turbo Control i for TURBOVAC i and TURBOVAC iX, Turbo Pump, 800100V0004
Condition:
New
In Stock
Item#:PN23264
Mfr Part#:800100V0004
Manufacturer:Leybold
Features:
Leybold Turbo Control i for TURBOVAC i and TURBOVAC iX, Turbo Pump, 800100V0004
Leybold Turbo Control i Features:
- Observe TURBOVAC i(X) during operation
- Pump start / stop / activate standby speed / error reset
- Leybold Turbo Control i show us parameter on the display (nominal speed, current, bearing temperature, pressure values)
- Show warning and error memory with description
- Read and write parameters
- Set functions of the interface X1
- Set functions of the 24-VDC accessory connections X201, X202, X203
- Activate TURBOVAC i(X) depending on pressure
- Attach laptop and operate TURBOVAC i(X) via web server
- View logged data in real-time
- Read out logging memory and analyse with DataViewer PC tool
- Read out parameter set and error memory of the TURBOVAC i(X) with a PC
Turbo Control i / 800100V0004 Overview:

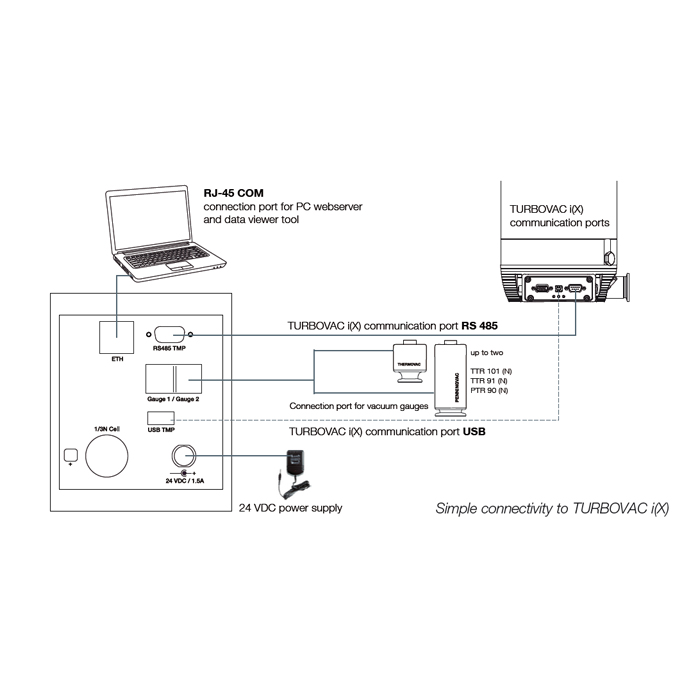

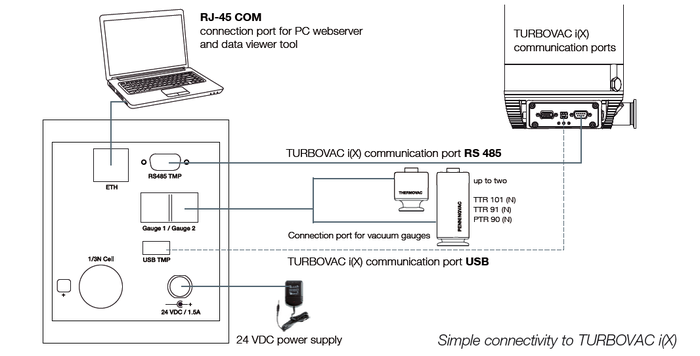

The Leybold TURBO CONTROL i serves to control and monitor a TURBOVAC i and TURBOVAC iX turbomolecular pump. Only one pump can be controlled and monitored. The 24 VDC voltage supply can be provided by a plug power supply with round plug. The power supply unit is available as an accessory. The Leybold TURBO CONTROL i has two communication channels (RS 485 & USB) to the pump control and provides the possibility of attaching two measuring gauges. Leybold Turbo Control can be connect a remote computer via the integrated Ethernet port to the web server of the TURBO-CONTROL i. Then use the installed internet browser to control and monitor the pump. The recorded data can be displayed and evaluated by means of the external Tool DataViewer. The Leybold TURBO-CONTROL i contains a battery (button cell) for data buffering, and can be installed in a rack or be mounted in a table housing provided for it. The table housing is available as an accessory.
A&J Vacuum Services offers full repair/service of Leybold Pumps, along with all other brands offered on our website. AJVS also services Leybold Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbo Control i for TURBOVAC i and TURBOVAC iX, Turbo Pump, 800100V0004

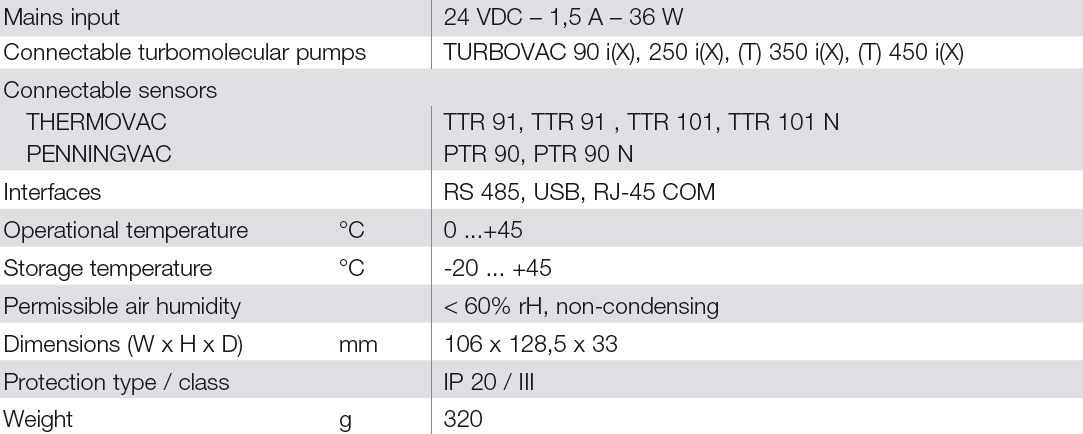

Leybold Turbo Control i Technical Data:
A&J Vacuum Services offers full repair/service of Leybold Pumps, along with all other brands offered on our website. AJVS also services Leybold Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
