- Pumping Speed at 50 Hz: 23.6 cfm
- Pumping Speed at 60 Hz: 28.3 cfm
- Mains Connection: 230/400V at 50 Hz | 460V at 60 Hz
- Inlet Connection: DN 40 ISO-KF
Shopping Cart ( )

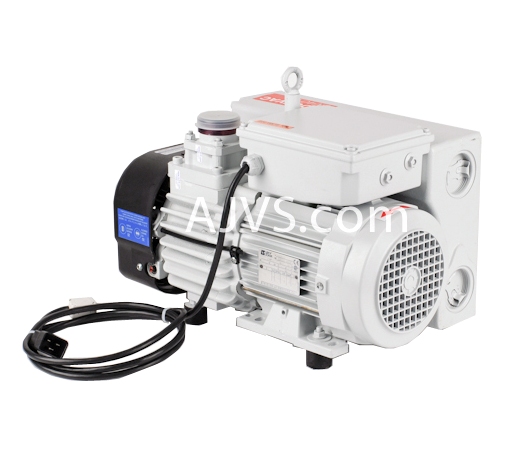

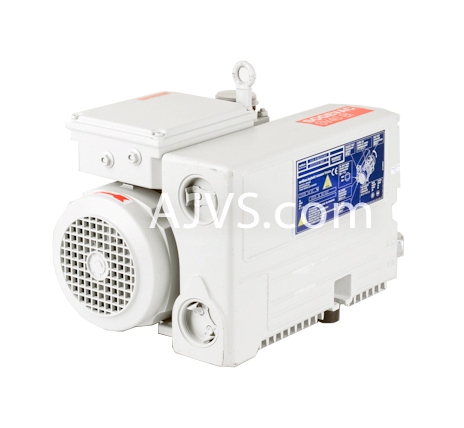

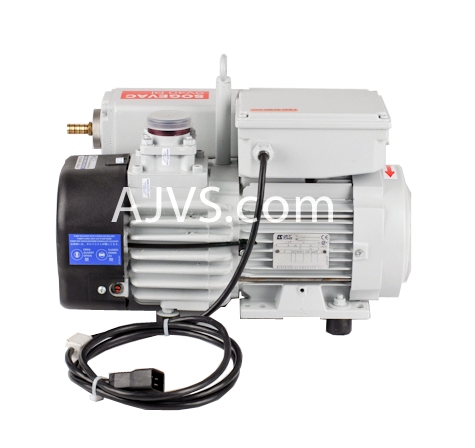

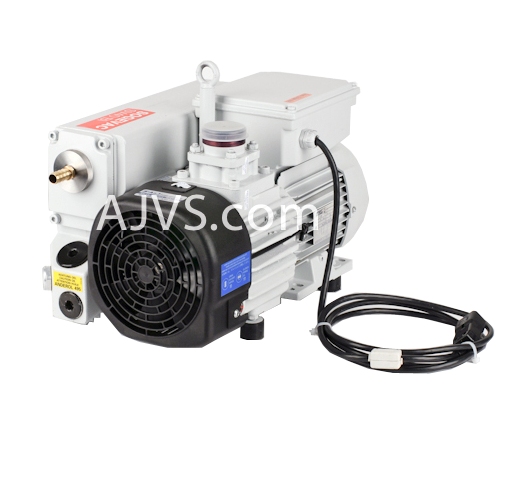

Leybold / Oerlikon SOGEVAC SV40 BI Rotary Vane Pump, 230 / 400 V, 50 Hz | 460 V, 60 Hz, 960331V3011
Condition:
Remanufactured
Call us for Availability
Item#:PN19691
Mfr Part#:960331V3011
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold / Oerlikon SOGEVAC SV40 BI Rotary Vane Pump, 230 / 400 V, 50 Hz | 460 V, 60 Hz, 960331V3011
Leybold SOGEVAC SV40 BI Features:
- Compact design and small footprint
- Very low and constant noise level in any working condition
- Integrated functions, no external pipe
- Simplified maintenance
SOGEVAC SV40 BI / 960331V3011 Overview:
The new Leybold / Oerlikon SOGEVAC range of Rotary Vane Vacuum Pumps is setting new standards in the vacuum industry.
The new SOGEVAC B pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations.
Improved lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system.
All lubrication circuits as well as the gas ballast system have been integrated into the pumps’ major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals.
The new SOGEVAC B pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement.
SOGEVACSV40BI Applications:
- Vacuum packaging
- Vacuum processing
- Central vacuum systems
- Degassing
- Drying / Filling
- Freeze Drying
- Impregnation
- Leak testing
- Laser
- Handling / Lifting
A&J Vacuum repair / rebuild and service all Leybold SV40 Bi, Leybold SV65 / 960331V3011 Sogevac Pumps, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold / Oerlikon SOGEVAC SV40 BI Rotary Vane Pump, 230 / 400 V, 50 Hz | 460 V, 60 Hz, 960331V3011
Leybold SOGEVAC SV40 BI Technical Data:
| Nominal pumping speed (50Hz | 60Hz) | 42 m3/h (24.8 cfm) | 55 m3/h (32.5 cfm) |
| Pumping speed according to PNEUROP (50Hz | 60Hz) | 40 m3/h (23.6 cfm) | 48 m3/h (28.3 cfm) |
| Ultimate total pressure without gas ballast (50Hz | 60Hz) | ≤ 5 x 10-2 mbar (≤ 3.75 x 10-2 Torr) | ≤ 5 x 10-2 mbar (≤ 3.75 x 10-2 Torr) |
| Ultimate total pressure with gas ballast (50Hz | 60Hz) | ≤ 0.5 mbar (≤ 0.4 Torr) | ≤ 0.5 mbar (≤ 0.4 Torr) |
| Water vapor tolerable load with gas ballast (50Hz | 60Hz) | 10.0 mbar (7.5 Torr) | 10.0 mbar (7.5 Torr) |
| Motor power (50Hz | 60Hz) | 1.1 kW (1.5 hp) | 1.3 kW (1.8 hp) |
| Mains voltage and frequency (50Hz | 60Hz) | 230/400V | 460V |
|
Rated rotational speed (50Hz | 60Hz) |
1500 min-1 (1500 rpm) | 1800 min-1 (1800 rpm) |
| Type of protection (50Hz | 60Hz) | IP 55-F | IP 55-F |
| Leak rate (50Hz | 60Hz) | ≤ 1 x 10-3 mbar x l/s | ≤ 1 x 10-3 mbar x l/s |
| Oil capacity (50Hz | 60Hz) | 1.0 l (1.1 qt) | 1.0 l (1.1 qt) |
| Connections, Intake and Exhaust (50Hz | 60Hz) | DN 40 ISO-KF | DN 40 ISO-KF DN |
| Net weight with oil filling (50Hz | 60Hz) | 43 kg (94.9 lbs) | 45 kg (99.3 lbs) |
A&J Vacuum repair / rebuild and service all Leybold SV40 Bi, Leybold SV65 / 960331V3011 Sogevac Pumps, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN20577
Mfr Part#:971443150
Condition: Ships Within 1-3 Days
New
$675.00
Item#:PN18193
Mfr Part#:L13001
Condition: In Stock
New
In Stock
$67.99
Item#:PN18195
Mfr Part#:L13005
Condition: In Stock
New
In Stock
$219.99
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
