- Pumping Speed (m3/h): 27
- Inlet Port: DN 25 ISO KF
- Ultimate Pressure w/o Purge: 3 x 10-2 mba
- Power Consumption: 700 W
Shopping Cart ( )
Pfeiffer Adixen ACP 28 Compact Dry Vacuum Pump, V6SATSFAMF
Condition:
Remanufactured
Call us for Availability
Item#:PN06842
Mfr Part#:V6SATSFAMF
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Adixen ACP 28 Compact Dry Vacuum Pump, V6SATSFAMF
Pfeiffer ACP 28 Overview:
- The multi-stage technology of the ACP series meets the requirements of applications where clean and dry vacuum is needed.
- The frictionless pumping module is optimized to operate without internal lubricant and provides outstanding oil-free vacuum with no hydrocarbon vapor backstreaming. Without any seals between rotor and stator no particles are generated.
- The absence of wearing parts inside the pumping module allows for unsurpassed long-term stability and high reliability in even the most demanding applications.
- The frequency converter driven motor provides constant rotational speed, thus stable pumping speed and consistent ultimate pressure are achieved all over the world.
- High flow gas ballast ports and drainable silencers allow the ACP to pump high amounts of condensable vapors (up to 1,000 g/h of pure water vapor).
- The ACP 28 is designed for applications that require pumping of clean (dust-free) and non-corrosive gases. Standard pumps are equipped with a gas ballast device to improve pumping of light gases and avoid vapor condensation inside the pump. Three gas ballast options are available to satisfy customer needs.

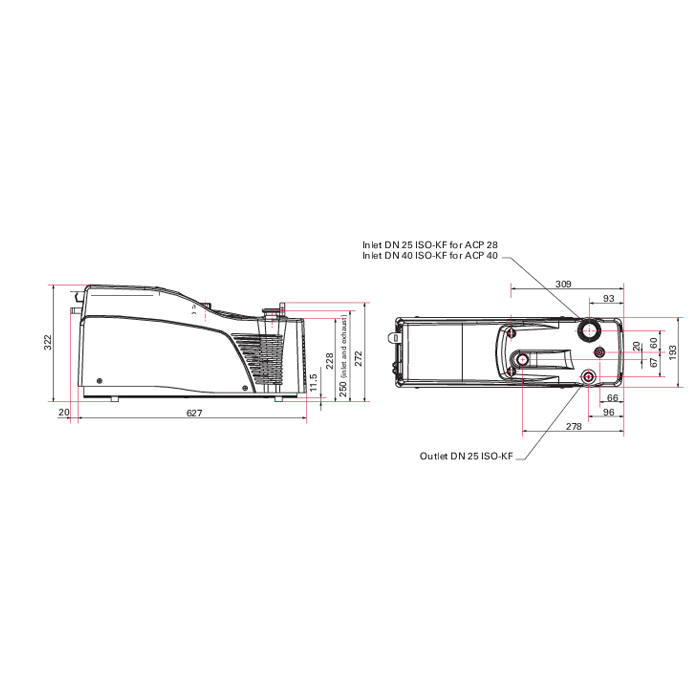

Pfeiffer ACP 28 Dimensions:
Click Here for Pfeiffer ACP 28 SD Manual
A&J Vacuum services and repairs Pfeiffer Dry Vacuum Pump, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Adixen ACP 28 Compact Dry Vacuum Pump, V6SATSFAMF
Pfeiffer ACP 28 Technical Data:
| Pumping Speed (m3/h): | 27 |
| Max Inlet Pressure (mbar): | 1013 |
| Ultimate Pressure w/o Purge: | 3 x 10-2 mbar |
| Ultimate Pressure w/ Purge: | 1 x 10-1 mbar |
| Inlet Port: | DN 25 ISO KF |
| Exhaust Port: | DN 25 ISO KF |
| Power Consumption: | 700 W |
| Input Voltage: | 90 V to 254 V - 50/60 Hz |
Click Here for Pfeiffer ACP 28 SD Manual
A&J Vacuum services and repairs Pfeiffer Dry Vacuum Pump, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
