- Ultimate pressure: 3 x 10-2 mbar
- Pumping speed: 37 m3/h / 22 CFM
- Helium leak rate: < 5 · 10-7
- Sound level: < 70
Shopping Cart ( )

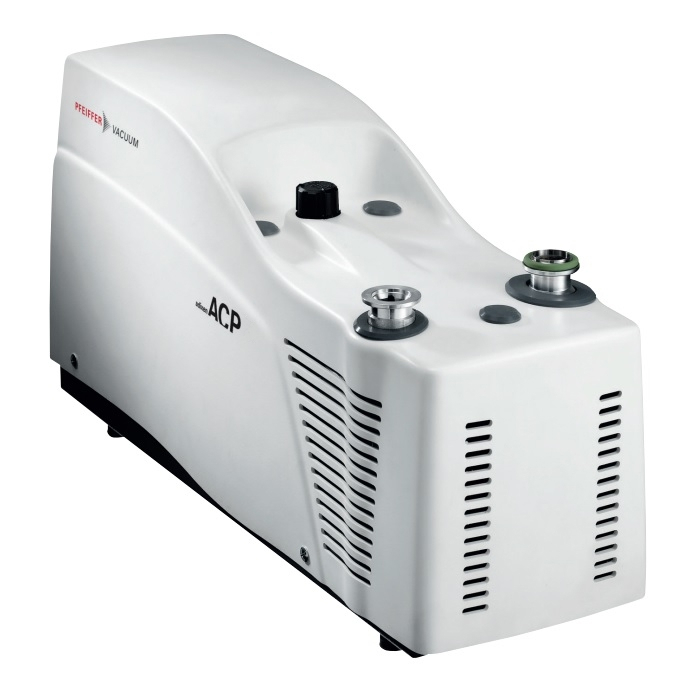

Pfeiffer Adixen ACP 40 Compact Dry Vacuum Pump, 37 m3/h Manual Gas Ballast, Single Phase, 110-230 V (50/60 Hz) V8SACSFEMF
Condition:
Remanufactured
In Stock
Item#:PN06843
Mfr Part#:V8SACSFEMF
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Adixen ACP 40 Compact Dry Vacuum Pump, 37 m3/h Manual Gas Ballast, Single Phase, 110-230 V (50/60 Hz) V8SACSFEMF
Pfeiffer ACP 40 Overview:
- Type Multi-stage Roots primary pump
- frictionless technology
- reliability
- aluminium pump body - Dry and clean vacuum
- no particulate contamination
- residual gas spectrum free of traces of hydrocarbons - Sealed air-cooled motor
- permanent air cooling (built-in fan)
- safety: certified leaktight - Single-phase frequency converter
- multi-voltage, dual frequency 50/60 Hz - 2 pump models according to different applications
- standard version
- G version - Thermal protection based on temperature sensors
- RS 485 Serial link
Unit is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
A&J Vacuum services and repairs Pfeiffer Dry Vacuum Pump, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Adixen ACP 40 Compact Dry Vacuum Pump, 37 m3/h Manual Gas Ballast, Single Phase, 110-230 V (50/60 Hz) V8SACSFEMF
Dry Primary Pump Applications:
Standard version
The pump is designed for applications that require the pumping of for "clean vacuum" clean (dust-free) and non-corrosive gases. Examples are:
- Instrumentation:
- Gas analysis.
- Electronic microscope.
- X-ray spectrometer.
- Leak detection.
- Surface analyzer.
- Research and Development
- Semiconductor Fabrication:
- Load lock and transfer chamber pumping.
- Wafer back pumping.
G version
G version for G version pump is compatible with the pumping of corrosive pumping of corrosive traces. It is equipped with 3 gas purge circuits used to withstand gas traces or gas traces, to protect the LP and HP ball bearings, and the condensable gas pump thightness is reinforced. This pump model can be used in applications such as:
- Process monitoring.
- Load lock pumping.
- Transfer chamber pumping.
- Focused Ion Beams.
A&J Vacuum services and repairs Pfeiffer Dry Vacuum Pump, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum Adixen ACP 28 ACP 40 Operating Instructions User Manual ACP28 ACP 40
Adixen Pfeiffer ACP 15, ACP 28, ACP 40 Manual, ACP15
Adixen ACP28 ACP40 Dry Pump Catalog, Alcatel ACP
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
