- OEM P/N 118809
- 12 V DC
- Mounting Bolts Included
- Pfeiffer Adixen Unit
Shopping Cart ( )

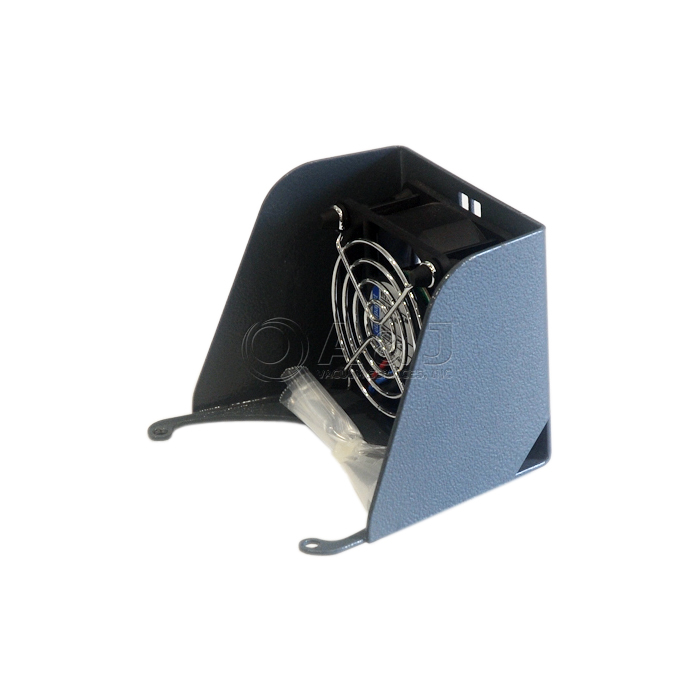

Pfeiffer Adixen Cooling Fan for MDP 5011 Turbo Pump, 12 V DC, 2000049205 / 118809
Condition:
New
In Stock
Item#:PN24276
Mfr Part#:2000049205 / 118809
Manufacturer:Adixen / Alcatel
Features:
Pfeiffer Adixen Cooling Fan for MDP 5011 Turbo Pump, 12 V DC, 2000049205 / 118809
Cooling fan designed to fit Alcatel / Adixen MDP 5011 turbo Pump
The Pfeiffer Adixen MDP5011 Turbo Pump cooling fan operates on 12 Volts DC supplied directlly from turbo pump controller.
MDP 5011 Cooling fan comes with mounting bolts.
The Pfeiffer Adixen MDP5011 is designed to operate efficiently under the following conditions:
- To replace a rotary vane pump with a dry pump for an application at 10-3 mbar
- A turbo pump that can operate up to 10 mbar
- A pump that can flow up to 400 SCCM
- MDP5011 can be also cooled with Water Cooling Kit P/N PN20001
Pfeiffer Adixen MDP 5011 Turbo Applications:
- Fast evacuation of small volumes
- Interseal pumping
- Regeneration of cryopumps
- Backing pump for turbomolecular pumps
- Leak detection
- High-quality freez drying
- Spectrometry
- Production of light bulbs
- Production of electronic tubes

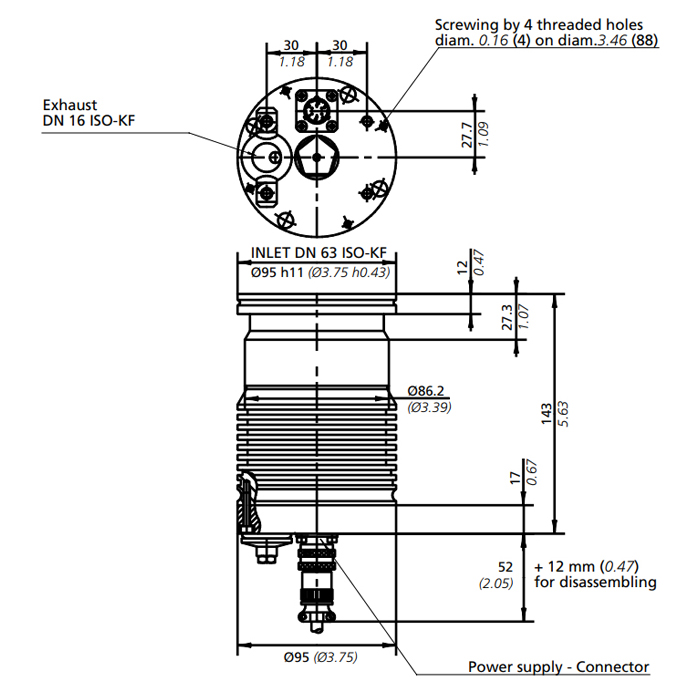

Pfeiffer Adixen MDP 5011 Dimensions:
Click Here for Alcatel MDP 5011 Manual
A&J Vacuum also repair / rebuild and service Alcatel Adixen Pfeiffer MDP 5011 and Adixen MDP 5011 Turbo Pumps along with all other Pfeiffer Adixen Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer Adixen Cooling Fan for MDP 5011 Turbo Pump, 12 V DC, 2000049205 / 118809
Cooling fan designed to fit Alcatel / Adixen MDP 5011 turbo Pump
The Pfeiffer Adixen MDP5011 Turbo Pump cooling fan operates on 12 Volts DC supplied directlly from turbo pump controller.
MDP 5011 Cooling fan comes with mounting bolts.
The Pfeiffer Adixen MDP5011 is designed to operate efficiently under the following conditions:
- To replace a rotary vane pump with a dry pump for an application at 10-3 mbar
- A turbo pump that can operate up to 10 mbar
- A pump that can flow up to 400 SCCM
- MDP5011 can be also cooled with Water Cooling Kit P/N PN20001
Pfeiffer Adixen MDP 5011 Turbo Applications:
- Fast evacuation of small volumes
- Interseal pumping
- Regeneration of cryopumps
- Backing pump for turbomolecular pumps
- Leak detection
- High-quality freez drying
- Spectrometry
- Production of light bulbs
- Production of electronic tubes
Pfeiffer Adixen MDP 5011 Dimensions:
Click Here for Alcatel MDP 5011 Manual
A&J Vacuum also repair / rebuild and service Alcatel Adixen Pfeiffer MDP 5011 and Adixen MDP 5011 Turbo Pumps along with all other Pfeiffer Adixen Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
