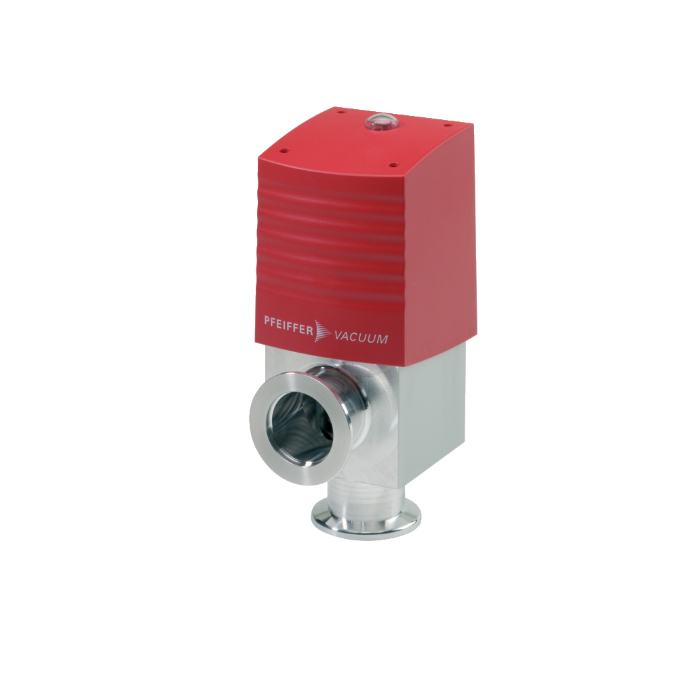

Pfeiffer AVC 025 PA, Angle Valve, Electropneumatic, with PI, 200-230 V, PF A48 503 / PFA48503

Condition: New

Item#:PN23281

Mfr Part#:PF A48 503 / PFA48503

Manufacturer:Pfeiffer Vacuum

PRICE:

$921.80

Web savings:

$83.80

YOU PAY:

$838.00

Add to cart

Request a repair estimate Request sales quote Financing available

New Pfeiffer AVC 025 PA, Angle Valve, Electropneumatic, with PI, 200-230 V, PF A48 503 / PFA48503

Features:

Bakeout Temperature: Actuator, Pilot Valve 50 °C | 122 °F | 323 K
Closing/Opening Time: 160 ms/120 ms
Conductance for Molecular Flow 14 l/s
Nominal Diameter: DN 25 ISO-KF

Overview
Specifications
Service & Repair

Pfeiffer AVC 025 PA, Angle Valve, Electropneumatic, with PI, 200-230 V, PF A48 503 / PFA48503

Pfeiffer AVC 025 PA Features:

Bellows-sealed
With visual position indicator
Normally closed (n.c.)
Service life: 10 million operating cycles
Dimensions:
- A: 146.9 mm
- B: 117.8 mm
- C: 79 mm
- D: 64.3 mm
- E: 60.1 mm
- F: 97.8 mm
- G: 50 mm

AVC 025 PA / PFA48503 Overview:

This is the AVC 025 PA angle valve.

A&J Vacuum also repairs / rebuilds and services all types of Pfeiffer pumps. Please contact us for information on the service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

This item is non-returnable/non-refundable

Pfeiffer AVC 025 PA, Angle Valve, Electropneumatic, with PI, 200-230 V, PF A48 503 / PFA48503

Pfeiffer AVC 025 PA Technical Data:

Bakeout temperature: actuator, pilot valve	50 °C \| 122 °F \| 323 K
Bakeout temperature: housing	80 °C \| 176 °F \| 353 K
Closing/opening time	160 ms/120 ms
Closing time	160 ms
Compressed air (overpressure)	4,000-8,000 hPa \| 3,000-6,000 Torr \| 4,000-8,000 mbar
Compressed air volume	11 cm³
Conductance for molecular flow	14 l/s
Control valve	Included
Differential pressure in closing direction	5,000 hPa \| 3,750 Torr \| 5,000 mbar
Differential pressure in opening direction	2,000 hPa \| 1,500 Torr \| 2,000 mbar
Electrical position indicator	Included
Electrical position indicator: Rating	250 V AC / 0,1 A \| 50 V DC / 0,25 A
Feedthrough	Bellows, stainless steel
Housing	Aluminum
Nominal diameter	DN 25 ISO-KF
Opening time	120 ms
Operating pressure min.	1 · 10-8 hPa \| 7.5 · 10-9 Torr \| 1 · 10-8 mbar
Power pilot valve	4.8 / 3.6 VA
Pressure max. (absolute)	2,000 hPa \| 1,500 Torr \| 2,000 mbar
Seal	FKM
Service life	10000000 cycles
Supply	200 – 230 V AC
Tightness	1 · 10-10 Pa m3/s \| 7.5 · 10-10 Torr l/s \| 1 · 10-9mbar l/s
Type	Angle valve
Weight	0.68 kg \| 1.5 lb
