- Dual-Stage, High Performance Rotary Vane Pump
- Integrated Gas Ballast & Safety Valve
- PK D570 010 C0 A / PK D570010C0A
- Superior Quality
Shopping Cart ( )

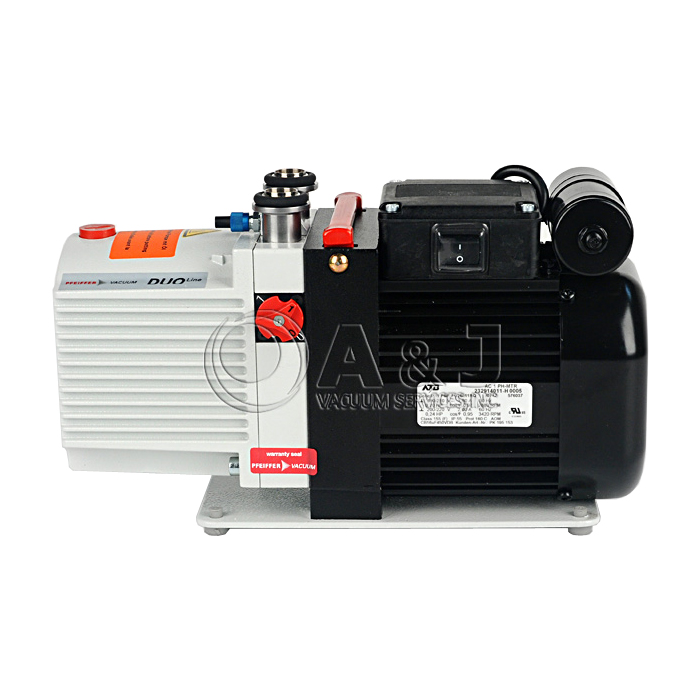

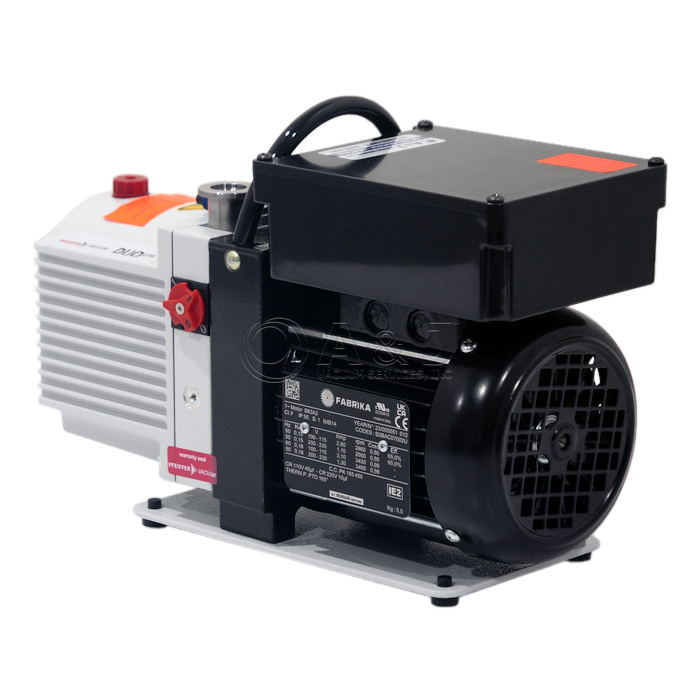

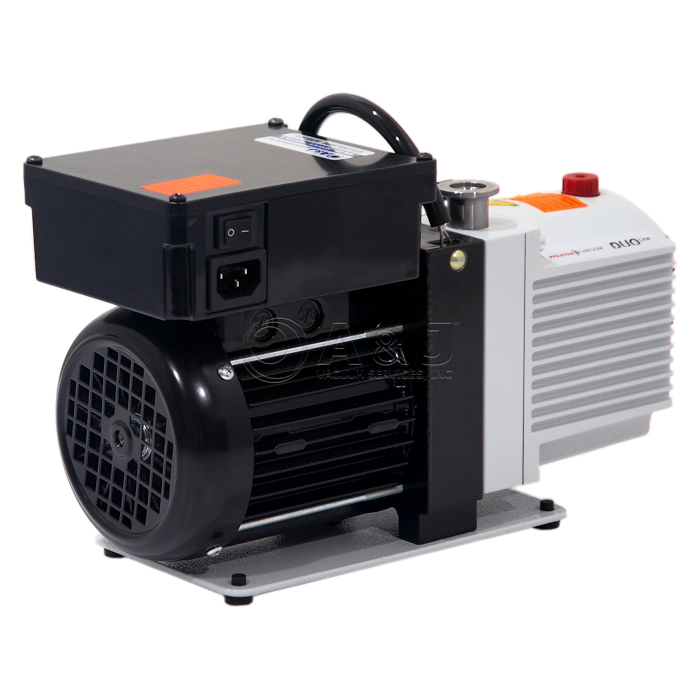

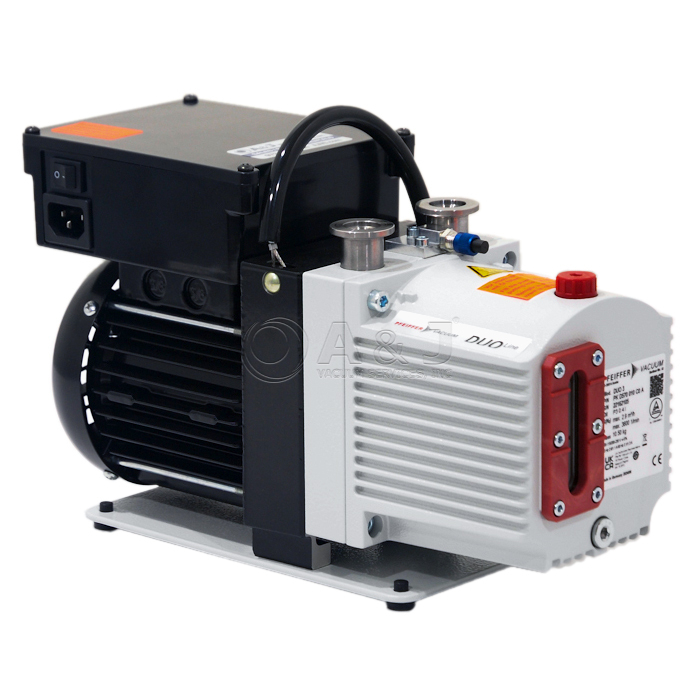

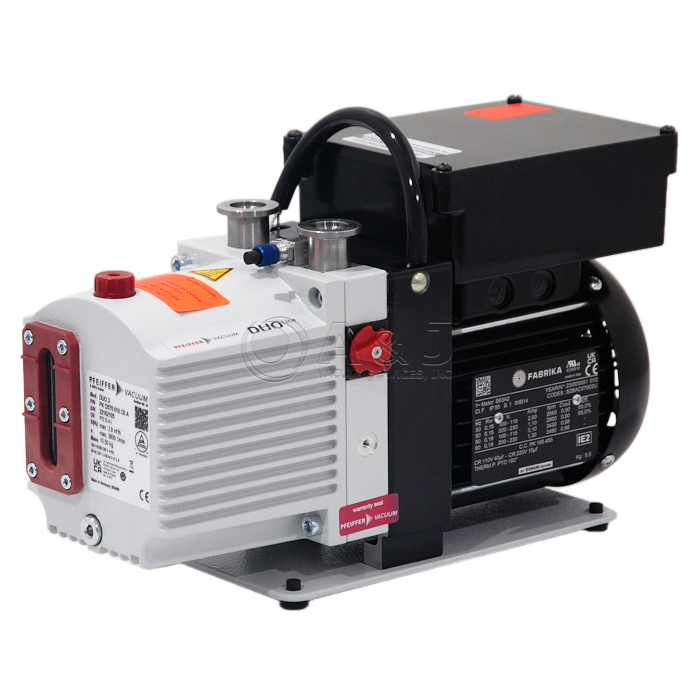

Pfeiffer DUO 3 Rotary Vane Vacuum Pump, 115/230 V, 50/60 Hz, 1/2 Liter of P3 Oil Included, 2000103680 / PK D570 010 C0 A / PKD570010C0A
Condition:
New
In Stock
Item#:PN41363
Mfr Part#:2000103680 / PK D570 010 C0 A / PKD570010C0A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer DUO 3 Rotary Vane Vacuum Pump, 115/230 V, 50/60 Hz, 1/2 Liter of P3 Oil Included, 2000103680 / PK D570 010 C0 A / PKD570010C0A
Power cable is not included. Please view the accessories tab for compatible cables.
Pfeiffer DUO 3 Rotary Vane Vacuum Pump Features:
- Dual Stage, High Performance Rotary Vane Pump
- Integrated Gas Ballast and Safety Valve Utilized for All Low and Medium Vacuum Applications
- Optional w/ Magnetic Coupling
- Included Special Feature: Various Motor Voltages for
Worldwide Employment & Application - Other Motor Voltages Available Upon Request
DUO 3 Rotary Vane Vacuum Pump / PKD570010C0A Overview:

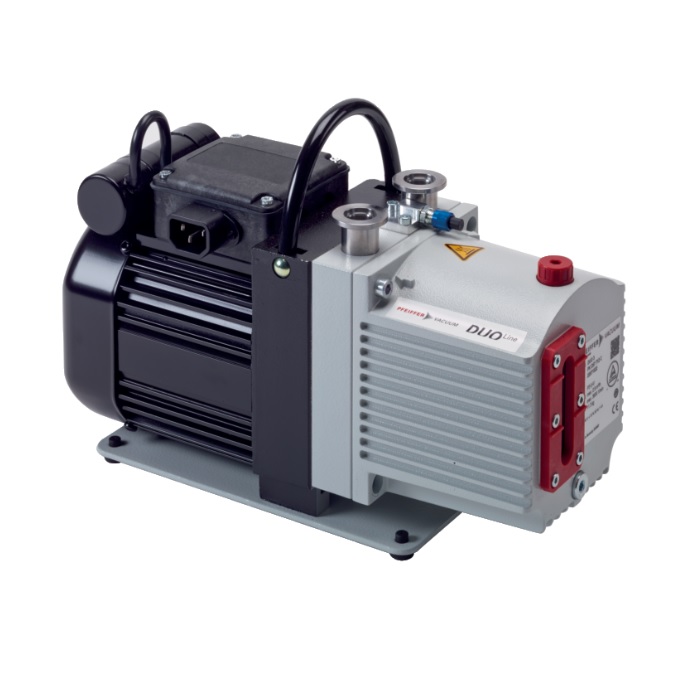

The Pfeiffer DUO 3 Rotary Vane Vacuum Pump is a direct replacement for the now-obsolete Pfeiffer DUO 3 PK D57 711 / PKD57711 Vacuum Pump. The Pfeiffer DUO 3 Vacuum Pump series includes oil-sealed, two-stage Rotary Vane Vacuum Pumps.
The Pfeiffer DUO3 Rotary Vane Pump is equipped with a high vacuum safety valve, which, when the pump is at a standstill, tightly closes the vacuum chamber while simultaneously allowing for ventilation of the pump.
A power cable is not included within this product. Please refer to the recommended items below for appropriate choices.
A&J Vacuum services and repairs Pfeiffer DUO 3 DUO 3M, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer DUO 3 Rotary Vane Vacuum Pump, 115/230 V, 50/60 Hz, 1/2 Liter of P3 Oil Included, 2000103680 / PK D570 010 C0 A / PKD570010C0A
Power cable is not included. Please view the accessories tab for compatible cables.
Pfeiffer DUO 3 Rotary Vane Vacuum Pump Technical Data:
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |

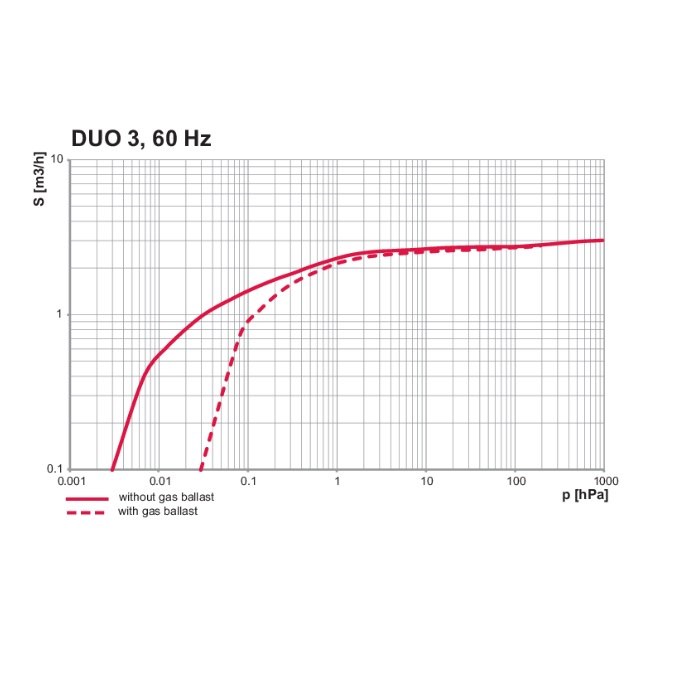

| Pumping speed at 50 Hz | 2.5 m³/h | 1.47 cfm | 41.67 l/min |
| Pumping speed at 60 Hz | 2.9 m³/h | 1.71 cfm | 48.33 l/min |
| Ultimate pressure with gas ballast | 3 · 10-3 hPa | 2.25 · 10-3Torr | 3 · 10-3 mbar |
| Ultimate pressure without gas ballast | 3 · 10-3 hPa | 2.25 · 10-3Torr | 3 · 10-3 mbar |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Exhaust pressure, min. | 250 hPa | 187.5 Torr | 250 mbar |
| Rotation speed at 50 Hz | 3,000 rpm | 3,000 min-1 |
| Rotation speed at 60 Hz | 3,600 rpm | 3,600 min-1 |
| Cooling method, standard | Air |

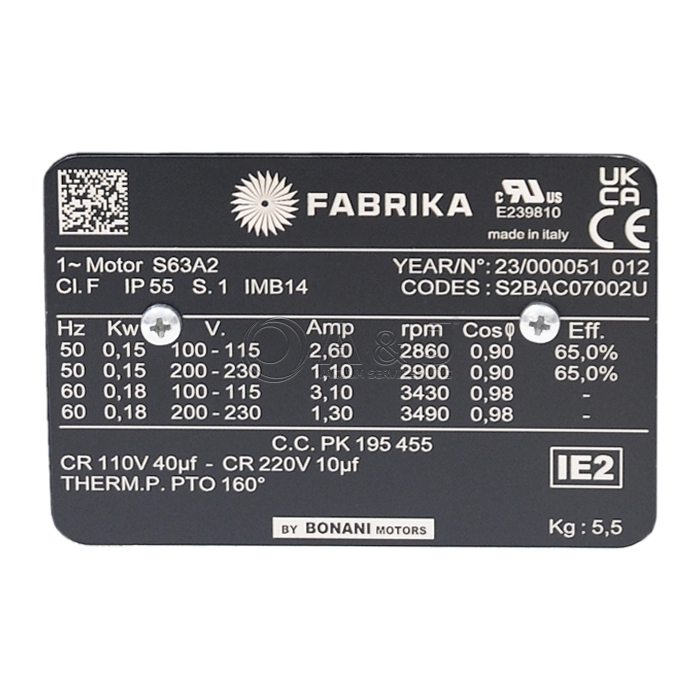

| Motor version | 1-ph motor |
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Emission sound pressure level without gas ballast at 50 Hz | 53 dB(A) |
| Switch | Yes |
| Mains requirement: voltage (range) | ±10 % |
| Mains requirement: voltage 50 Hz | 115 V/230 V |
| Mains requirement: voltage 60 Hz | 115 V/230 V |
| Recommended mains fuse capacity | 6/4 A |
| Mains cable | No |
| Operating fluid | P3 |
| Operating fluid filling | 0.4 l |
| Leak rate safety valve | 1 · 10-5 Pa m3/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |

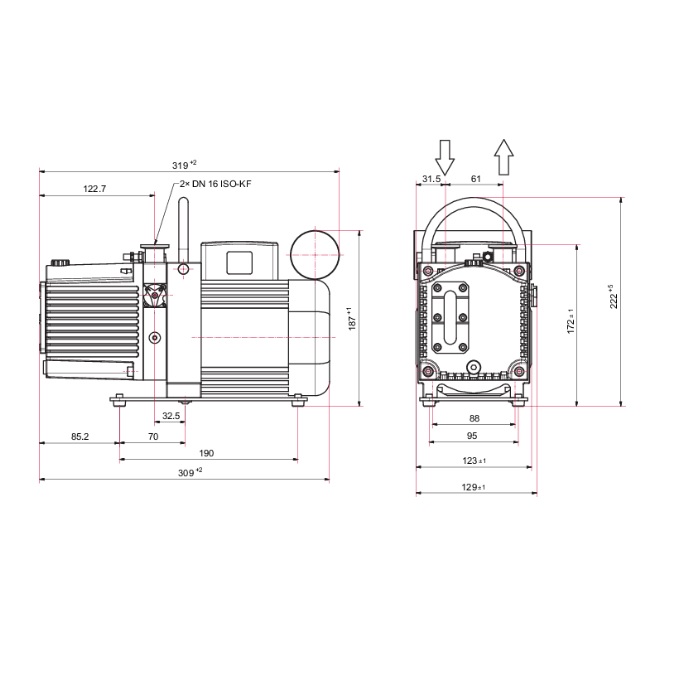

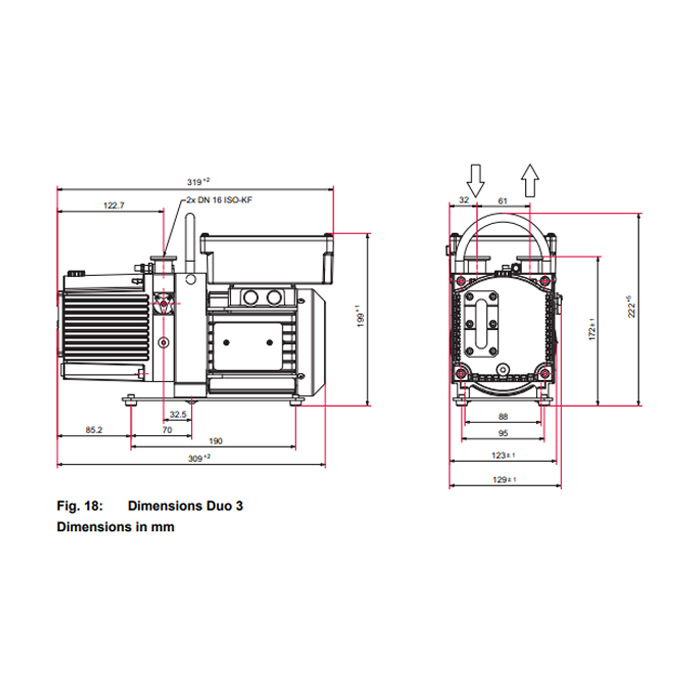

| Dimensions (L x W x H) | 335 x 129 x 222 mm | 13.19 x 5.08 x 8.74 inch |
| Rated power 50 Hz | 0.15 kW |
| Rated power 60 Hz | 0.18 kW |
| Protection category | IP40 |
| Weight | 11.5 kg | 25.35 lb |
A&J Vacuum services and repairs Pfeiffer DUO 3, DUO 3M, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
