- Pumping Speed 50Hz: 1.47 cfm
- Pumping Speed 60Hz: 1.71 cfm
- Input Voltages: 100 - 115 / 200 - 230 VAC
- Single Phase Motor

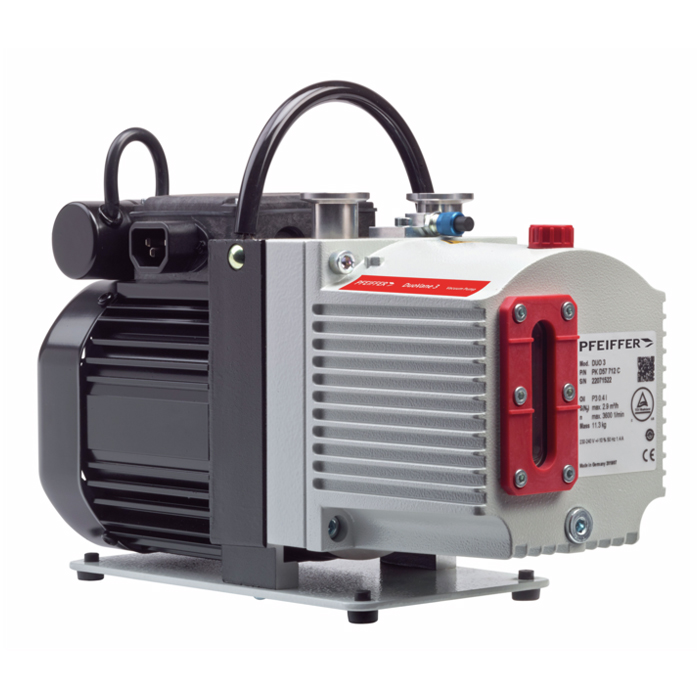

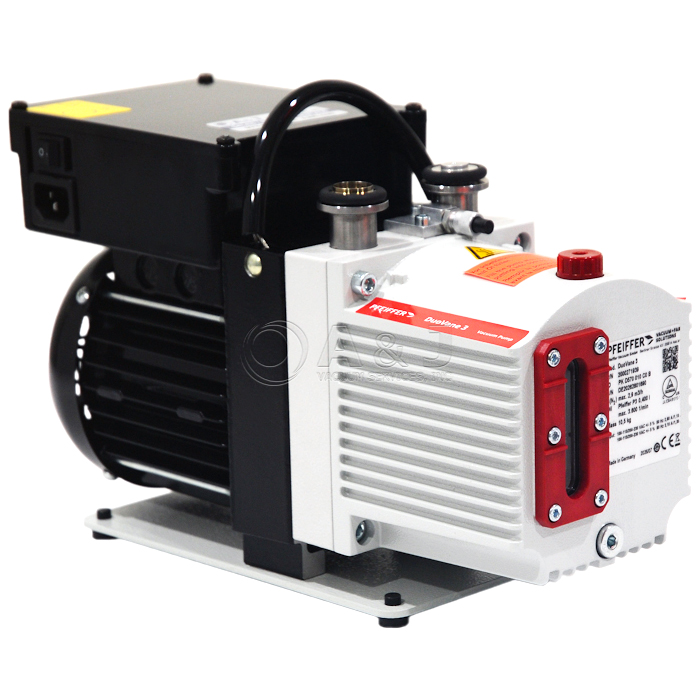

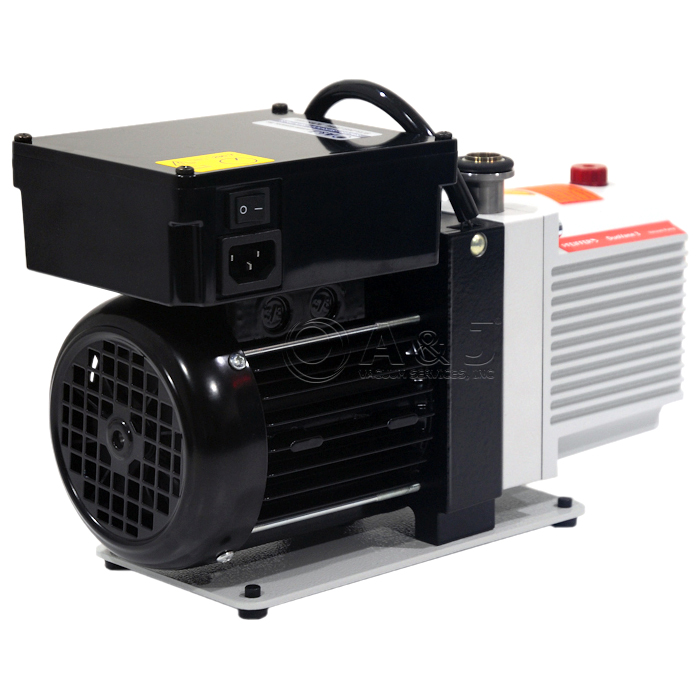

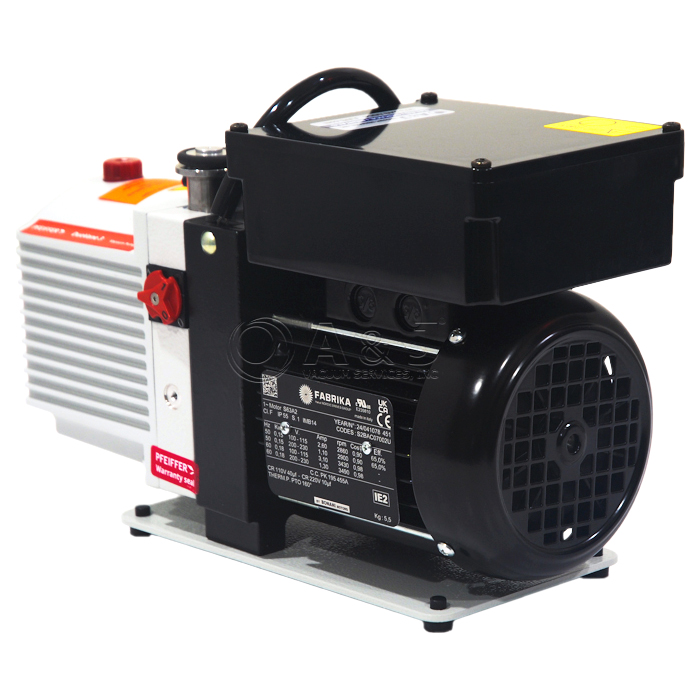

Pfeiffer DuoVane 3 Vacuum Pump, 1-phase, 100 - 115, 200 - 230 V, 50/60Hz, PK D571 010 C0 D / PKD571010C0D
Power Cable not Included !
Pfeiffer DuoVane 3 Features:
- Dual-stage, high-performance rotary vane pump with a pumping speeds of 2.5 m3/h at 50 Hz / 2.9 m3/h at 60 Hz
- Coupled magnetically
- With single-phase motor with C14 connector plug inside terminal box
- Integrated gas ballast and safety valve
- OME oil return device is included with the pump
- Special feature: various motor voltages for wide range of application fields
Pfeiffer DuoVane3 / PK D571 010 C0 D Overview:
Pfeiffer DuoVane series rotary vane pumps are two-stage, oil-sealed rotary displacement pumps for use in a low and medium vacuum. The rotary vane pump is available in the standard version with claw coupling and asynchronous motor.
Pfeiffer Vacuum DuoVane Line is the latest and the newest design within rotary vane pumps, with outstanding pumping performance.
The Pfeiffer Vacuum DuoVane 3 rotary vane pump is an oil-sealed rotary displacement pump. The pumping system comprises the housing, the eccentrically mounted rotor, and the centrifugal and spring-loaded radially sliding vanes, which divide the suction chamber into multiple chambers.
The volume of each stator chamber changes periodically as the rotor rotates. This causes the gas to be drawn in at the vacuum flange, and compressed in the suction chamber by the rotation of the rotor until the exhaust valve opens against the atmospheric pressure at the outlet and expels the gas. The exhaust valve is oil-sealed. When the valve opens, a small quantity of oil penetrates into the suction chamber. In addition to lubrication, this also causes the gaps between the rotor, stator, and vanes to seal.
Pfeiffer DuoVane3 Scope of Delivery:
- Rotary vane vacuum pump with motor
- Operating fluid 2)
- Centering ring with cone sieve and O-ring for the vacuum flange
- Centering ring with nozzle and O-ring for the exhaust flange
- Locking caps for both connection flanges
- Operating instructions
Pfeiffer DuoVane3 Applications:
- All applications in rough and fine vacuum
- Backing pump for turbo and Roots pumps
- General laboratory applications
- Analytics
- Chemistry laboratory
- Freeze drying
- Process engineering
A&J Vacuum services and repairs Pfeiffer DuoVane 1.6 3 6 12 18 and 22 , along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer DuoVane 3 Vacuum Pump, 1-phase, 100 - 115, 200 - 230 V, 50/60Hz, PK D571 010 C0 D / PKD571010C0D
Pfeiffer DuoVane 3 Technical Data:
- Ambient temperature: 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K
- Connection flange (in): DN 16 ISO-KF
- Connection flange (out): DN 16 ISO-KF
- Continuous gas input temperature, max.: 40 °C | 104 °F | 313.15 K
- Cooling method: Air (Forced convection)

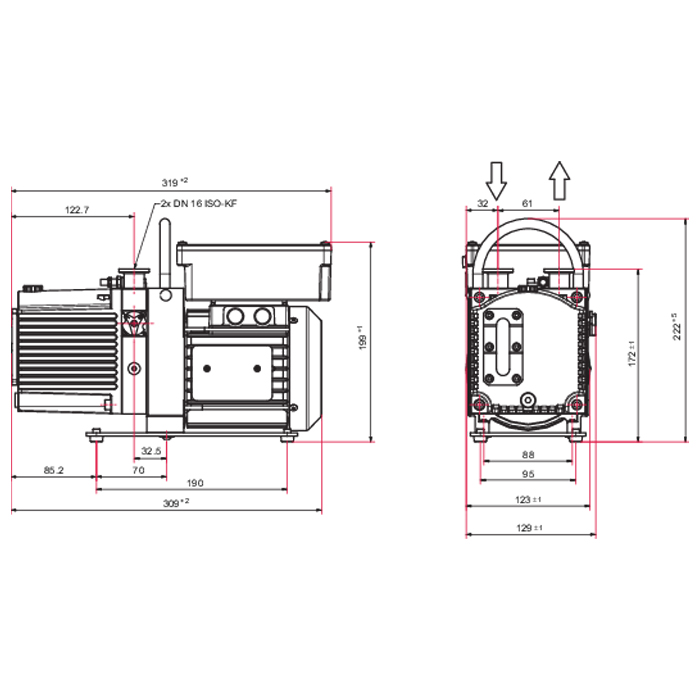

- Dimensions (L x W x H): 361 x 130 x 199 mm | 14.21 x 5.12 x 7.83 inch
- Emission sound pressure level without gas ballast at 50 Hz: 51 dB(A)
- Emission sound pressure level without gas ballast at 60 Hz: 54 dB(A)
- Exhaust pressure, max.: 1500 hPa | 1,125 Torr | 1,500 mbar
- Exhaust pressure, min.: Atmospheric pressure
- Gas ballast: Yes
- Gas ballast flow: 540 l/h
- Gas ballast pressure: 1500 hPa | 1,125 Torr | 1,500 mbar
- Input voltage(s): 100 – 115 / 200 – 230 V AC (±5 %), 50/60 Hz
- Leakage rate safety valve: 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s
- Magnetic coupling: Yes
- Mains cable: No, C14-plug inside the terminal box
- Mains frequency compatibility: 50/60 Hz
- Motor coupling: Magnet coupling
- Motor protection: Bimetal
- Motor seal: Hermetic sealing
- Motor type: 1-phase motor
- Number of pumping stages: Two stage
- Operating fluid: P3
- Operating fluid amount: 0.4 l
- Protection degree: IP40
- Pumping principle: Oil-lubricated

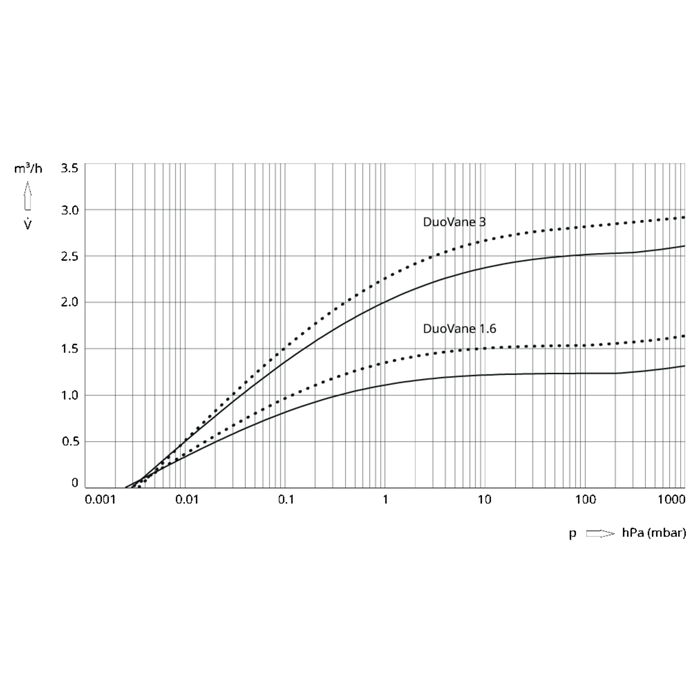

- Pumping speed at 50 Hz: 2.5 m³/h | 1.47 cfm | 41.67 l/min
- Pumping speed at 60 Hz: 2.9 m³/h | 1.71 cfm | 48.33 l/min
- Rated power 50 Hz: 0.15 kW
- Rated power 60 Hz: 0.18 kW
- Recommended on-site electric fuse protection: 6 / 4 A
- Rotation speed at 50 Hz: 3000 rpm | 3,000 min-1
- Rotation speed at 60 Hz: 3600 rpm | 3,600 min-1
- Switch: No
- Ultimate pressure: 3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar
- Ultimate pressure with gas ballast: 3 · 10-2 hPa | 2.25 · 10-2 Torr | 3 · 10-2 mbar
- Water vapor capacity 50 Hz: 115 g/h
- Water vapor capacity 60 Hz: 175 g/h
- Water vapor tolerance at 50 Hz: 65 hPa | 48.75 Torr | 65 mbar
- Water vapor tolerance at 60 Hz: 80 hPa | 60 Torr | 80 mbar
- Weight approx.: 11.5 kg | 25.35 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 1.6 3 6 12 18 and 22 , along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer DuoVane 3 Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.

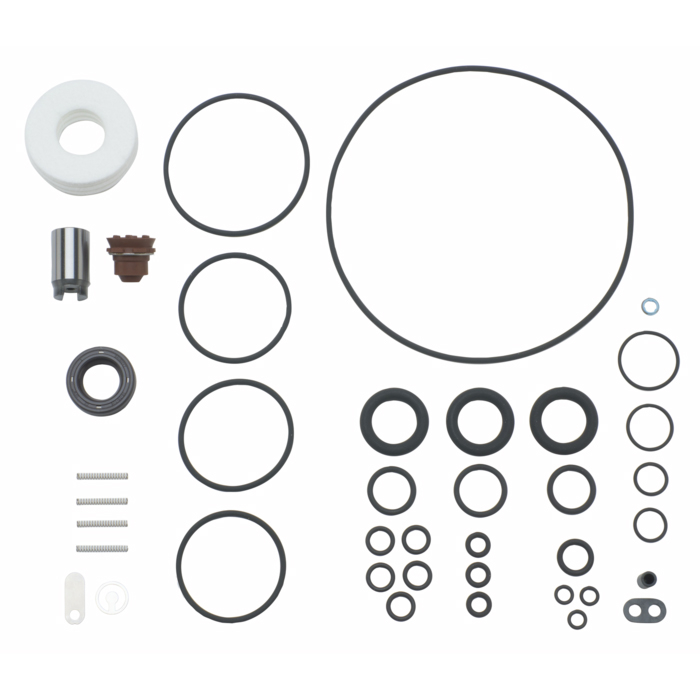

- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
