- Opening Time: 30 ms
- Seal: FKM
- Type: Mini Angle Valve
- Weight: 0.3 kg | 0.66 lb
Shopping Cart ( )

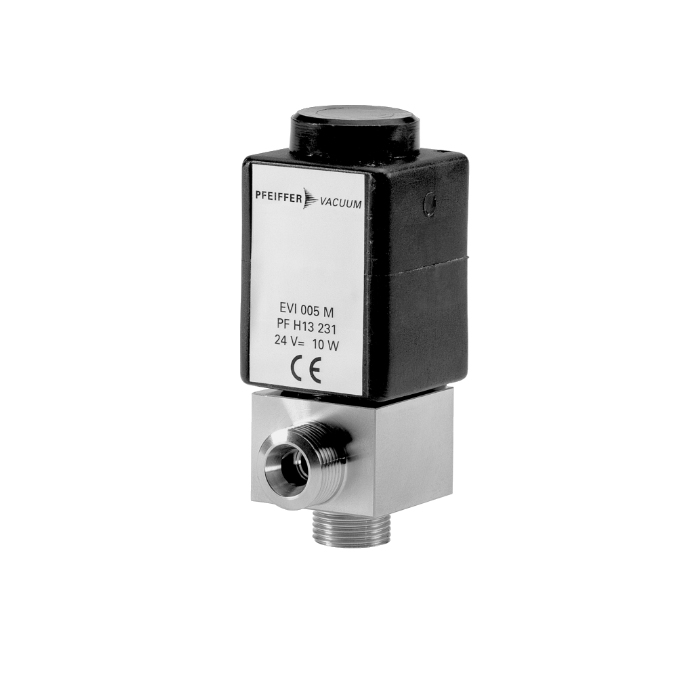

Pfeiffer EVI 005 M, Mini Angle Valve, Solenoid Actuated, Without PI, PF H13 231 / PFH13231
Condition:
New
Item#:PN23280
Mfr Part#:PF H13 231 / PFH13231
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer EVI 005 M, Mini Angle Valve, Solenoid Actuated, Without PI, PF H13 231 / PFH13231
Pfeiffer EVI 005 M Features:
- Two connections required as accessories
- Normally closed (n.c.)
- Service life: 2 million operating cycles
EVI 005 M / PFH13231 Overview:
The EVI 005 M is primarily employed in fast-cycling vacuum systems, such as those used in gas analysis and coating applications. It is actuated electromagnetically and closes via a preloaded pressure spring. In the event of a power failure, the valve will either close or remain securely closed.
A&J Vacuum also repairs / rebuilds and services all types of Pfeiffer pumps. Please contact us for information on the service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer EVI 005 M, Mini Angle Valve, Solenoid Actuated, Without PI, PF H13 231 / PFH13231
Pfeiffer EVI 005 M Technical Data:
| Actuator | Electromagnetic |
| Ambient temperature | 5-40 °C | 41-104 °F | 278.15 - 313.15 K |
| Bakeout temperature: actuator | 120 °C | 248 °F | 393.15 K |
| Bakeout temperature: housing | 150 °C | 302 °F | 423.15 K |
| Closing/opening time | 7 ms/30 ms |
| Conductance value with laminar flow | 3 l/s |
| Conductance value with molecular flow | 0.3 l/s |
| Differential pressure in closing direction | 5,000 hPa | 3,750 Torr | 5,000 mbar |
| Differential pressure in opening direction | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Housing | Stainless steel |
| Input voltage(s) | 24 V DC |
| Opens against differential pressure of | 1000 hPa | 750 Torr | 1,000 mbar |
| Operating pressure min. | 1 · 10-8 hPa | 7.5 · 10-9 Torr | 1 · 10-8 mbar |
| Power consumption max. | 10 W |
| Pressure max. (absolute) | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Protection degree acc. to DIN 40050 | IP65 |
| Seal | FKM |
| Service life | 2000000 cycles |
| Switching frequency | 300 min-1 |
| Tightness | 1 · 10-10 Pa m3/s | 7.5 · 10-10 Torr l/s | 1 · 10-9 mbar l/s |
| Type | Mini angle valve |
| Version | Normally closed (n.c.) |
| Weight | 0.3 kg | 0.66 lb |
