- P/N PDZ10001 / PD Z10 001
- ES 25 L External Silencer for Outlet
- DN 25 ISO-KF Connecting Flange
- Reduces the sound level by up to 10 dB(A)

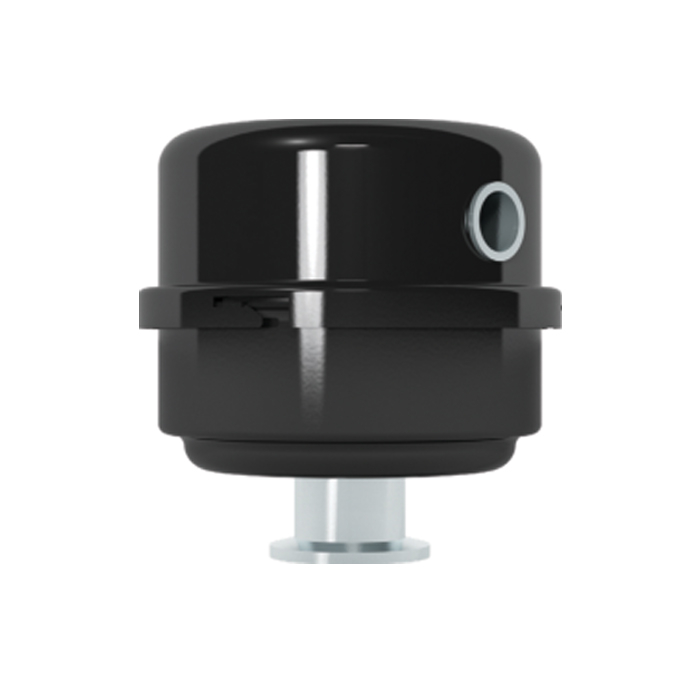

Pfeiffer External Silencer ES 25 L, PDZ10001 / PD Z10 001, DN 25
Pfeiffer External Silencer / PDZ10001 Overview:
Use of the External Exhaust Silencer ES25L will significantly reduce the noise level up to 10 db(A) when used with HiScroll Series pumps with pumping speed up to 23.54cfm or 40 m3/h.
External Silencer PDZ10001 includes the following parts:
- Silencer for outlet
- Reduces the sound level by up to 10 dB(A)
- Accessory does not have ATEX certification
- Ambient temperature: 26 – 104 °C | 78.8 – 219.2 °F | 299.15 – 377.15 K
- Connection flange (in): DN 25
- Degree of separation: 99 %
- Differential pressure: 40mbar
- For pumping speed up to: 23.54cfm
- Grain size limit (separable) 10 µm
- Inlet pressure max. Atmospheric pressure
- Overpressure max.: 400mbar
- Weight approx.: 1.26lb
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer External Silencer ES 25 L, PDZ10001 / PD Z10 001, DN 25
External Silencer PDZ10001 includes the following parts:
- Silencer for outlet
- Reduces the sound level by up to 10 dB(A)
- Accessory does not have ATEX certification
- Ambient temperature: 26 – 104 °C | 78.8 – 219.2 °F | 299.15 – 377.15 K
- Connection flange (in): DN 25
- Degree of separation: 99 %
- Differential pressure: 40mbar
- For pumping speed up to: 23.54cfm
- Grain size limit (separable) 10 µm
- Inlet pressure max. Atmospheric pressure
- Overpressure max.: 400mbar
- Weight approx.: 1.26lb
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

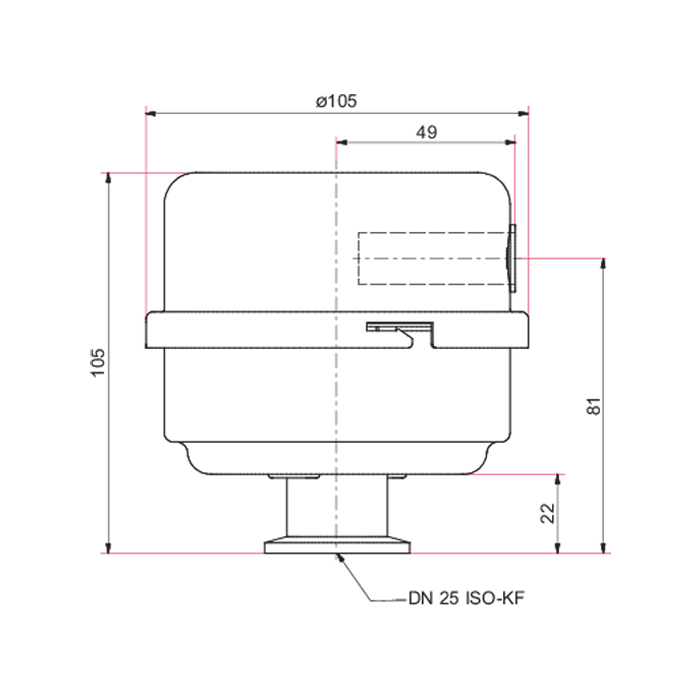

Pfeiffer External Silence ES25L Data Sheet PDZ10001
|
