- Inlet Flange: DN 25 ISO-KF
- Exhaust Flange: DN 25 ISO-KF
- Ultimate Vacuum: 1.5 · 10-2 mbar
- Pumping Speed: 3.59 cfm
Shopping Cart ( )
Pfeiffer HiScroll 6 C-Version Corrosive Dry Scroll Pump, with Manual Gas Ballast, 3.59 cfm, 100 - 127, 200 - 240 VAC, Single Phase, 50/60 Hz, ATEX, 2000223065 / PD S11 000 B / PDS11000B
Condition:
New
Item#:PN57877
Mfr Part#:2000223065 / PD S11 000 B / PDS11000B
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiScroll 6 C-Version Corrosive Dry Scroll Pump, with Manual Gas Ballast, 3.59 cfm, 100 - 127, 200 - 240 VAC, Single Phase, 50/60 Hz, ATEX, 2000223065 / PD S11 000 B / PDS11000B
Pfeiffer HiScroll 6 C-Version Features:
- Corrosive Gas Ready – FFKM check valves, DLC-coated components, stainless steel flanges
- High quality performance
- Lower energy consumption in comparison to standard scroll pumps
- Low noise levels
HiScroll 6 C-Version / PDS11000B Overview:
The Pfeiffer HiScroll C series represents the latest generation of dry scroll pump technology. These corrosion-resistant pumps, available in four different sizes, are specifically designed for applications involving light corrosive gases.
The HiScroll 6 C is a dry, oil-free pump that ensures safe operation through its standard Chemraz FFKM non-return valve, hermetically sealed pumping system, and ATEX compliance. Together, these features make installation and setup both simple and reliable for the HiScroll 6C.
In addition, the HiScroll C series integrates seamlessly with other Pfeiffer products such as turbopumps, display control units, and external systems via RS-485 or ProfiNet/EtherCAT interfaces.
Cable accessory has to be ordered separately.
HiScroll6C-Version Scope of Delivery:
- Scroll pump with electronic drive unit
- Protective cap for vacuum connection
- Protective cover for the exhaust connection
- Operating instructions
HiScroll6C-Version Applications:
- Chemical processing & gas recovery
- Mass spectrometry (e.g., ICP-MS)
- General laboratory & OEM applications
- Backing turbopumps
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll C pumps such as the HiScroll 6 / PD S11 000 B, HiScroll 12 / PD S21 000 B, HiScroll 18 / PD S31 000 B, and HiScroll 46 / PD S41 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer HiScroll 6 C-Version Corrosive Dry Scroll Pump, with Manual Gas Ballast, 3.59 cfm, 100 - 127, 200 - 240 VAC, Single Phase, 50/60 Hz, ATEX, 2000223065 / PD S11 000 B / PDS11000B
Pfeiffer HiScroll 6 C-Version Technical Data:
| Ambient temperature | 5 – 40 °C | 41 – 104 °F | 278.15 – 313.15 K |
| ATEX-certification | Ex II 3/-G Ex h IIC T4 Gc X +5 °C ≤ Ta ≤ +40 °C |
| Certification | cTUVus certified according to UL / CSA 61010-1 Semi S2 compatible Semi S8 compatible |
| Connection flange (in) | DN 25 ISO-KF |
| Connection flange (out) | DN 25 ISO-KF |
| Cooling method | Air (Forced convection) |
| Current, max. | 4 A |

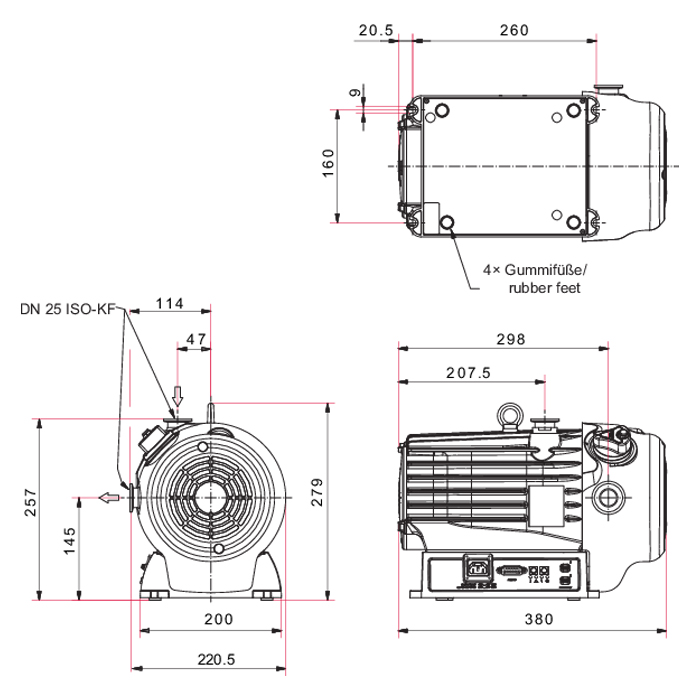

| Dimensions (L x W x H) | 380 x 220 x 257 mm | 14.96 x 8.66 x 10.12 inch |
| Exhaust pressure, max. | 1500 hPa | 1,125 Torr | 1,500 mbar |
| Gas ballast | Yes |
| Gas ballast flow stage 1 | 11 l/min |
| Gas ballast flow stage 2 | 16 l/min |
| Gas ballast pressure | 1500 hPa | 1,125 Torr | 1,500 mbar |
| I/O interfaces | RS-485 |
| Input voltage(s) | 100 – 127 / 200 – 240 V AC (±10 %), 50/60 Hz |
| Intake pressure max. | 1100 hPa | 825 Torr | 1,100 mbar |
| Integral leak rate | 5 · 10-7 Pa m³/s | 3.75 · 10-6 Torr l/s | 5 · 10-6 mbar l/s |
| Mains cable | No |
| Mains connection | 1-phase |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Motor protection | Internal |
| Nominal rotation speed | 2500 rpm | 2,500 min-1 |
| Operating altitude, max. | 3000 m |
| Protection degree | IP40 Type 1 |
| Pumping principle | Dry |
| Pumping speed | 6.1 m³/h | 3.59 cfm | 101.67 l/min |
| Rated current consumption | 100 V – 127 V: 4 A | 200 V – 240 V: 2 A |
| Rotation speed | 1000 – 3000 rpm | 1,000 – 3,000 min-1 |
| Switch | Yes |
| Ultimate pressure | 1.5 · 10-2 hPa | 1.125 · 10-2 Torr | 1.5 · 10-2 mbar |
| Ultimate pressure for gas ballast stage 1 | 7 · 10-2 hPa | 5.25 · 10-2 Torr | 7 · 10-2 mbar |
| Ultimate pressure for gas ballast stage 2 | 4 · 10-1 hPa | 0.3 Torr | 0.4 mbar |
| Weight approx. | 19 kg | 42 lb |
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll C pumps such as the HiScroll 6 / PD S11 000 B, HiScroll 12 / PD S21 000 B, HiScroll 18 / PD S31 000 B, and HiScroll 46 / PD S41 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
