- Universal Control for Products including Pfeiffer RS-485 Protocol
- 24 VDC Input Voltage
- 72 W Power Consumption Max
- IP20 Protection Degree

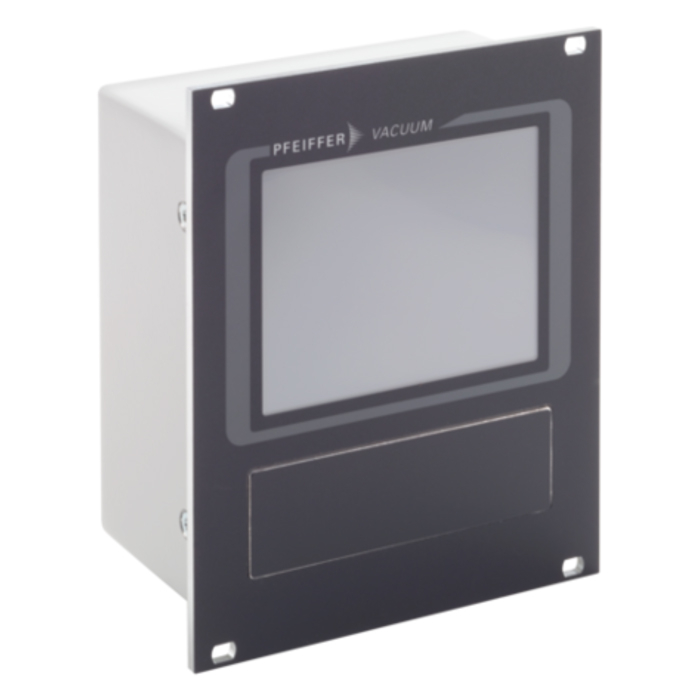

Pfeiffer OmniControl 001 rack display controller only without integrated power pack, PED420000 / PE D42 000 0, without data without gauge/IO
Pfeiffer OmniControl 001 / PED420000 Overview:
With the OmniControl, you only need one control device for your complete vacuum system. The device combines control of the total pressure with control of the pumps. Data exchange and processing between Pfeiffer Vacuum products is thus very uncomplicated and without the need to purchase additional devices. The OmniControl controls products that support a Pfeiffer Vacuum RS-485 protocol (e.g. HiPace, HiScroll, HiLobe, MVP und DigiLine). In addition, ActiveLine gauges (with analog output) can be connected as an option.
The RS-485 interface and the connecting socket designated "gauge" on the gauge/IO option are used to connect a Pfeiffer Vacuum gauge.
OmniControl Rack Mount / PED420000 Features:
- Universal control unit for all products with Pfeiffer Vacuum RS-485 protocol
- Easy operation on 3.5'' touchscreen display
- Simple data acquisition and processing between Pfeiffer Vacuum units
- Respective modules define the scope of functions
OmniControl Rack Mount Scope of Delivery:
- OmniControl control unit (optionally with bench holder installed)
- Operating instructions
- Fixing materials
OmniControl Rack Mount Applications:
- Semiconductor manufacturing
- Coating technology
- Research and development
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer OmniControl 001 rack display controller only without integrated power pack, PED420000 / PE D42 000 0, without data without gauge/IO
OmniControl Rack Mount Technical Data:
- Ambient temperature: 0 – 50 °C | 32 – 122 °F | 273.15 – 323.15 K
- Power consumption max: 72 W
- Input voltage(s): 24 VDC
- Protection degree: IP20
- Weight approx: 0.44lb
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer OmniControl Operation Manual
Pfeiffer OmniControl Communication Guide Operation Manual
Pfeiffer OmniControl DATA Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer OmniControl 001 rack display controller only without integrated power pack, PED420000 / PE D42 000 0, without data without gauge/IO
Pfeiffer OmniControl 001 / PED420000 Overview:
With the OmniControl, you only need one control device for your complete vacuum system. The device combines control of the total pressure with control of the pumps. Data exchange and processing between Pfeiffer Vacuum products is thus very uncomplicated and without the need to purchase additional devices. The OmniControl controls products that support a Pfeiffer Vacuum RS-485 protocol (e.g. HiPace, HiScroll, HiLobe, MVP und DigiLine). In addition, ActiveLine gauges (with analog output) can be connected as an option.
The RS-485 interface and the connecting socket designated "gauge" on the gauge/IO option are used to connect a Pfeiffer Vacuum gauge.
OmniControl Rack Mount / PED420000 Features:
- Universal control unit for all products with Pfeiffer Vacuum RS-485 protocol
- Easy operation on 3.5'' touchscreen display
- Simple data acquisition and processing between Pfeiffer Vacuum units
- Respective modules define the scope of functions
OmniControl Rack Mount Scope of Delivery:
- OmniControl control unit (optionally with bench holder installed)
- Operating instructions
- Fixing materials
OmniControl Rack Mount Applications:
- Semiconductor manufacturing
- Coating technology
- Research and development
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Specifications
Pfeiffer OmniControl 001 rack display controller only without integrated power pack, PED420000 / PE D42 000 0, without data without gauge/IO
OmniControl Rack Mount Technical Data:
- Ambient temperature: 0 – 50 °C | 32 – 122 °F | 273.15 – 323.15 K
- Power consumption max: 72 W
- Input voltage(s): 24 VDC
- Protection degree: IP20
- Weight approx: 0.44lb
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
