- Inlet Flange: DN 25 ISO-KF
- Exhaust Flange: DN 25 ISO-KF
- 11 W Power Consumption
- Valve Normally Closed
Pfeiffer IV 16 M, Vacuum Automated Safety Valve Package for Turbo Pump and HiScroll, 24 VDC, DN 25, PD Z10 050 / PDZ10050
Pfeiffer IV 16 M Key Features:
- 24 VDC Input Voltages
- Valve is normally closed
- Direct installation on the vacuum flange HiScroll, control via accessory port
- This does not have ATEX certification
IV 16 M / PDZ10050 Overview:
The vacuum safety valve is a normally closed, direct-acting 2/2-way solenoid valve. When de-energized, the valve remains shut. In systems where vacuum pumps discharge directly to the atmosphere, the valve isolates the vacuum chamber from the supply line, preventing unintended pressure increases. In turbopump applications, it is installed in the fore-vacuum line to safeguard both the process vacuum and the turbopump from accidental venting or backflow, particularly after the backing pump is turned off or during a power outage.

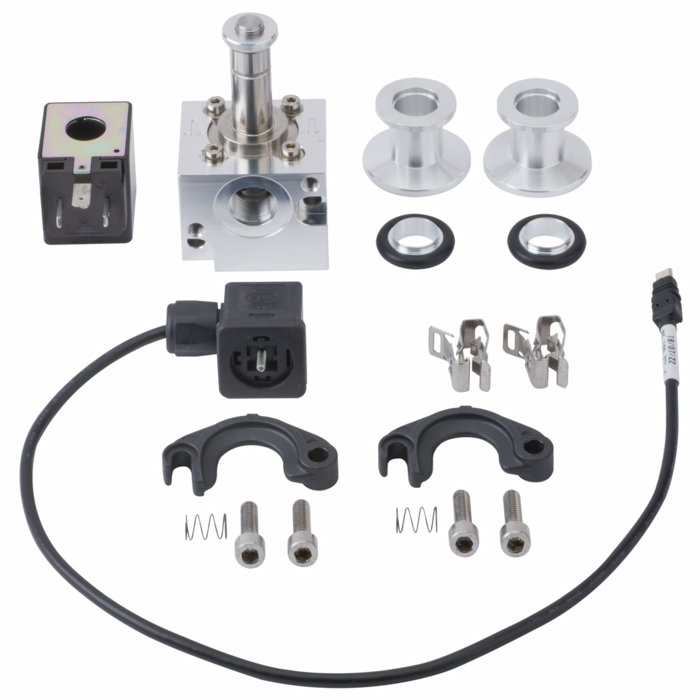

IV 16 M Scope of Delivery:
- Valve body with valve coil
- Fastening pack with components for installation
- 1x preconfigured cable with AccessLink and cable socket
- Operating instructions
IV 16 M Applications:
- Feature to protect against inadvertent venting of a turbopump after backing pump has been turned off.
- Feature to protect against inadvertent venting after vacuum pump has been turned off.
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000 / PD S10 002 B, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 012 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer IV 16 M, Vacuum Automated Safety Valve Package for Turbo Pump and HiScroll, 24 VDC, DN 25, PD Z10 050 / PDZ10050

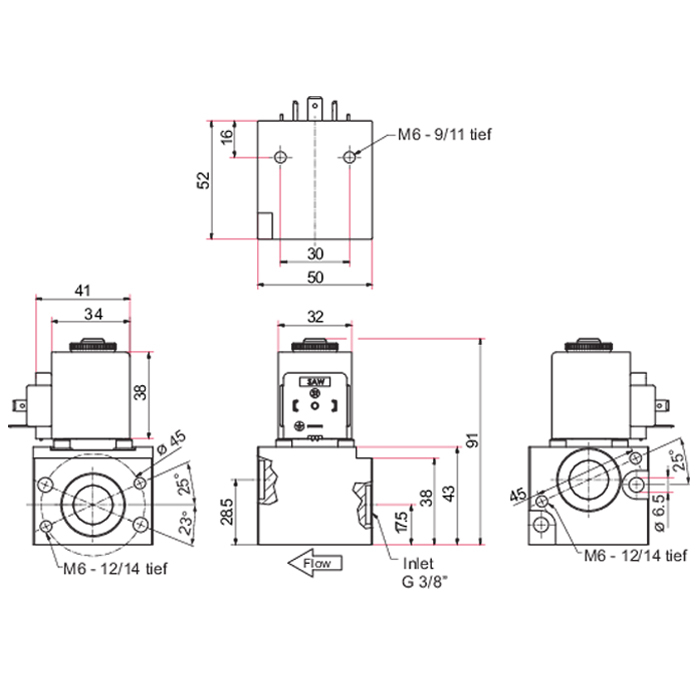

Pfeiffer IV 16 M Technical Data:
- Ambient temperature: 5 – 40 °C | 41 – 104 °F | 278.15 – 313.15 K
- Cable length: 0.47 m / 18.5 in
- Connection flange (in): DN 25 ISO-KF
- Connection flange (out): DN 25 ISO-KF
- Control voltage: 24 VDC
- Electrical connection: B industry (micro)
- Intel pressure max.: 1100 hPa (absolute) | 825 Torr | 1,100 mbar
- Input voltage(s): 24 V DC (±10 %)
- Integral leak rate: 1 · 10-7 Pa m³/s | 7.5 · 10-7 Torr l/s | 1 · 10-6 mbar l/s
- Measurement cable length min.: 0.47 m / 18.5 in
- Power consumption: 11 W
- Power consumption max.: 11 W
- Type of electronic drive unit installation: External electronic drive unit -not incl.-
- Version: Normally closed (n. c.)
- Weight approx.: 0.47 kg | 1.04 lb
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000 / PD S10 002 B, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 012 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer IV 16 M Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer IV 16 M, Vacuum Automated Safety Valve Package for Turbo Pump and HiScroll, 24 VDC, DN 25, PD Z10 050 / PDZ10050
Pfeiffer IV 16 M Key Features:
- 24 VDC Input Voltages
- Valve is normally closed
- Direct installation on the vacuum flange HiScroll, control via accessory port
- This does not have ATEX certification
IV 16 M / PDZ10050 Overview:
The vacuum safety valve is a normally closed, direct-acting 2/2-way solenoid valve. When de-energized, the valve remains shut. In systems where vacuum pumps discharge directly to the atmosphere, the valve isolates the vacuum chamber from the supply line, preventing unintended pressure increases. In turbopump applications, it is installed in the fore-vacuum line to safeguard both the process vacuum and the turbopump from accidental venting or backflow, particularly after the backing pump is turned off or during a power outage.
IV 16 M Scope of Delivery:
- Valve body with valve coil
- Fastening pack with components for installation
- 1x preconfigured cable with AccessLink and cable socket
- Operating instructions
IV 16 M Applications:
- Feature to protect against inadvertent venting of a turbopump after backing pump has been turned off.
- Feature to protect against inadvertent venting after vacuum pump has been turned off.
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000 / PD S10 002 B, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 012 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Specifications
Pfeiffer IV 16 M, Vacuum Automated Safety Valve Package for Turbo Pump and HiScroll, 24 VDC, DN 25, PD Z10 050 / PDZ10050
Pfeiffer IV 16 M Technical Data:
- Ambient temperature: 5 – 40 °C | 41 – 104 °F | 278.15 – 313.15 K
- Cable length: 0.47 m / 18.5 in
- Connection flange (in): DN 25 ISO-KF
- Connection flange (out): DN 25 ISO-KF
- Control voltage: 24 VDC
- Electrical connection: B industry (micro)
- Intel pressure max.: 1100 hPa (absolute) | 825 Torr | 1,100 mbar
- Input voltage(s): 24 V DC (±10 %)
- Integral leak rate: 1 · 10-7 Pa m³/s | 7.5 · 10-7 Torr l/s | 1 · 10-6 mbar l/s
- Measurement cable length min.: 0.47 m / 18.5 in
- Power consumption: 11 W
- Power consumption max.: 11 W
- Type of electronic drive unit installation: External electronic drive unit -not incl.-
- Version: Normally closed (n. c.)
- Weight approx.: 0.47 kg | 1.04 lb
