- Pumping speed: 2.5 m3/h
- Integrated gas ballast
- Dry and oil-free
- Robust and high performance
Shopping Cart ( )
Pfeiffer MVP 040-2 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, 2000020677 / PK T01 210 A / PKT01210A
Condition:
Remanufactured
Call us for Availability
Item#:PN20325
Mfr Part#:2000020677 / PK T01 210 A / PKT01210A
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer MVP 040-2 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, 2000020677 / PK T01 210 A / PKT01210A
Pfeiffer Vacuum MVP 040 2 Diaphrahm Pump Overview:
The Pfeiffer Vacuum MVP 040-2 series are two stage, dry compressor vacuum pumps. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 040-2 Vacuum Pump Offers the Following Features:
-
Robust and high-performance diaphragm pump with a pumping speed of up to 2.5 m3/h
-
For mains voltage: 90-126/180-254 V, 50/60 Hz
-
Integrated gas ballast valve allows few amounts of humidity
-
Ideal for applications where a dry and oi-free vacuum is required
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer MVP 040-2 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, 2000020677 / PK T01 210 A / PKT01210A
Technical Data:
| Pumping speed at 50 Hz | 2.3 m³/h | 1.35 cfm | 38.33 l/min |
| Pumping speed at 60 Hz | 2.5 m³/h | 1.47 cfm | 41.67 l/min |
| Ultimate pressure with gas ballast | 5 hPa | 3.75 Torr | 5 mbar |
| Ultimate pressure without gas ballast | 4 hPa | 3 Torr | 4 mbar |

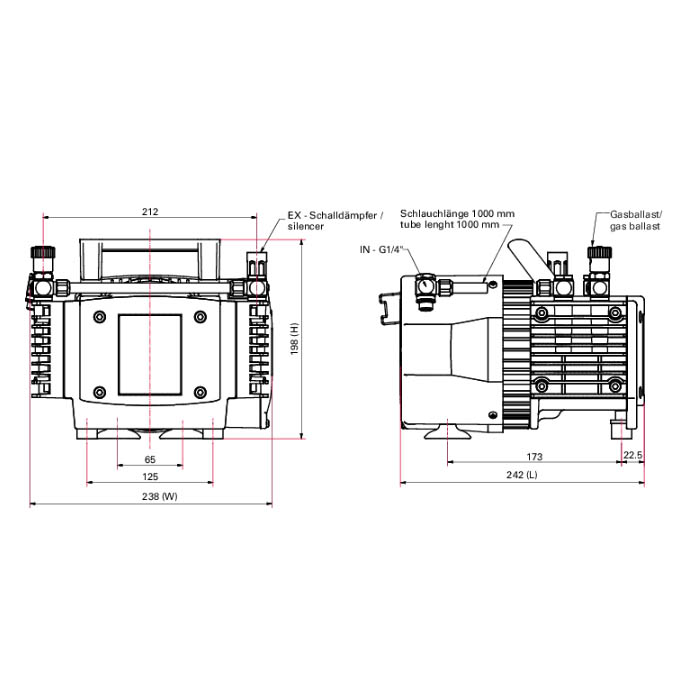

| Flange (in) | G ¼" elbow union with enclosed hose 10/8, 1000 mm with an elbow union in G ¼" at the end |
| Number of pumping stages | 2 |
| Flange (out) | G 1/4” with silencer |
| Motor version | 1-ph motor |
| Rated current absorption | 3.4 A |
| Protection category | IP40 |
| Operating altitude, max. | 2000 m |
| Cooling method, standard | Air |
| Motor protection | Thermal winding protection |
| Ambient temperature | 10-40 °C | 50-104 °F | 283-313 K |
| Temperature: Storage | -10-60 °C | 14-140 °F | 263-333 K |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Sound pressure level | 53 dB(A) |
| Emission sound pressure level without gas ballast or purge | 53 dB(A) |
| Switch New | Yes |
| Leak rate | 2 · 10-3 Pa m3/s | 1.5 · 10-2 Torr l/s | 2 · 10-2 mbar l/s |
| Weight | 11.4 kg | 25.13 lb |
