- Pumping Speed at 50 Hz: 3.8 m3/h
- Pumping Speed at 60 Hz: 4.3 m3/h
- Exhaust Pressure: 1100 mbar
- Leak Rate: 1 x 10-2 mbar l/s

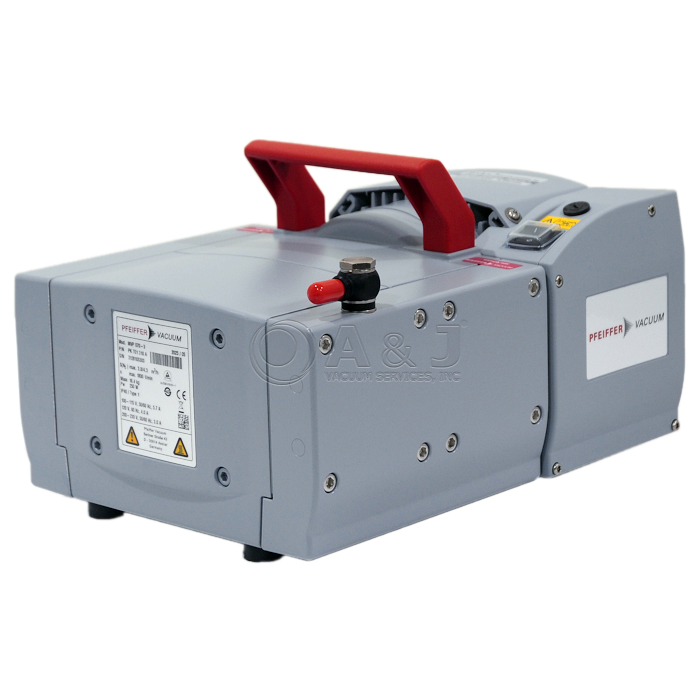

Pfeiffer Vacuum MVP 070-3 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, Pumping Speed 4.3 m³/h, PK T01 310 A / PKT01310A
Pfeiffer MVP 070-3 Diaphragm Dry Vacuum Pump Features:
- Diaphragm pump with pumping speed up to 4.3 m3/h
- Minimal vibrations and low noise level
- Dry and oil-free pump
- Suited for voltages worldwide

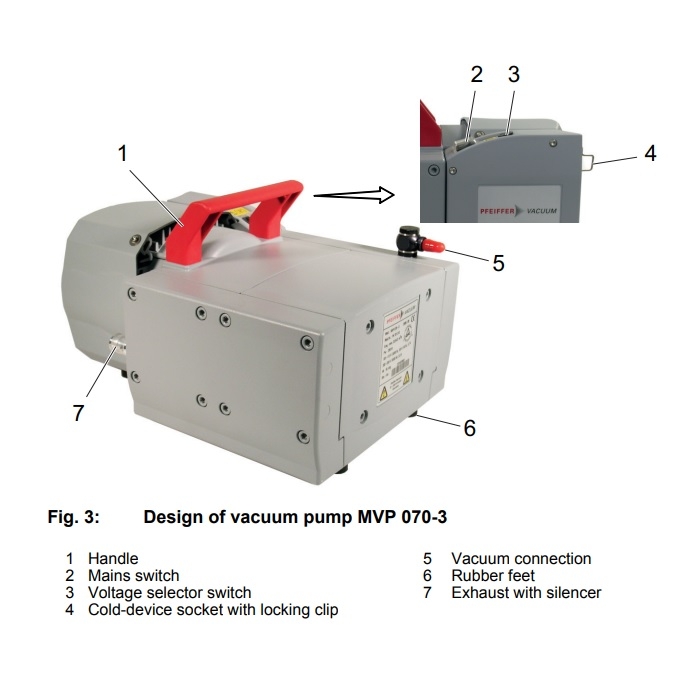

MVP 070-3 Diaphragm Dry Vacuum Pump / PKT01310A Overview:
The diaphragm vacuum pumps of the series MVP 070-3 are three stage and those of the MVP 040-2 series are two stage, dry compressor vacuum pumps. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The MVP 070-3 pump units are directly connected to the drive motor.
MVP070-3 Applications:
- Pumping Stations
- Plants
- Research
- Laboratories
- Analytical
- Chemistry
- Leak Detection
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum MVP 070-3 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, Pumping Speed 4.3 m³/h, PK T01 310 A / PKT01310A
Pfeiffer MVP 070-3 Diaphragm Dry Vacuum Pump Features:
| Ambient temperature | 10 – 40 °C | 50 – 104 °F | 283.15 – 313.15 K |
| Certification | cTUVus certified according to UL / CSA 61010-1 |

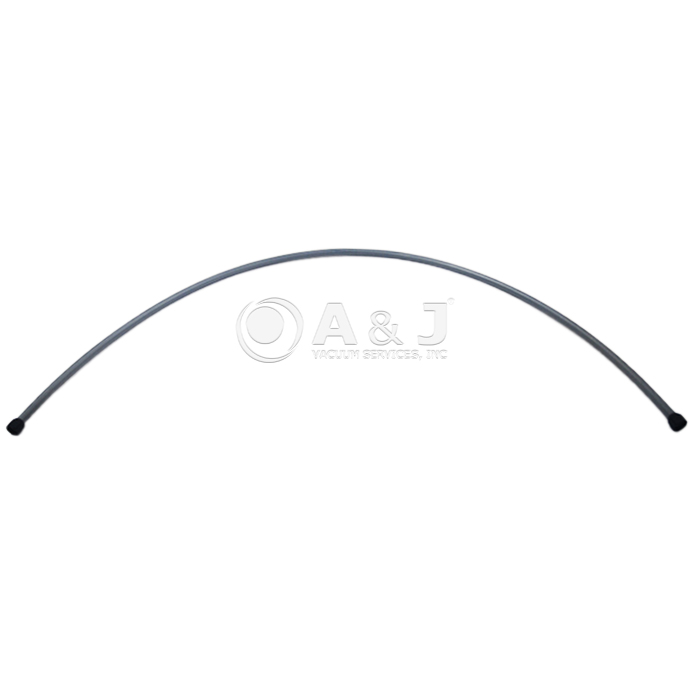

| Connection | Elbow union with enclosed hose 10/8, 1000 mm with elbow union in G ¼" thread at end |
| Connection flange | G ¼" Thread / G ¼" Silencer |
| Connection flange (in) | G ¼'' |
| Connection flange (out) | 1/4" thread with silencer |
| Cooling method | Air (Forced convection) |
| Current, max. | 5.7 A |

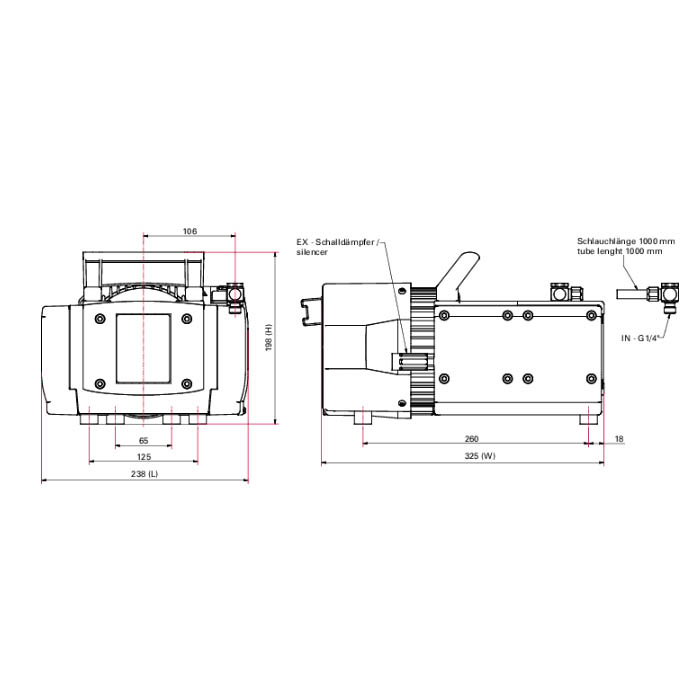

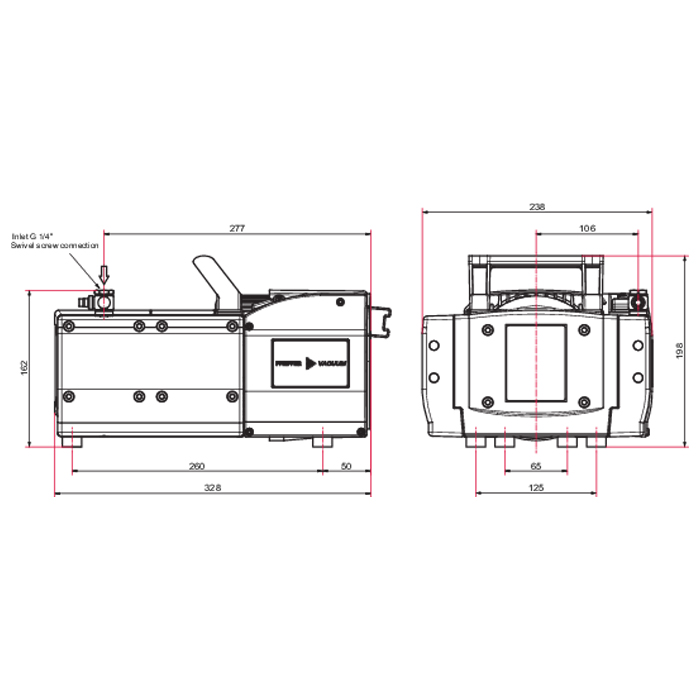

| Dimensions (L x W x H) | 328 x 238 x 198 mm | 12.91 x 9.37 x 7.8 inch |
| Emission sound pressure level (EN ISO 2151) | 52 dB(A) |
| Exhaust pressure, max. | 1100 hPa | 825 Torr | 1,100 mbar |
| Gas ballast | No |
| Input voltage(s) | 100 – 115 / 200 – 230 V AC, 50 Hz | 100 – 115 / 120 / 200 – 230 V AC (±10 %), 60 Hz |
| Intake pressure max. | 1100 hPa | 825 Torr | 1,100 mbar |
| Integral leak rate | 2 · 10-3 Pa m³/s | 1.5 · 10-2 Torr l/s | 2 · 10-2 mbar l/s |
| Mains cable | No |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Motor for region | Worldwide |
| Motor protection | Thermal winding protection |
| Motor type | 1-phase motor |
| Number of pumping stages | Three stage |
| Operating altitude, max. | 2000 m |
| Protection degree | IP40 |
| Pumping principle | Dry |

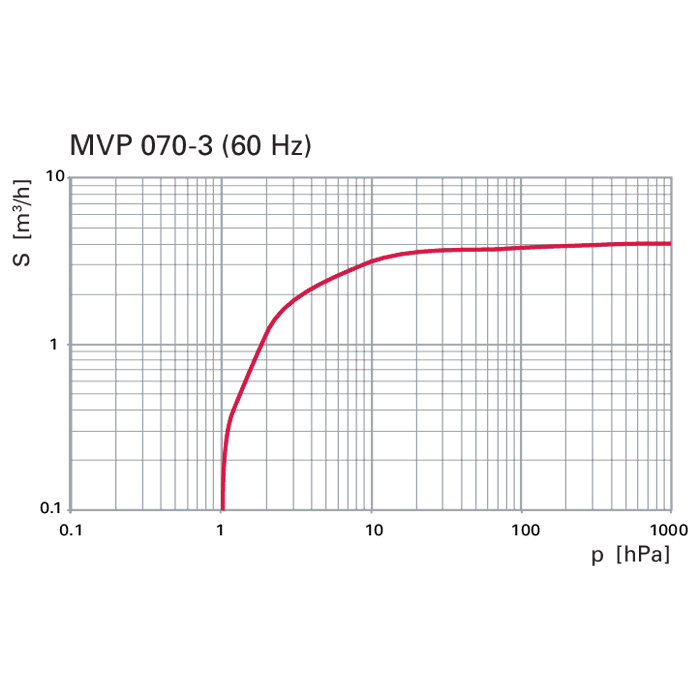

| Pumping speed at 50 Hz | 3.8 m³/h | 2.24 cfm | 63.33 l/min |
| Pumping speed at 60 Hz | 4.3 m³/h | 2.53 cfm | 71.67 l/min |
| Rotation speed at 50 Hz | 1500 rpm | 1,500 min-1 |
| Rotation speed at 60 Hz | 1800 rpm | 1,800 min-1 |
| Switch | Yes |
| Ultimate pressure | 1 hPa | 0.75 Torr | 1 mbar |
| Weight | 16.4 kg | 36.16 lb |
