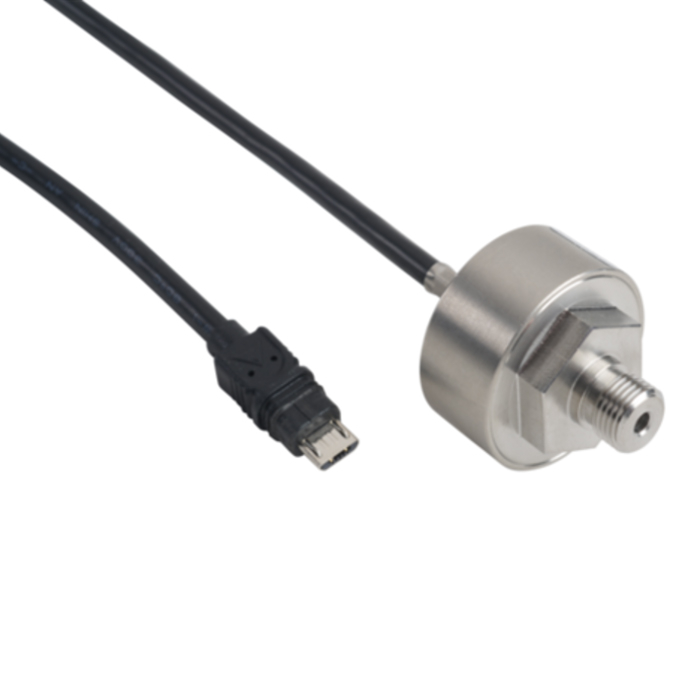

Pfeiffer RPT 010, Digital Piezo, Pirani Sensor, VDC, PT R71 550 / PTR71550
Pfeiffer RPT 010 Features:
- Pressure max.: 2000 mbar
- Input voltages: 5 VDC
- Stable and coarse vacuum measurement independent of gas type
- Compact dimensions
- Additional measurement cable not required
- Display range: 1 · 10-4 – 1200 hPa
Pfeiffer RPT 010 / PT R71 550 Overview:
The RPT 010 sensor provides stable and coarse vacuum measurement, independent of gas type. The measuring methods are Piezo and Pirani.
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer RPT 010, Digital Piezo, Pirani Sensor, VDC, PT R71 550 / PTR71550
Pfeiffer RPT 010 Technical Data:
- Accuracy of measurement in range 1: 50 % (5E-4 hPa – 1E-3 hPa) | 37.5 – 7.5 · 10-4 Torr | 50 – 1 · 10-3 mbar
- Accuracy of measurement in range 2: 15 % (1E-3 hPa – 1E2 hPa) | 11.25 – 75 Torr | 15 – 100 mbar
- Accuracy of measurement in range 3: 1.25 % (full scale) (1E2 hPa – 1.2E3 hPa) | 0.94 – 900 Torr | 1.25 – 1,200 mbar
- Ambient pressure: 790 – 1060 hPa | 592.5 – 795 Torr | 790 – 1,060 mbar
- Ambient temperature: 5 – 60 °C | 41 – 140 °F | 278.15 – 333.15 K
- Certification: CE, cTUVus certified according to UL / CSA 61010-1

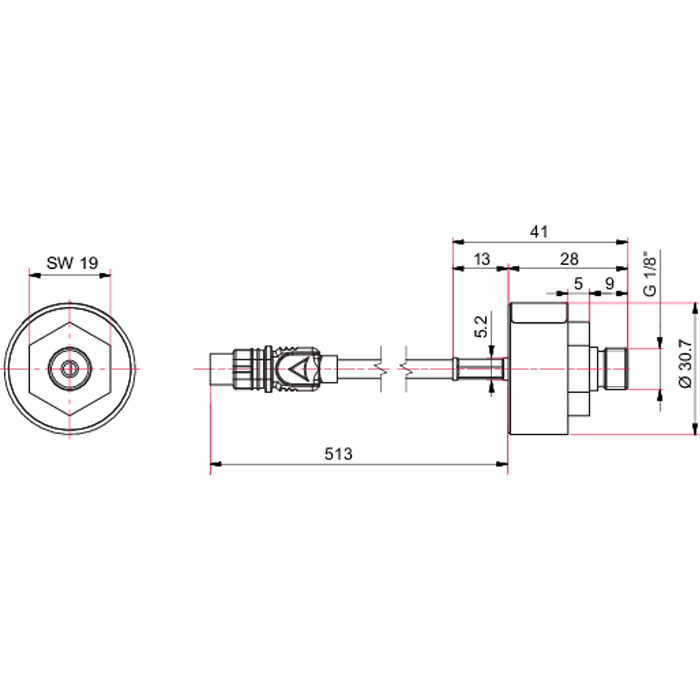

- Connection flange (in): G 1/8"
- Input voltage(s): 5 V DC
- Interface: Connection, device side - Cable with (micro USB plug)
- Materials in contact with media: Ceramic, Stainless steel, Tungsten, Silicon oxide, Glass, Araldite, Solder, Nickel
- Measuring cycle: 100 ms
- Measuring method: Piezo, Pirani
- Measuring range: 5E-4 – 1.2E3 hPa | 3.75 · 10-4 – 900 Torr | 5 · 10-4 – 1,200 mbar
- Mounting orientation: Arbitrary
- Power consumption max.: 0.25 W
- Pressure max.: 2 · 103 hPa | 1,500 Torr | 2,000 mbar
- Protection degree: IP40
- Repeatability in range 1: 3 % (1E-3 hPa – 1E2 hPa) | 2.25 – 75 Torr | 3 – 100 mbar
- Repeatability in range 2: 3 % (full scale) (1E1 hPa – 1200 hPa) | 2.25 – 900 Torr | 3 – 1,200 mbar
- Usage: Only in indoor areas
- Volume: 0.4 cm³
- Weight approx.: 92 g
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer RPT 010 Piezo Pirani Sensor Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
