- Protects Pump Against Particles
- For Pumping Speed up to 290.18 cfm
- Connection Flange: DN 63 ISO-KF
- 5 µm Grain Size (separable)

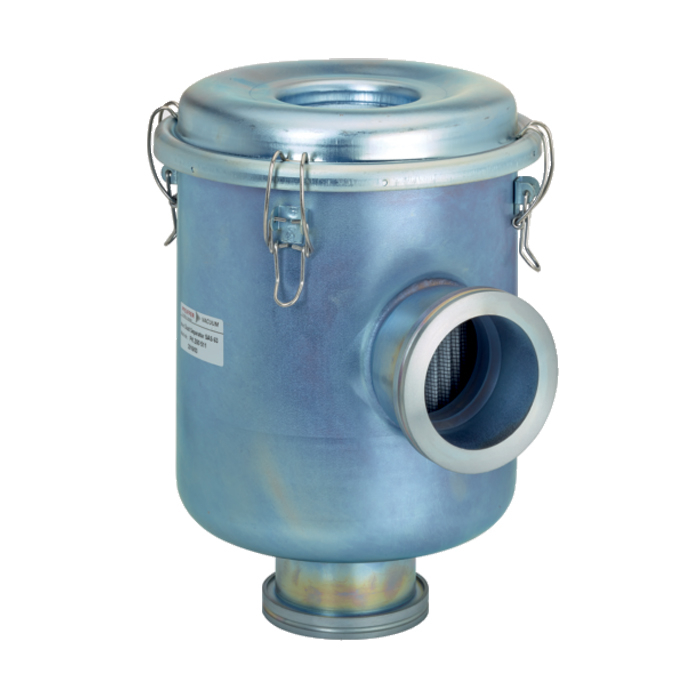

Pfeiffer SAS 63, Dust Separator, DN 63 ISO-K, PK Z60 511 A / PKZ60511A
Pfeiffer SAS 63 Features:
- For pumping speed up to 290.18 cfm
- For inlet flange
- Protects rotary vane pump against particles from process
- Longer service life of mechanical parts
Pfeiffer SAS 63 / PK Z60 511 A Overview:
The SAS 63 Dust Separator protects the vacuum pump from dust particles from the process. Installed on the intake side of the vacuum pump, it filters dust from the gas flow being pumped. The standard filter insert is made of polyester, with the gas flowing through it from the outside in. A paper filter insert is also available as an alternative.
For oil-free vacuum pumps, placing the dust separator on the exhaust side helps protect the environment by filtering out dust and particles from the discharged gas flow.
Pfeiffer SAS63 Scope of Delivery:
- Dust separator with integrated filter insert
- Protective cover for the connection flange (mounted)
- Operating instructions
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 95, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer SAS 63, Dust Separator, DN 63 ISO-K, PK Z60 511 A / PKZ60511A

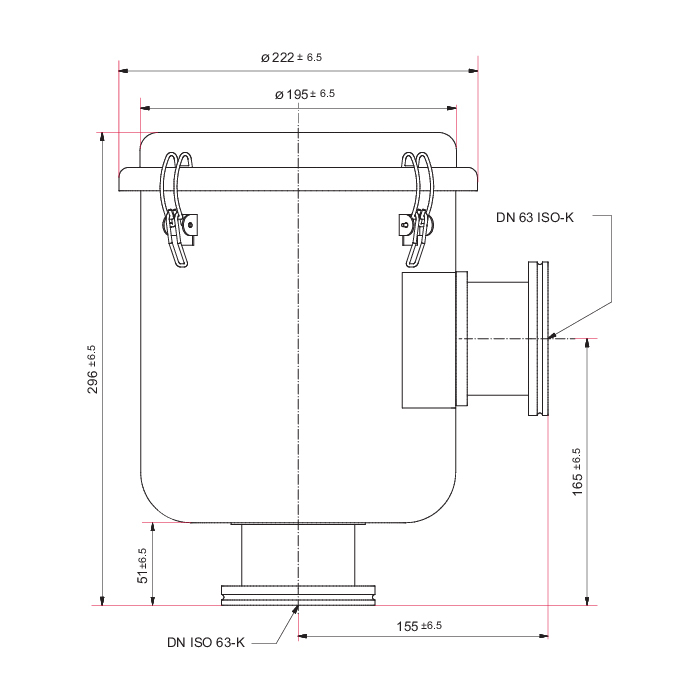

Pfeiffer SAS 63 Dust Separator Technical Data
- Conductance at 1 hPa: 660 l/s
- Conductance at 100 hPa: 3100 l/s
- Connection flange: DN 63 ISO-KF / DN 63 ISO-KF
- Connection flange (in): DN 63 ISO-KF
- Connection flange (out): DN 63 ISO-KF
- Degree of separation: 99.7%
- For pumping speed up to: 493 m³/h | 290.18 cfm | 8,216.68 l/min
- Grain size limit (separable): 5 µm
- Inlet pressure max.: Atmospheric pressure
- Integral leak rate: < 1 · 10-5 Pa m³/s | < 7.5 · 10-5 Torr l/s | < 1 · 10-4 mbar l/s
- Temperature range (vacuum side): 26 – 104 °C | 78.8 – 219.2 °F | 299.15 – 377.15 K
- Weight approx.: 5.9 kg | 13.01 lb
A&J Vacuum services and repairs Pfeiffer DuoVane 6 12 18 22 30 36 and 95, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer SAS 16-160 Dust Separators Operation Manual
Pfeiffer SAS 16-160 Dust Separators Operation Manual
Pfeiffer SAS 63 Dust Separator Data Sheet PKZ60511A
Pfeiffer SAS 63 Dust Separator Data Sheet PKZ60511A
|
