- 24 VDC Control Voltage
- AccessLink Electrical Connection
- TC 80 Electronic Drive Unit
- Shielded Venting Valve
Shopping Cart ( )

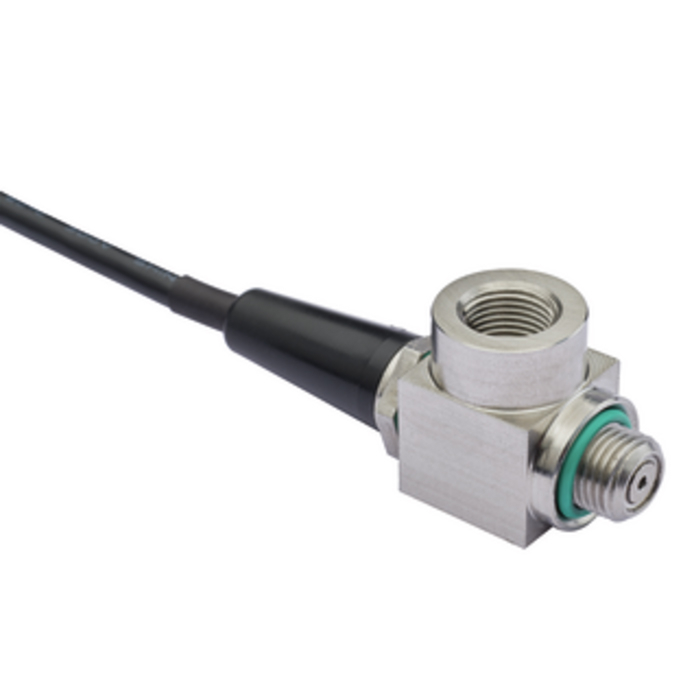

Pfeiffer Shielded Venting Valve, AccessLink, 24 VDC, 1/8" Thread for HiPace 80 Neo, 2000012887 / PM Z01 295 / PMZ01295
Condition:
New
In Stock
Item#:PN53226
Mfr Part#:2000012887 / PM Z01 295 / PMZ01295
Manufacturer:Pfeiffer-Vacuum
Features:
Pfeiffer Shielded Venting Valve, AccessLink, 24 VDC, 1/8" Thread for HiPace 80 Neo, 2000012887 / PM Z01 295 / PMZ01295
Pfeiffer Shielded Venting Valve Features:
- Control voltage: 24 VDC
- Connection: G 1/8"
- Valve closed normally
- Can be connected to accessory outputs C1 or D1 with usage of AccessLink
Shielded Venting Valve / PMZ01295 Overview:
The shielded venting valve is normally closed.
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Shielded Venting Valve, AccessLink, 24 VDC, 1/8" Thread for HiPace 80 Neo, 2000012887 / PM Z01 295 / PMZ01295

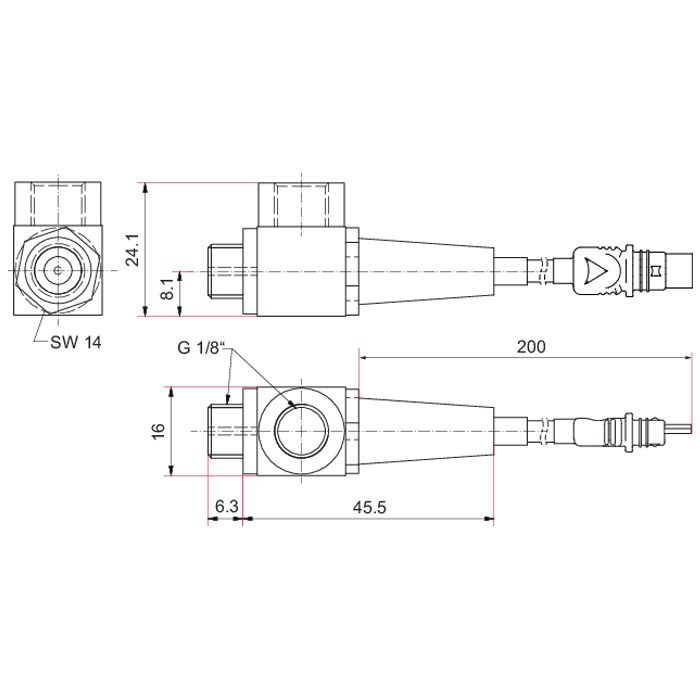

Pfeiffer Shielded Venting Valve Technical Data:
| Cable length | 200 mm | 7.87 inch |
| Connection flange | G 1/8" Thread / G 1/8" Thread |
| Connection flange (in) | G 1/8'' |
| Connection flange (out) | G 1/8" |
| Control voltage | 24 V DC |
| Electrical connection | AccessLink |
| Electronic drive unit | TC 80 |
| For pump | HiPace 80 Neo |
| Gas flow at atmospheric pressure | 130 hPa·l/s | 97.5 Torr | 130 mbar |
| Helium leakage rate, max. | < 1 · 10-9 Pa m³/s | < 7.5 · 10-9 Torr l/s | < 1 · 10-8 mbar l/s |
| Inlet pressure max. | 1500 hPa (absolute) | 1,125 Torr | 1,500 mbar |
| Integral leak rate | < 1 · 10-9 Pa m³/s | < 7.5 · 10-9 Torr l/s | < 1 · 10-8 mbar l/s |
| Weight | 45 g |
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
