- Mass Spec Turbo Pump
- PM P03 623
- Fully Rebuilt
Shopping Cart ( )

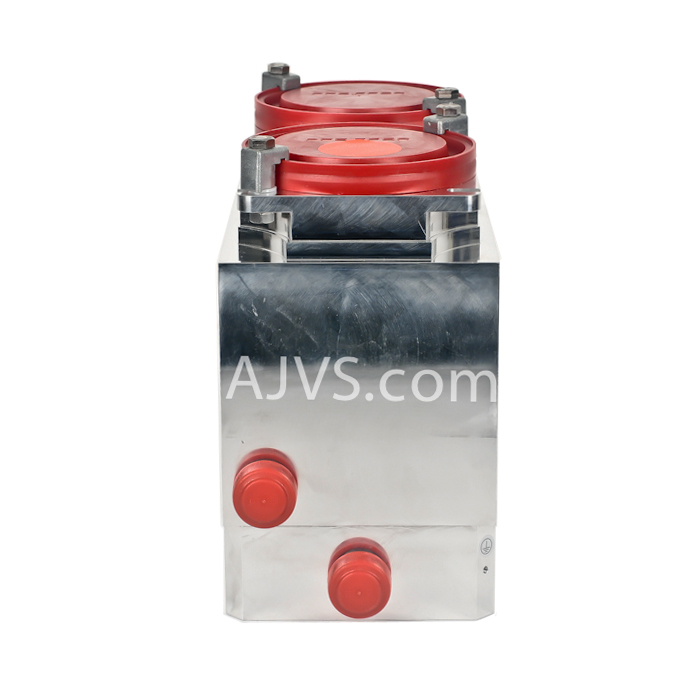

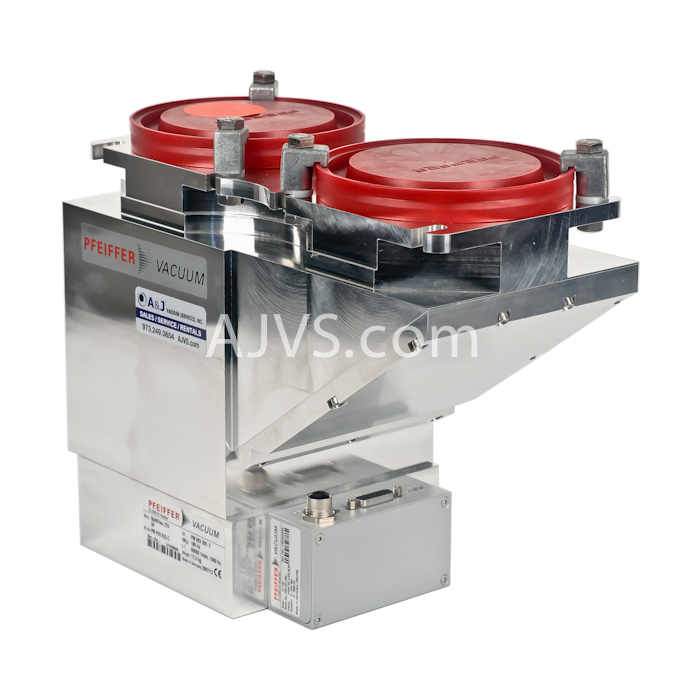

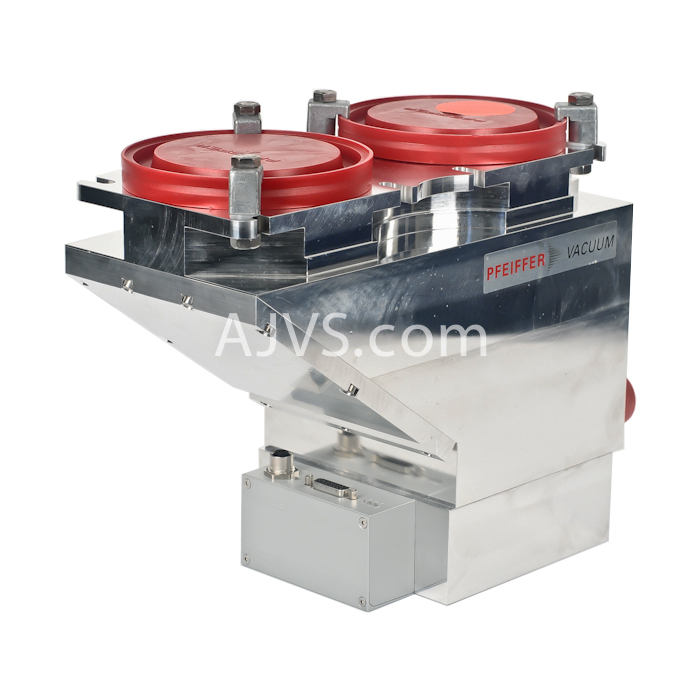

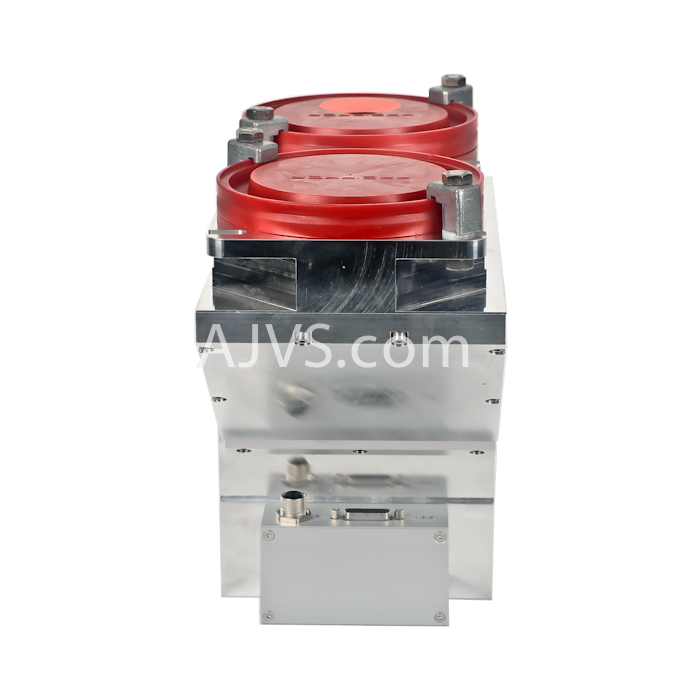

Pfeiffer Splitflow 270 Split Flow Turbo Pump PMP03623, with TC 110, PM P03 623 / PMP03623
Condition:
Remanufactured
In Stock
Item#:PN18601
Mfr Part#:PM P03 623 / PMP03623
Manufacturer:Pfeiffer Vacuum
Features:
Fully Remanufactured Pfeiffer Splitflow270 Split Flow Turbo Pump PMP03623, with TC110 Controler PMC01790, PM P03 623 / PMP03623
Pfeiffer Splitflow 270 / PM 03 623 Overview:
Pump has been design to operate inside instruments like Mass spectromenters with multiple Inlet ports. This Splitflow pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side.
The Splitflow 270 pump / PMP03623 is a well know pump and proven within Instruments industry.
Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research industry, and mass spectrometry.
It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer SplitFlow 80 Turbo Pump comes with an entire 12-Month Warranty.
Pfeiffer Splitflow 270 Technical Data:
- Fully rebuild and ready to be installed.
- Pumping speed: for N2 210-130 l/s.
- DN 100 ISO flange
- KF-25 Outlet Flange
- Ultimate pressure with rotary vane pump < 1x•10-9 mbar,
- Gas throughput for N2 7 mbar l/s,
- Fore Vacuum max. for N2 10 mbar,
- Sealing gas connection: yes,
- The gas throughput is measured at HV-pressure of 0.1 mbar and with sealing gas.
- Cooling water quantity is measured at max. gas throughput.
There are no returns, refunds or exchanges on this product.
A&J Vacuum repair / rebuild and service all Pfeiffer Splitflow 270 Turbo Pumps PMP03623 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Remanufactured Pfeiffer Splitflow270 Split Flow Turbo Pump PMP03623, with TC110 Controler PMC01790, PM P03 623
Pfeiffer Splitflow 270 Overview:
Pump has been design to operate inside instruments like Mass spectromenters with multiple Inlet ports. This Splitflow pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side.
The Splitflow 270 pump / PMP03623 is a well know pump and proven within Instruments industry.
Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research industry, and mass spectrometry.
It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer SplitFlow 80 Turbo Pump comes with an entire 12-Month Warranty.
Pfeiffer Splitflow 270 Technical Data:
- Fully rebuild and ready to be installed.
- Pumping speed: for N2 210-130 l/s.
- DN 100 ISO flange
- KF-25 Outlet Flange
- Ultimate pressure with rotary vane pump < 1x•10-9 mbar,
- Gas throughput for N2 7 mbar l/s,
- Fore Vacuum max. for N2 10 mbar,
- Sealing gas connection: yes,
- The gas throughput is measured at HV-pressure of 0.1 mbar and with sealing gas.
- Cooling water quantity is measured at max. gas throughput.
A&J Vacuum repair / rebuild and service all Pfeiffer Splitflow 270 Turbo Pumps PMP03623 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
