Fully Remanufactured Pfeiffer Splitflow270 Split Flow Turbo Pump PMP03623, with TC110 Controler  PMC01790, PM P03 623 / PMP03623

Pfeiffer Splitflow 270 / PM 03 623 Overview:

Pump has been design to operate inside instruments like Mass spectromenters with multiple Inlet ports. This Splitflow pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side.

The Splitflow 270 pump / PMP03623 is a well know pump and proven within Instruments industry.

Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research industry, and mass spectrometry.

It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer SplitFlow 80 Turbo Pump comes with an entire 12-Month Warranty.

Pfeiffer Splitflow 270 Technical Data:

• Fully rebuild and ready to be installed.
• Pumping speed: for N2 210-130 l/s.
• DN 100 ISO flange
• KF-25 Outlet Flange
• Ultimate pressure with rotary vane pump < 1x•10-9 mbar,
• Gas throughput for N2 7 mbar l/s,
• Fore Vacuum max. for N2 10 mbar,
• Sealing gas connection: yes,
• The gas throughput is measured at HV-pressure of 0.1 mbar and with sealing gas.
• Cooling water quantity is measured at max. gas throughput.

There are no returns, refunds or exchanges on this product.

A&J Vacuum repair / rebuild and service all Pfeiffer Splitflow 270 Turbo Pumps  PMP03623 along with all other  Pfeiffer  Vacuum Pumps and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

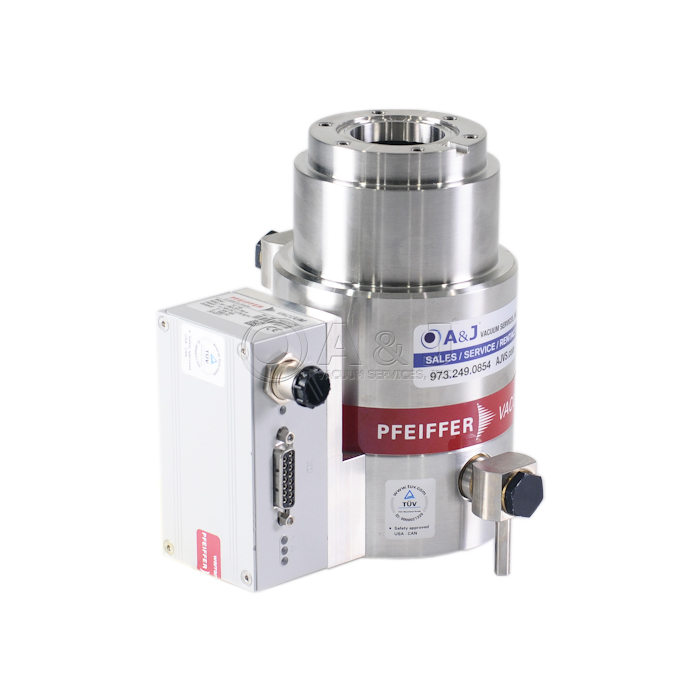

Fully Remanufactured Pfeiffer Splitflow 80 Split Flow Turbo Pump PMP04012A, with TC 110 PMC01790, PM P04 012, Inficon P/N 032-0079

Pfeiffer Splitflow 80 Overview:

Pump has been design to operate as part of Inficon Transpector® CPM 2.5 Compact Process Monitor. Pump P/N 923-723-G1 CDG 025D.

This Splitflow pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side.

Inficon System Information CMP11202001422201T The Splitflow 80 pump / PMP04012 is a well know pump and proven within Instruments industry.

Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research industry, and mass spectrometry.

It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer SplitFlow 80 Turbo Pump comes with an entire 12-Month Warranty.

Pfeiffer Splitflow 80 Technical Data:

• Fully rebuild and ready to be installed.
• Pumping speed: for N2 70 l/s.
• DN 35 CF-F flange
• Ultimate pressure with rotary vane pump < 1x•10-9 mbar,

There are no returns, refunds or exchanges on this product.

A&J Vacuum repair / rebuild and service all Pfeiffer Splitflow 80 Turbo Pumps  PMP04012A along with all other  Pfeiffer  Vacuum Pumps and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Pfeiffer Splitflow 310 Split Flow Turbo Pump PM P04 299, with TC 400, PM C01 800, Thermo Fisher P/N 1310410TF

Pfeiffer Splitflow 310 / PM P04 299 Overview:

SplitFlow 310 Turbo Pump has been designed and used in Thermo Fisher instruments.  Has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side.

Pfeiffer Vacuum Splitflow Turbo pump is designed for Thermo Fisher Q Exactive and a wide range of applications in research industry, and mass spectrometry.

It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

The Pfeiffer SplitFlow 310 / PMP04299 Turbo Pump is the source pump on the  Thermo Fisher Q Exactive system.

A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.

A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.

There are no returns, refunds or exchanges on this product.

A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Splitflow 310 PMP04299 / PM P04 299 Turbo Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Fully Remanufactured Pfeiffer Splitflow 80 Split Flow Turbo Pump PMP04316A, with TC 110 PMC01790A, PM P04 316

Please note: vent valve and conncting cable not included.

Pfeiffer Splitflow 80 Overview:

This Splitflow pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side.

Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research industry, and mass spectrometry.

It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer SplitFlow 80 Turbo Pump comes with an entire 12-Month Warranty.

The Splitflow 80 pump / PMP04316 is a well know pump and proven within Instruments industry.

Pfeiffer Splitflow 80 Technical Data:

• Fully rebuild and ready to be installed.
• Pumping speed: for N2 70 l/s.
• Dual Inlet Flange
• Ultimate pressure with rotary vane pump < 1x•10-9 mbar,
• Oil Lubricant PM143740-T

There are no returns, refunds or exchanges on this product.

A&J Vacuum repair / rebuild and service all Pfeiffer Splitflow 80 Turbo Pumps  PMP04012A along with all other  Pfeiffer  Vacuum Pumps and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

New Open Box Pfeiffer Splitflow 310 Turbo Pump PM P04 291 C, with TC 400 PM C01 800 A Turbo Pump Controller

Pfeiffer Split flow 310 / PMP04291 Overview:

The Pfeiffer Vacuum Splitflow 310 / PM P04 291 Turbo pump is designed For Shimadzu LC-MS/MS 8050 / and LCMS 8060, S225-14179 and a wide range of applications in research industry, and mass spectrometry.

It has been thoroughly examined and is ready for broad range of applications within the research and mass spectrometry.

The Pfeiffer Vacuum Split Flow 310 Turbo Pump comes equipped with TC400 Turbo Pump controller, P/N PM C01 800A

The Pfeiffer SplitFlow 310 Turbo Pump comes with an entire 12-Month Warranty.

Pfeiffer Vacuum is a leader in Split flow turbomolecuar pumps built for mass spectrometer and analytical industry.

For Shimadzu LC-MS/MS 8050 / S225--14179

A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Splitflow 310 PM P04 291B / PMP04291B Turbo Pumps  along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Pfeiffer Splitflow 290 3P Split Flow Turbo Pump PMP03627, with TC 400, PMC01805 Turbo Pump Controller, Agilent G1960-80125

Pfeiffer Splitflow 290 Overview:

SplitFlow 290 Turbo Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side.

Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research industry, and mass spectrometry.

It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer SplitFlow 310 Turbo Pump comes with an entire 12-Month Warranty.

A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.

A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.

There are no returns, refunds or exchanges on this product.

A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Splitflow 290 PMP03627 / PM P03 627 Turbo Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Pfeiffer Splitflow 290 Split Flow Turbo Pump PM P04 293, with TC 400, PM C01 805A Turbo Pump Controller.  Pump designed for Thermo Surveyor MSQ Plus Mass Spectrometer.

Pfeiffer Splitflow 290 / PMP04293 Overview:

SplitFlow 290 Turbo Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side.

Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research and mass spectrometry Industry.

Pfeiffer Splitflow 290 / PMP04293 has two inlet port openings design has been designed for a special applicationon the basis of the Splitflow principle. This turbopump can only be operated in conjunction with its designated components.

The Pfeiffer SplitFlow290 Turbo Pump comes with 12-Month Warranty.

There are no returns, refunds or exchanges on this product.

A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Splitflow 290 PMP04293 / PM P04 293 Turbo Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Pfeiffer Vacuum Splitflow 300 Plus Turbo Pump with TC 110 Controller, DN 100 ISO-K, PMP04034B, PM P04 034 B

Pfeiffer Splitflow 300 Plus / PM P04 034 B Overview:

The Pfeiffer Splitflow 300 Plus PMP04034 B 100 ISO-K is a complete line of compact yet powerful Pfeiffer turbo pumps featuring pumping speed of  245 l/s N2. These Splitflow 300 plus models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.

The Pfeiffer Splitflow 300 Plus Turbo Pump proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.

This Splitflow 300 Plus Turbo Pump comes with a TC-110 (PMC01790A) Controller.

The difference between Hipace 300 and Splitflow 300 is only the Splitflow 300 Plus has the intermediate port.

There are no returns, refunds or exchanges on this product.

Pfeiffer Splitflow 300 Plus Characteristic:

Pfeiffer Splitflow 300 Plus PM P 04 034 B Turbo Pump Features:

• Rugged, powerful turbopump with a pumping speed of up to 245 l/s for N2
• Integrated drive electronics TC110
• Perfect solution for coating and semiconductor processes as well as for dusty industrial applications like electron-beam welding facilities
• For installation in any orientation
• With integrated water cooling for maximum gas throughput
• Flexible through the ability to employ up to 4 accessories
• Ideal for fast cycles
• Extensive accessories expand the range of applications
• Insensitive to dust

Pfeiffer Vacuum Splitflow 300 Plus Turbo Pump Dimensions:

A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Splitflow 300 plus Turbo  Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer Splitflow 310 Split Flow Turbo Pump PM P03 629 D, with TC 400 PM C01 800 A Turbo Pump Controller for Thermo Fisher Orbitrap Qexactive Mass spectrometer (MS)
