- Portable Dual Piezo / Pirani Measurement Mode Controller
- Integrated Li-Ion battery (3500mAh)
- Measurement Range: 5E-5 – 1.2E3 hPa | 3.75 · 10-5 – 900 Torr | 5 · 10-5 – 1,200 mbar
- Utilizes DN 16 ISO-KF Model Connecting Flange

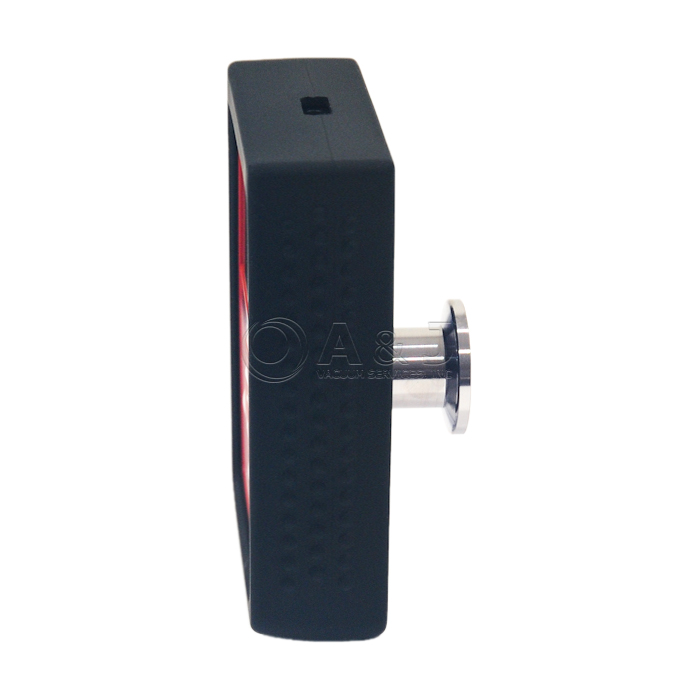

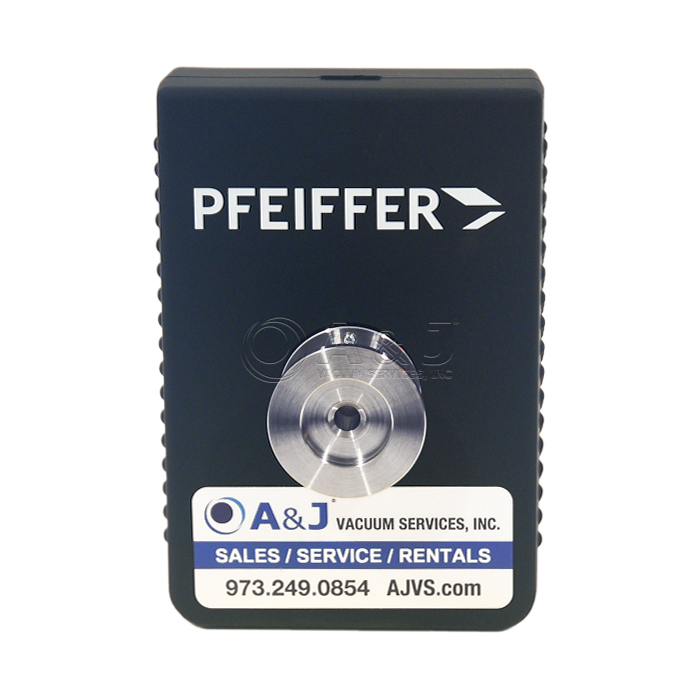

Pfeiffer Vacuum TPG 202 Neo Piezo/Pirani Portable Vacuum Gauge, manual hand held measuring device, DN 16 ISO-KF ,PT G28 212 / PTG28212, TPG202 Neo
Product Features - Pfeiffer TPG 202 / PT G28 212 Neo Piezo / Pirani Portable Vacuum Gauge:
- Measurement Range from 5 x 10-5] mbar to 1200 hPa
- Optimized user-friendliness: thanks to the large LCD display and the easy-to-use navigation panel, which increases user-friendliness
- Direct data acquisition and storage as a TSV file : The data is still stored directly as a TSV file, so that software is no longer required. The measured values are evaluated directly in Excel
- Increased storage capacity: over 4 million measurement points can be stored for reliable measurement monitoring, allowing the customer to record multiple measurements over several days
- Battery-Operated Manual Measurement Unit
- Portable Pirani/Piezo Mode Vacuum Gauge

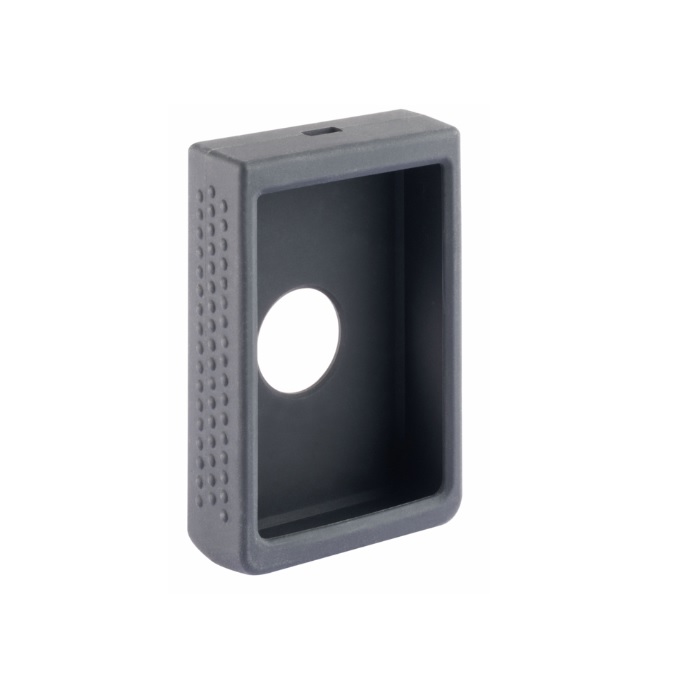

- Including silicone protective cover: No more worries about dust or fine particles. The protective cover also increases the durability of the TPG 202 Neo
- Second piezoresistive sensor: For relative pressure measurement in the atmosphere eliminates the uncertainty associated with atmospheric pressure changes
Accesories Kit w/Power Supply, Battery, USB Cable and Software can be Ordered Seperately, P/N PT 350 102-T PN
A Brief Overview of Pressure Measurement Within a Vacuum System:
Pressure measurement is the analysis of an applied force by a fluid (liquid or gas) on a surface. Pressure is typically measured in units of force per unit of surface area - the Pascal (Pa) is the SI unit commonly used to measure pressure, equivalent to one newton per square meter. Alternatively, pounds per square inch (psi) can also be used as a unit of pressure measurement. In determining the degree of pressure within a vacuum or system, most gauges measure pressure relative to atmospheric pressure, a level referred to as the zero point. Vacuum gauges are especially precise instruments, as they are able to detect the slightest deviations from a state of total vacuum. Any reading greater than total vacuum in such a state constitutes a form of pressure, and thus a vacuum gauge uses total vacuum as the zero point. A vacuum gauge utilizes an absolute scale, whereby the lever begins at the zero point (a complete absence of pressure within a state of total vacuum) and can only change in one direction (as pressure increases).
Differential pressure is likewise an important concept in the field of pressure measurement, as it conveys the difference in pressure between two points or systems. Often times, this refers to the difference between standard atmospheric pressure (typically about 100 kPa at sea level) and the pressure within a vacuum environment. Differential pressure analyses are commonly used in industrial processing systems, and are incorporated within many of the products sold and serviced by A&J Vacuum Services. Differential pressure gauges feature two inlet ports, each connected to one of the two environments where pressure is to be monitored. By monitoring the pressure differential between a near-vacuum environment and one featuring standard atmospheric pressure, the user/operator may obtain an accurate pressure reading by subtracting the difference in total pressure between the two systems.
Controller Dimensions:
A&J Vacuum services and repairs Pfeiffer Vacuum TPG 202 Neo Piezo / Pirani Manual Handheld Gauge Controllers, along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum TPG 202 Neo Piezo/Pirani Portable Vacuum Gauge, manual hand held measuring device, DN 16 ISO-KF ,PT G28 212 / PTG28212, TPG202 Neo
Technical Data:
| Accuracy in range 1 | 10 % (of measured value) (1E-3 hPa – 4E1 hPa) | 7.5 – 30 Torr | 10 – 40 mbar |
| Accuracy in range 2 | 0.3 % (full scale) (4E1 hPa – 1.2E3 hPa) | 0.22 – 900 Torr | 0.3 – 1,200 mbar |
| Ambient Temperature | 5-50 °C | 41-122 °F | 278-323 K |
| Measuring method | Integrated Li-Ion battery (3500mAh) |
| Feature | Piezo / Pirani Measuring Sensor |
| Materials in Contact w/ Media | Stainless Steel, Gold, Nickel, Tungsten, Glass, Silicon oxide, Epoxy, Polyamide, SnAg solder |
| Measurement Range | 5E-5 – 1.2E3 hPa | 3.75 · 10-5 – 900 Torr | 5 · 10-5 – 1,200 mbar |
| Nominal Diameter / Flange Model | DN 16 ISO-KF |
| Pressure - Maximum | 10000 hPa | 7,500 Torr | 10,000 mbar |
| Protection Category | IP40 |
| Electrical connection | USB-C |
| Memory rate | 20 ms - 60 s |
| Weight | 0.25 kg | 0.55 lb |
A&J Vacuum services and repairs Pfeiffer Vacuum TPG 202 Neo Pirani/Piezo Handheld Gauge Controllers, along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum TPG202 Neo Manual, TPG202 Neo
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
