Leybold Thermovac TM 101 Compact Digital Piezo/Pirani Combination Vacuum Gauge for Pressure Measurement, 230081V01
Leybold Thermovac TM101 Overview:
The Leybold TM 101 / 230081V01 Combination portable vacuum gauge is measuring total pressure in the range 1200 - 5x10-4 mbar.
The TM101 unit is equipped with a Piezo/Pirani combination sensor and temperature compensated. It can be mounted to suitable flanges. When using a suitable battery, the instrument can also be operated completely under vacuum. Pressure is displayed continuously over the whole measurement range.
Due to the integrated data logger functionality it is possible to store up to 2000 measurements in the vacuum meter. By means of the USB interface you can transmit the stored measurement data to a PC or record measurements online
on PC as well.
Leybold Thermovac TM101 Dimensions:
Click Here for TM 101 Instruction Manual.pdf
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold DISPLAY ONE Single Channel Vacuum Display Vacuum Gauge 230001
Leybold Display One Overview:
The Leybold The DISPLAY ONE serves as a simple power supply and display unit for the transmitters from the series THERMOVAC and PENNINGVAC and also for DU sensors.
The Leybold The DISPLAY ONE is designed for being installed into a rack according (19", 2 HU)
Applicable Transmitters
THERMOVAC
- TTR90
- TTR90S
- TTR91, TTR91S
- TTR96
- TTR211S
- TTR216S
- TTR100
- TTR100S2
- TTR101
- TTR101S2
PENNINGVAC
- PTR90
DU Sensor
- DU200
- DU201
- DU2000
- DU2001
Typical Leybold Display One applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold Display One Dimensions:
Click Here for Display One Operating Manual.pdf
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold DISPLAY TWO Dual Channel Vacuum Display Vacuum Gauge 230024
Leybold Display Two Overview:
The Leybold The DISPLAY TWO serves as a simple power supply and display unit for the transmitters from the series THERMOVAC and PENNINGVAC and also for DU sensors.
The Leybold The DISPLAY TWO is designed for being installed into a rack according (19", 2 HU)
Applicable Transmitters
THERMOVAC
- TTR90
- TTR90S
- TTR91, TTR91S
- TTR96
- TTR211S
- TTR216S
- TTR100
- TTR100S2
- TTR101
- TTR101S2
PENNINGVAC
- PTR90
DU Sensor
- DU200
- DU201
- DU2000
- DU2001
Typical Leybold Display TWO applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold Display Two Dimensions:
Click Here for DISPLAY TWO and THREE Operating Manual.pdf
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold DISPLAY THREE Triple Channel Vacuum Display Vacuum Gauge 230025
Leybold Display Three Overview:
The Leybold The DISPLAY THREE serves as a simple power supply and display unit for the transmitters from the series THERMOVAC and PENNINGVAC and also for DU sensors.
The Leybold The DISPLAY THREE is designed for being installed into a rack according (19", 2 HU)
Applicable Transmitters
THERMOVAC
- TTR90
- TTR90S
- TTR91, TTR91S
- TTR96
- TTR211S
- TTR216S
- TTR100
- TTR100S2
- TTR101
- TTR101S2
PENNINGVAC
- PTR90
DU Sensor
- DU200
- DU201
- DU2000
- DU2001
Typical Leybold DISPLAY THREE applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold Display Three Dimensions:
Click Here for DISPLAY TWO and THREE Operating Manual.pdf
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold GRAPHIX ONE Thermovac Vacuum Gauge 230680V01
Leybold Graphix One Overview:
Universal 1 channel display and operating unit with persistent display of all measurement channels, suited for the active sensors of the THERMOVAC, CERAVAC, linear sensors (DU series), PENNINGVAC and IONIVAC series.
Advantages to the User for Leybold Graphix One:
- Display range from 1 x 10-10 to 2000 mbar
- 3.5" touch screen display with intuitive menu interface
- Graphic display of the measurement data
- Internal and external (front side USB) storing of measurement data and configuration files
- Leak rate indication based on the pressure rise method
- 6 adjustable variable hysteresis switching thresholds, floating changeover contacts and visual indication of the switching status in the display area, freely assignable to the individual measurement channels
- Different visualisation options (graphs and decimal display with zoom function)
- For connection of all active sensors of other brands
- Degas function for ITR transmitters
- Zero alignment for CTR transmitters
- 3 separate chart recorder outputs 0 to 10 V for each measurement channel (analogue output)
- 4th programmable chart recorder output optional
- RS 232 C / RS 485 C interface with adjustable baud rate
- Relay output for error indication
- Display selectable between mbar, Torr, micron, Pascal or psi
- Compact installation and benchtop enclosure (1/4 19" 3 HU)
- Software update via USB optional
- Languages: English, German, Chinese, Japanese, French; Italian, Spanish, Korean
- Visualisation through LEYASSIST running on a PC
Applicable Transmitters
THERMOVAC
- TTR 211 / TTR 216 S
- TTR 90 / TTR 91 / TTR 91 N
- TTR 96 S / TTR 96 N S
- TTR 100 / TTR 100 S2
- TTR 101 / TTR 101 N / TTR 101 S2 / TTR 101 N 2S
- TTR 911 / TTR 911 N
- TTR 916 / TTR 916 N
CERAVAC
- CTR 90 / CTR 91
- CTR 100 / CTR 100 N
- CTR 101 / CTR 101 N
Linear pressure sensors
- DU 200 / DU 201
- DU 2000 / DU 2001
- DU 2001 rel.
PENNINGVAC
- PTR 90 / PTR 90 N
- PTR 225 / PTR 225 N
- PTR 225 S / PTR 225 N S
- PTR 237 / PTR 237 N
IONIVAC
- ITR 90 / ITR 90 N
- ITR 200 S / ITR 200 N S
- ITR 200 N SL
Other brands
- Active sensors with linear or logarithmic output
Typical Leybold Graphix One applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold Graphix One Thermovac Controller Dimensions:
Click Here for Graphix One Operating Manual.pdf
Click Here for Leybold Graphix One Broshure.pdf
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

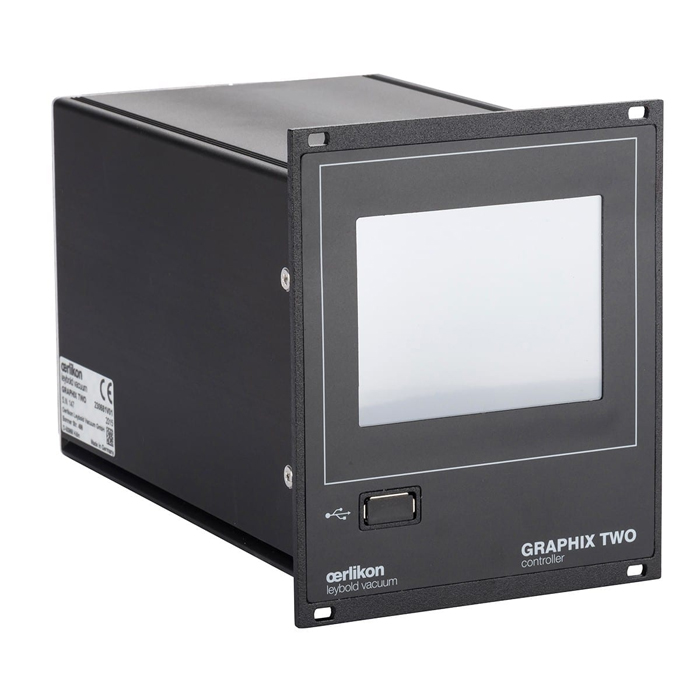

Leybold GRAPHIX TWO Thermovac Vacuum Gauge Controller 230681V01
Leybold Graphix Two Overview:
Universal 2 channel display and operating unit with persistent display of all measurement channels, suited for the active sensors of the THERMOVAC, CERAVAC, linear sensors (DU series), PENNINGVAC and IONIVAC series.
Advantages to the User for Leybold Graphix Two:
- Display range from 1 x 10-10 to 2000 mbar
- 3.5" touch screen display with intuitive menu interface
- Graphic display of the measurement data
- Internal and external (front side USB) storing of measurement data and configuration files
- Leak rate indication based on the pressure rise method
- 6 adjustable variable hysteresis switching thresholds, floating changeover contacts and visual indication of the switching status in the display area, freely assignable to the individual measurement channels
- Different visualisation options (graphs and decimal display with zoom function)
- For connection of all active sensors of other brands
- Degas function for ITR transmitters
- Zero alignment for CTR transmitters
- 3 separate chart recorder outputs 0 to 10 V for each measurement channel (analogue output)
- 4th programmable chart recorder output optional
- RS 232 C / RS 485 C interface with adjustable baud rate
- Relay output for error indication
- Display selectable between mbar, Torr, micron, Pascal or psi
- Compact installation and benchtop enclosure (1/4 19" 3 HU)
- Software update via USB optional
- Languages: English, German, Chinese, Japanese, French; Italian, Spanish, Korean
- Visualisation through LEYASSIST running on a PC
Applicable Transmitters
THERMOVAC
- TTR 211 / TTR 216 S
- TTR 90 / TTR 91 / TTR 91 N
- TTR 96 S / TTR 96 N S
- TTR 100 / TTR 100 S2
- TTR 101 / TTR 101 N / TTR 101 S2 / TTR 101 N 2S
- TTR 911 / TTR 911 N
- TTR 916 / TTR 916 N
CERAVAC
- CTR 90 / CTR 91
- CTR 100 / CTR 100 N
- CTR 101 / CTR 101 N
Linear pressure sensors
- DU 200 / DU 201
- DU 2000 / DU 2001
- DU 2001 rel.
PENNINGVAC
- PTR 90 / PTR 90 N
- PTR 225 / PTR 225 N
- PTR 225 S / PTR 225 N S
- PTR 237 / PTR 237 N
IONIVAC
- ITR 90 / ITR 90 N
- ITR 200 S / ITR 200 N S
- ITR 200 N SL
Other brands
- Active sensors with linear or logarithmic output
Typical Leybold Graphix Two applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold Graphix Two Thermovac Controller Dimensions:
Click Here for Graphix Two Operating Manual.pdf
Click Here for Leybold Graphix Two Broshure.pdf
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold GRAPHIX THREE Thermovac Vacuum Gauge Controller 230682V01
Leybold Graphix Three Display Overview:
Universal 1 channel display and operating unit with persistent display of all measurement channels, suited for the active sensors of the THERMOVAC, CERAVAC, linear sensors (DU series), PENNINGVAC and IONIVAC series.
Advantages to the User for Leybold Graphix Three:
- Display range from 1 x 10-10 to 2000 mbar
- 3.5" touch screen display with intuitive menu interface
- Graphic display of the measurement data
- Internal and external (front side USB) storing of measurement data and configuration files
- Leak rate indication based on the pressure rise method
- 6 adjustable variable hysteresis switching thresholds, floating changeover contacts and visual indication of the switching status in the display area, freely assignable to the individual measurement channels
- Different visualisation options (graphs and decimal display with zoom function)
- For connection of all active sensors of other brands
- Degas function for ITR transmitters
- Zero alignment for CTR transmitters
- 3 separate chart recorder outputs 0 to 10 V for each measurement channel (analogue output)
- 4th programmable chart recorder output optional
- RS 232 C / RS 485 C interface with adjustable baud rate
- Relay output for error indication
- Display selectable between mbar, Torr, micron, Pascal or psi
- Compact installation and benchtop enclosure (1/4 19" 3 HU)
- Software update via USB optional
- Languages: English, German, Chinese, Japanese, French; Italian, Spanish, Korean
- Visualisation through LEYASSIST running on a PC
Applicable Transmitters
THERMOVAC
- TTR 211 / TTR 216 S
- TTR 90 / TTR 91 / TTR 91 N
- TTR 96 S / TTR 96 N S
- TTR 100 / TTR 100 S2
- TTR 101 / TTR 101 N / TTR 101 S2 / TTR 101 N 2S
- TTR 911 / TTR 911 N
- TTR 916 / TTR 916 N
CERAVAC
- CTR 90 / CTR 91
- CTR 100 / CTR 100 N
- CTR 101 / CTR 101 N
Linear pressure sensors
- DU 200 / DU 201
- DU 2000 / DU 2001
- DU 2001 rel.
PENNINGVAC
- PTR 90 / PTR 90 N
- PTR 225 / PTR 225 N
- PTR 225 S / PTR 225 N S
- PTR 237 / PTR 237 N
IONIVAC
- ITR 90 / ITR 90 N
- ITR 200 S / ITR 200 N S
- ITR 200 N SL
Other brands
- Active sensors with linear or logarithmic output
Typical Leybold Graphix Three applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold Graphix Three Thermovac Controller Dimensions:
Click Here for Graphix Three Operating Manual.pdf
Click Here for Leybold Graphix Three Broshure.pdf
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
