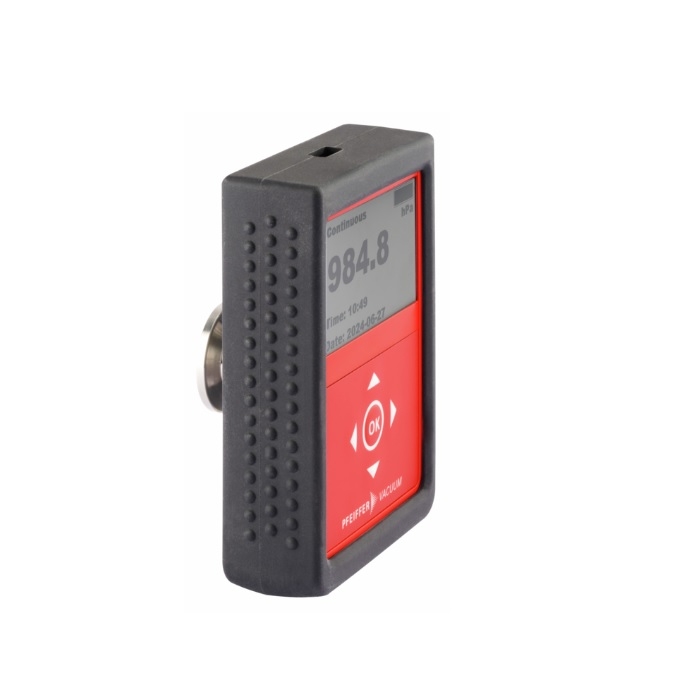

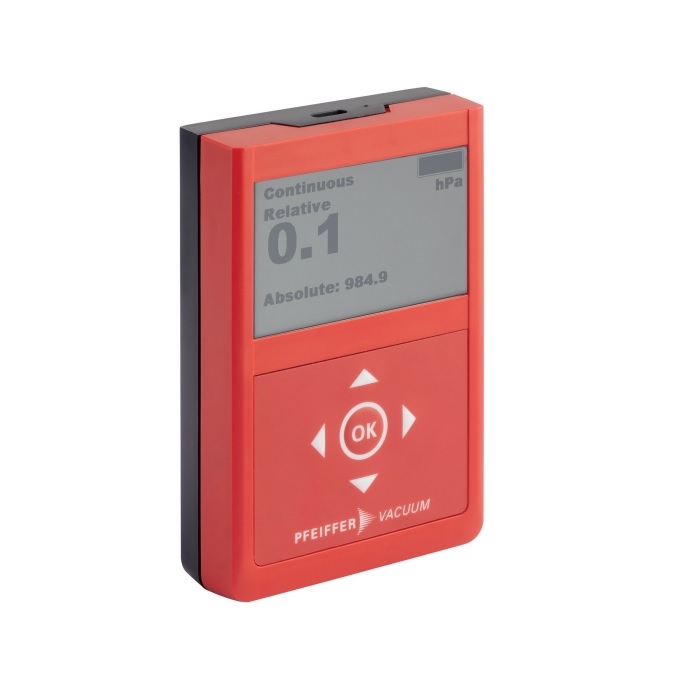

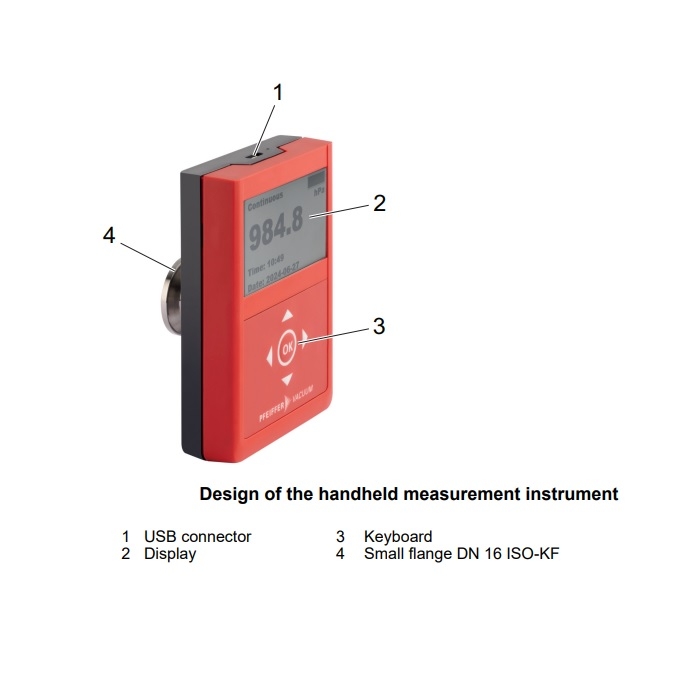

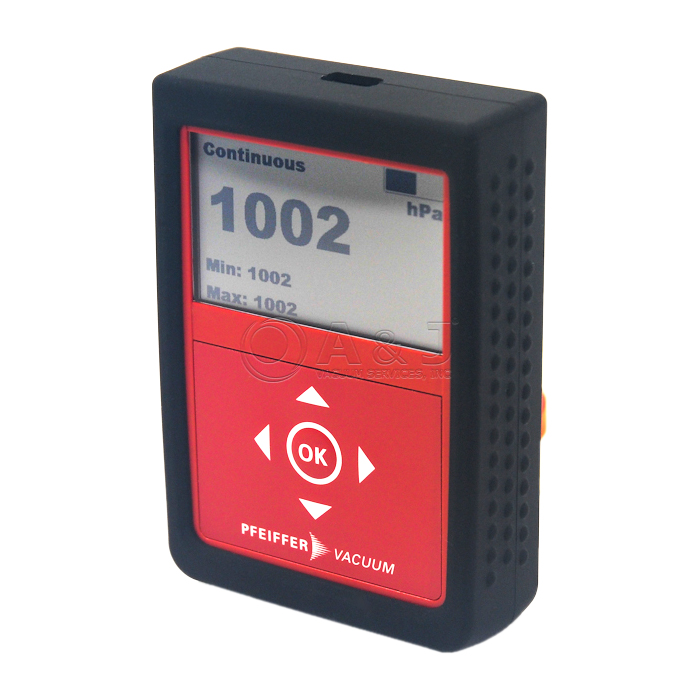

Pfeiffer TPG 202 Pirani/Piezo Portable Vacuum Gauge, Manual Measurement Unit, KF 16, PT G28 202, TPG 202
Product Features - Pfeiffer TPG 202 Pirani/Piezo Portable Vacuum Gauge:
- Measurement Range from 5 x 10^[-4] mbar to 1000 hPa
- Battery-Operated Manual Measurement Unit
- Portable Pirani/Piezo Mode Vacuum Gauge
- Utilizes Either AC or Battery Operation
- Built-In Data Logging Function
- Battery Arrives Included
- Data Readout by PC
Accesories Kit w/Power Supply, Battery, USB Cable and Software can be Ordered Seperately, P/N PT 350 102-T PN
A Brief Overview of Pressure Measurement Within a Vacuum System:
Pressure measurement is the analysis of an applied force by a fluid (liquid or gas) on a surface. Pressure is typically measured in units of force per unit of surface area - the Pascal (Pa) is the SI unit commonly used to measure pressure, equivalent to one newton per square meter. Alternatively, pounds per square inch (psi) can also be used as a unit of pressure measurement. In determining the degree of pressure within a vacuum or system, most gauges measure pressure relative to atmospheric pressure, a level referred to as the zero point. Vacuum gauges are especially precise instruments, as they are able to detect the slightest deviations from a state of total vacuum. Any reading greater than total vacuum in such a state constitutes a form of pressure, and thus a vacuum gauge uses total vacuum as the zero point. A vacuum gauge utilizes an absolute scale, whereby the lever begins at the zero point (a complete absence of pressure within a state of total vacuum) and can only change in one direction (as pressure increases).
Differential pressure is likewise an important concept in the field of pressure measurement, as it conveys the difference in pressure between two points or systems. Often times, this refers to the difference between standard atmospheric pressure (typically about 100 kPa at sea level) and the pressure within a vacuum environment. Differential pressure analyses are commonly used in industrial processing systems, and are incorporated within many of the products sold and serviced by A&J Vacuum Services. Differential pressure gauges feature two inlet ports, each connected to one of the two environments where pressure is to be monitored. By monitoring the pressure differential between a near-vacuum environment and one featuring standard atmospheric pressure, the user/operator may obtain an accurate pressure reading by subtracting the difference in total pressure between the two systems.

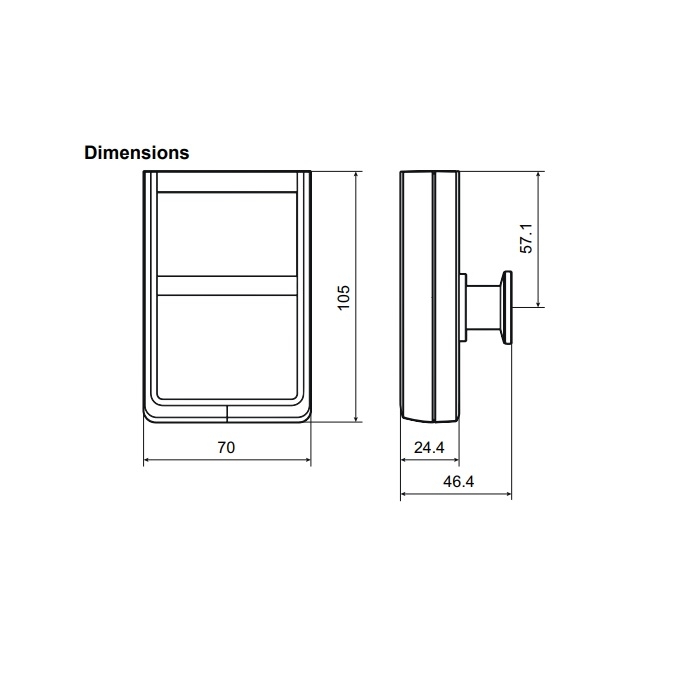

Controller Dimensions:
A&J Vacuum services and repairs Pfeiffer Vacuum TPG 202 Pirani/Piezo Handheld Gauge Controllers, along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum TPG 201 Pirani Manual Measurement Unit. PT G28 201-B / PTG28201B
Product Features - TPG 201 Pirani Manual Measurement Unit & Gauge Controller:
- Measurement Range From 5 x 10^[-4] mbar to 1000 hPa
- Battery-Operated Manual Measurement Unit
- Portable Pirani Vacuum Gauge
- AC or Battery Operation
- Data Logging Function
- Data Readout by PC
- Battery Arrives Included
A Brief Overview of Pressure Measurement Within a Vacuum System:
Pressure measurement is the analysis of an applied force by a fluid (liquid or gas) on a surface. Pressure is typically measured in units of force per unit of surface area - the Pascal (Pa) is the SI unit commonly used to measure pressure, equivalent to one newton per square meter. Alternatively, pounds per square inch (psi) can also be used as a unit of pressure measurement. In determining the degree of pressure within a vacuum or system, most gauges measure pressure relative to atmospheric pressure, a level referred to as the zero point. Vacuum gauges are especially precise instruments, as they are able to detect the slightest deviations from a state of total vacuum. Any reading greater than total vacuum in such a state constitutes a form of pressure, and thus a vacuum gauge uses total vacuum as the zero point. A vacuum gauge utilizes an absolute scale, whereby the lever begins at the zero point (a complete absence of pressure within a state of total vacuum) and can only change in one direction (as pressure increases).
Differential pressure is likewise an important concept in the field of pressure measurement, as it conveys the difference in pressure between two points or systems. Often times, this refers to the difference between standard atmospheric pressure (typically about 100 kPa at sea level) and the pressure within a vacuum environment. Differential pressure analyses are commonly used in industrial processing systems, and are incorporated within many of the products sold and serviced by A&J Vacuum Services. Differential pressure gauges feature two inlet ports, each connected to one of the two environments where pressure is to be monitored. By monitoring the pressure differential between a near-vacuum environment and one featuring standard atmospheric pressure, the user/operator may obtain an accurate pressure reading by subtracting the difference in total pressure between the two systems.
Controller Dimensions:
A&J Vacuum services and repairs Pfeiffer Vacuum TPG 201 Pirani Manual Measurement, Handheld Gauge Controllers, along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
