- Input Voltages: 100 – 240 VAC
- Power Consumption Max.: 125 VA
- IP20 Protection Degree
- TPS 111 Power Supply Pack
Shopping Cart ( )

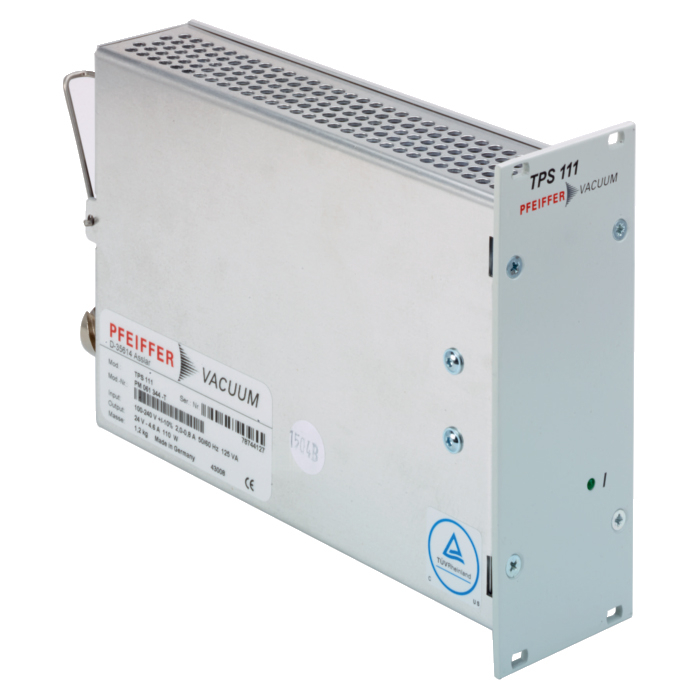

Pfeiffer TPS 111, Power Supply Pack 19", Plug-In Unit 3HU, 2000018762 / PM 061 344 -T / PM061344-T
Condition:
New
Item#:PN06204
Mfr Part#:2000018762 / PM 061 344 -T / PM061344-T
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer TPS 111, Power Supply Pack 19", Plug-In Unit 3HU, 2000018762 / PM 061 344 -T / PM061344-T
Pfeiffer TPS 111 Features:
- Input voltages: 100 – 240 V AC

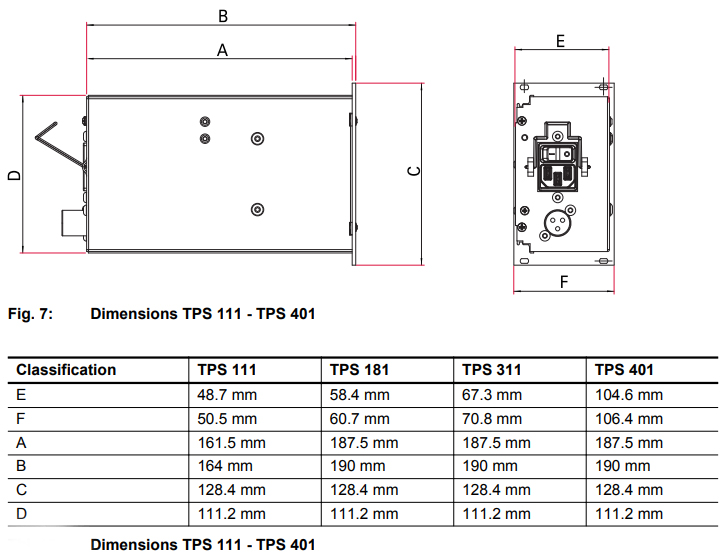

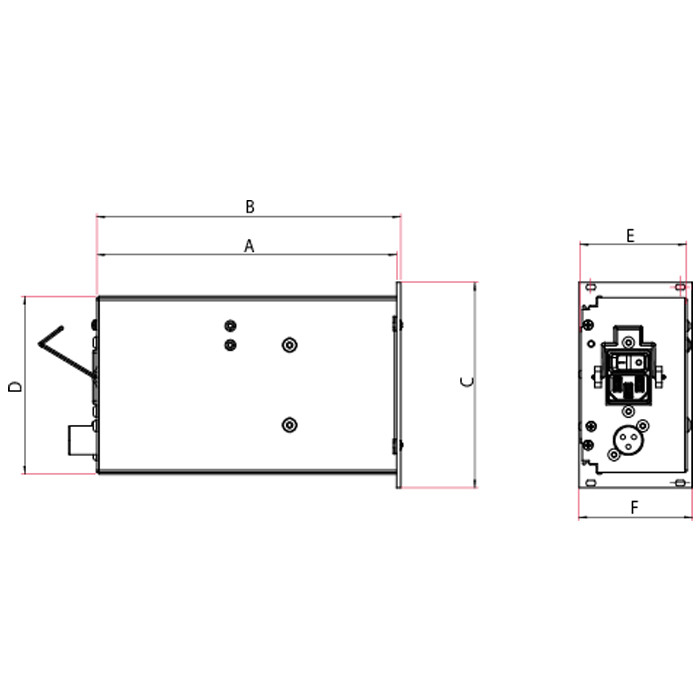

- Power supply in form of a 3HU 19" plug in unit with the front panel
- Suited for HiPace 10/60/80 and SplitFlow 50
- Supplies up to 16 DigiLine gauges
Pfeiffer TPS 111 / PM 061 344 -T Overview:
The power supply pack is in the form of a 3HU 19" plug-in unit, with the front panel. It is suited for HiPace 10/60/80 and SplitFlow 50.

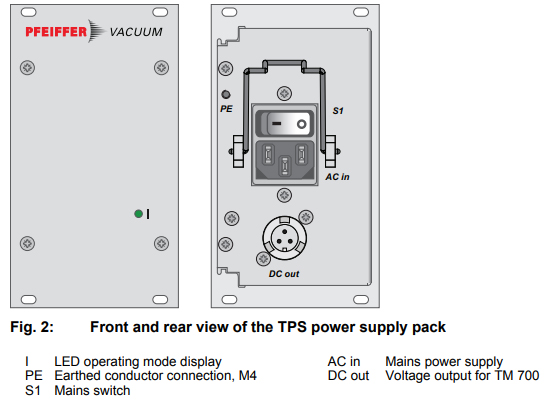

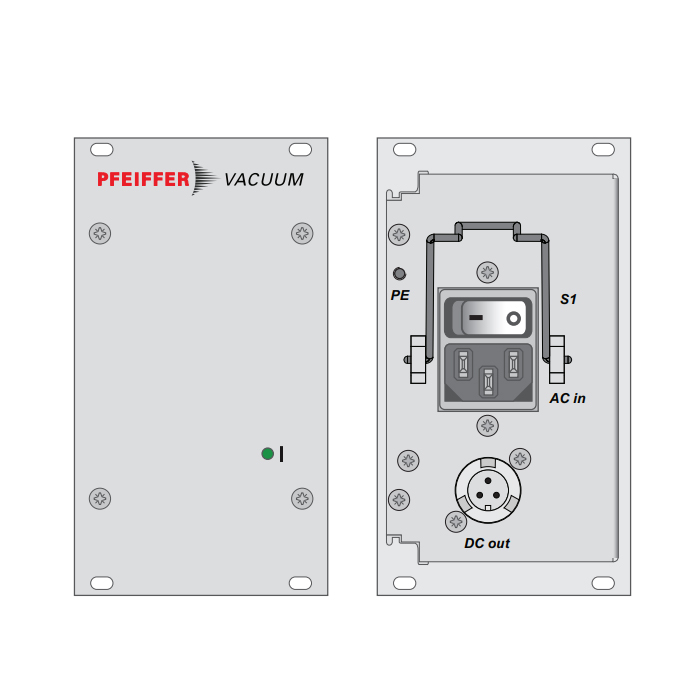

Type TPS power supply packs are used to provide the voltage supply to the drive electronics of the Pfeiffer Vacuum vacuum pumps. The output voltage "DC out" is safely isolated from the mains input voltage "AC in"
HiPace stands for a complete line of compact yet powerful turbopumps featuring pumping speeds that range from 10 – 2,000 liters per second. These models afford cost-effective yet flexible installation in any orientation. The proven bearing system affords unrivaled dependability. And their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility and higher gas throughputs, as well as very good compression for light gases.
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 Neo, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer TPS 111, Power Supply Pack 19", Plug-In Unit 3HU, 2000018762 / PM 061 344 -T / PM061344-T

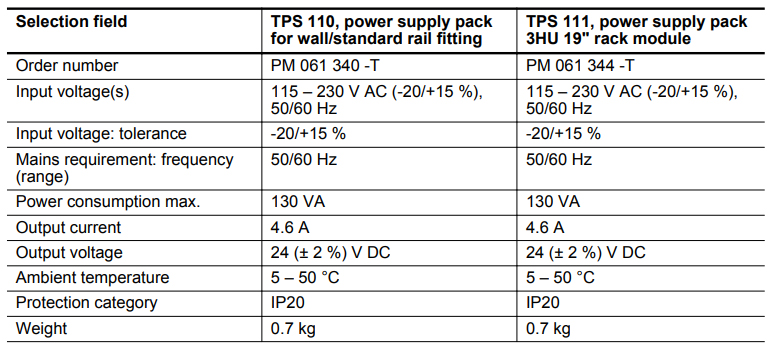

Pfeiffer TPS 111 Technical Data:
- Ambient temperature: 5 – 50 °C | 41 – 122 °F | 278.15 – 323.15 K
- External power supply pack: TPS 111
- Input voltage(s): 100 – 240 V AC (±10 %), 50/60 Hz
- Mains frequency compatibility: 50/60 Hz
- Motor for region: Worldwide
- Output current: 4.6 A
- Output voltages: DC: 24 V (±2 %)
- Power consumption max.: 125 VA
- Protection degree: IP20
- Weight approx.: 0.7 kg | 1.54 lb
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 Neo, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
