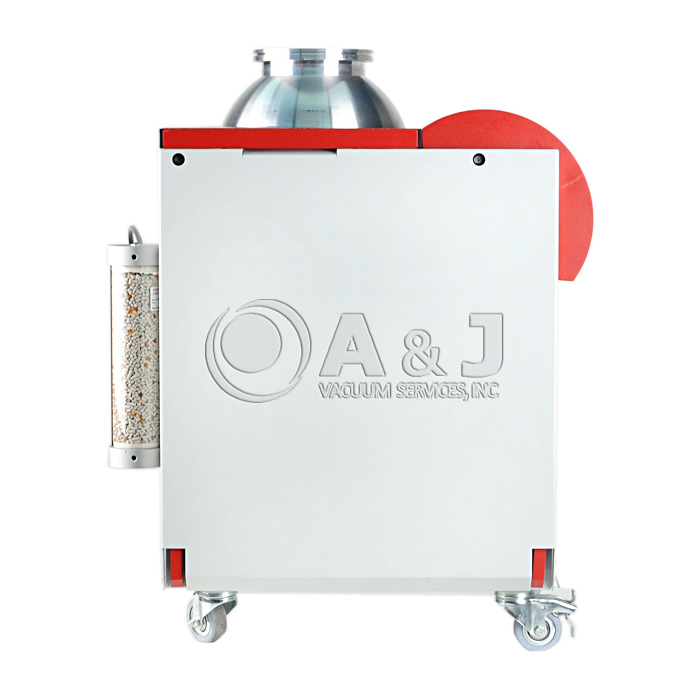

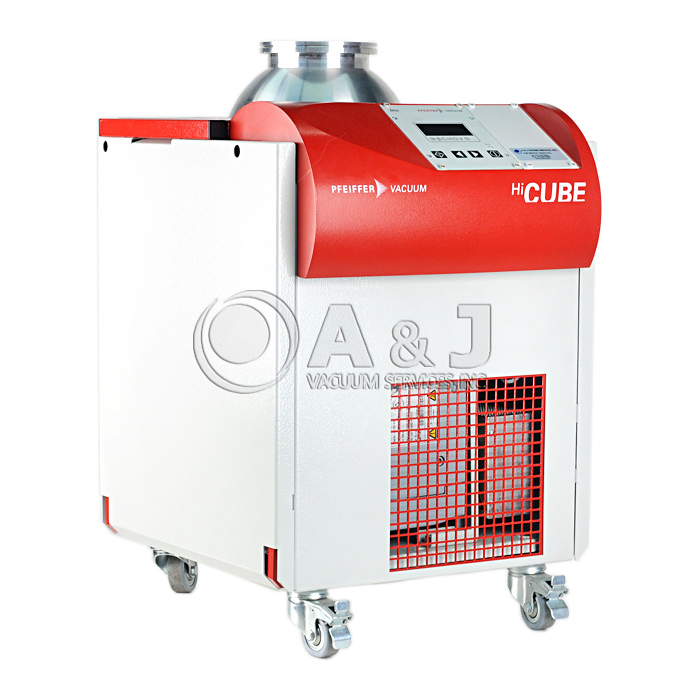

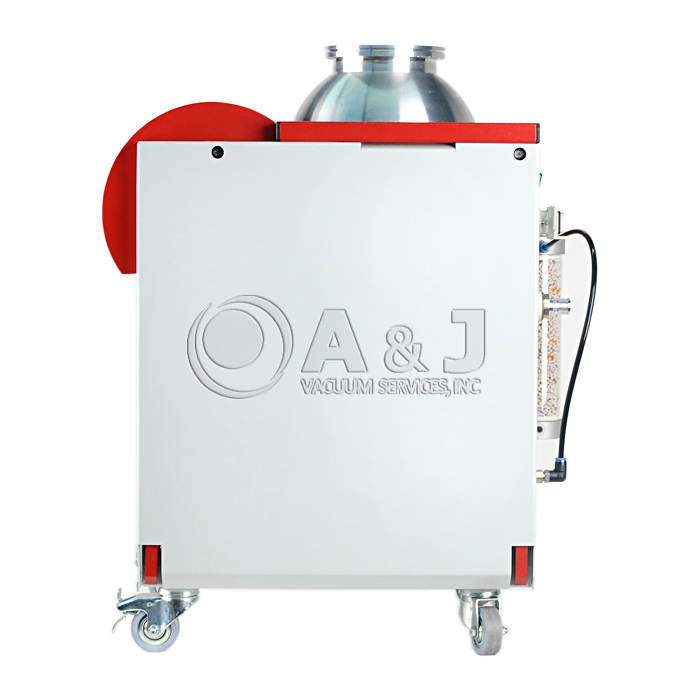

Pfeiffer Vacuum HiCube 400 Classic Turbo Pump Station, MVP 070, DN 100 ISO-K, 110 V AC, PMS2524000
Condition:
Remanufactured
Call us for Availability
Item#:PN15370
Mfr Part#:PMS2524000
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Overview:
The HiCube Classic pumping stations are suitable for all high and ultra high vacuum applications and are available with dry and oil-sealed backing pumps having pumping speeds of up to 685 l/s. Available for selection as backing pumps are dry diaphragm pumps with pumping speeds of up to 4.3 m3 / h or rotary vane pumps with pumping speeds of up to 6 m3 / h.
With the modular design principle of the new HiCube series, the never-before-seen versatility will satisfy the widest range of requirements in the pumping speed range from 35 l/s to 685 l/s. Fully configured and ready for immediate employment, the turbopump and backing pump offer a perfect interplay: “Plug and Play” the way you want it.
The HiCube mobile turbopumping station sets new standards: It offers a convincing combination that consists of a new turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. Pfeiffer Vacuum offers you the new HiCube in Pro and Classic versions; available with dry or oil-sealed backing pump and an ultimate pressure of up to 5 • 10-10 mbar. Available as a version within the HiCube series that offers especially compact dimensions is the HiCube Eco with pumping speeds of 35 l/s to 67 l/s.
- Combination pumping station incorporating turbopump and backing pump for all high vacuum applications
- Air-cooled and ready for operation with HiPace 400 and MVP 070-3 dry diaphragm backing pump
Unit is NEW and comes with a FULL 12-MONTH WARRANTY!
This item is non-returnable/non-refundable
Technical Data:
Backing Pump: MVP 070
Cooling Method: Air
Inlet Flange: DN 100 ISO-K
Outlet Flange: G 1/2" ; G 1/4"
Mains Requirement: 110 V AC, 50/60 Hz
Backing Pump Pumping Speed (at 50 Hz): 3.8 m3/h
Turbo Pump Pumping Speed: 355 l/s
Ultimate Pressure: < 1 x 10-7 hPa
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
